Hettich Optimat 3D face frame hinge is a concealed cabinet hinge designed as a two-piece compact hinge with an integrated silent system, so doors self-close smoothly and stay hidden on finished face-frame work. This hinge is specified as a 3/4 inch overlay component, so it suits layouts where the door overlays the face frame by that amount in typical kitchen or shop-built cabinets. With a 105 degree opening angle, the hinge lets doors swing wide enough for access to the cabinet interior while controlling the motion. The product is part of Hettich Optimat clip-on hinges, which means the hinge cup and mounting side work together as a compact assembly in cabinet projects. As a concealed cabinet hinge, it keeps hardware out of sight on the exterior, which supports clean fronts on residential or commercial casework.
This Optimat self-close 3/4 inch overlay hinge works as a face frame solution with dowel mounting noted in the description, so the cup side uses drilling for secure seating in the door. The hinge cup diameter is 1-3/8 inch (35mm), which matches a standard cup bore size widely used in cabinet shops. Cup distance is specified as 1/8 inch (3mm), aligning the bore position from the door edge for consistent overlay layout. Minimum drilling depth for the cup is 7/16 inch (11mm), giving the installer a clear target for boring depth so the cup sits correctly without breaking through the door face. These combined dimensions keep the hinge seated accurately in the door while maintaining the designed overlay and motion.
This Optimat self-close 3/4 inch overlay hinge is categorized as a concealed face frame hinge, so it is oriented to cabinets built with a face frame rather than full-overlay frameless cases. As a concealed cabinet hinge, it places the working geometry inside the cabinet while leaving only the door and minimal gaps visible on the front. The hinge is part of a system offered in 3 overlays, giving a family of options for different frame-to-door relationships across the same project line. Its 105 degree opening capability supports day-to-day use on base or wall cabinets where doors must open far enough to clear interior hardware or storage while staying within a controlled swing range. The designation as a self-close hinge with integrated silent system makes it suitable for residential kitchens, baths, or other areas where repeated opening and closing benefit from smooth motion.
Optimat is specified as a 6-way adjustable face frame hinge, which gives the installer several adjustment axes to refine the final fit after mounting. Side adjustment under 1 inch overlay is listed as plus or minus 1.3mm via cam, and over 1 inch overlay as plus or minus 1.5mm via cam, so the hinge lets the door shift sideways slightly to balance gaps between adjacent fronts. Depth adjustment of plus 2.6mm via cam allows tuning of the door in and out relative to the face frame, which helps correct for minor drilling variance and brings doors flush with neighboring units. Height adjustment of plus or minus 1.4mm via cam lets the door move up or down on the cabinet, which is especially useful for aligning multiple doors across a run. Together these 6-way adjustments translate directly into reduced rework and faster final alignment once doors are hung. The product is stated to meet and exceed the minimum requirements of ANSI/BHMA A156.9 standard, tying hinge performance to an established cabinet hardware benchmark for consistent function in normal cabinet service.

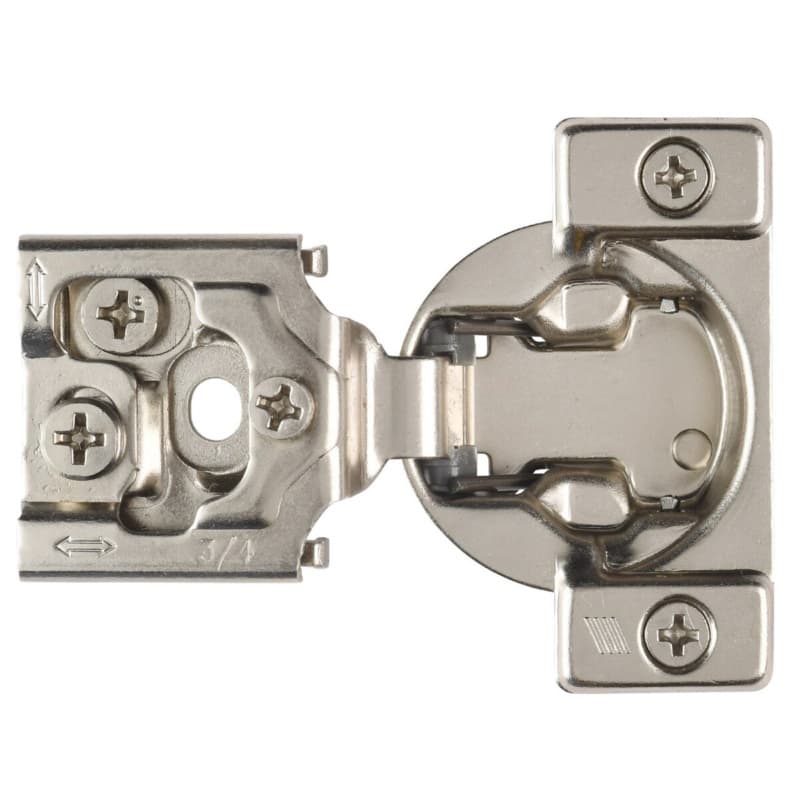

The Hettich 9295567 is an Optimat clip-on concealed cabinet hinge for face frames, so it mounts inside the cabinet and keeps the hardware hidden on the front.
This Optimat self-close hinge is described as a 3/4 inch overlay hinge, so it suits doors designed to overlay the face frame by that amount in typical layouts.
The hinge is rated for door thickness up to 3/4 inch (19mm), matching common cabinet door stock so the 35mm cup can be drilled securely.
The hinge uses a 35mm cup diameter, 3mm cup distance from the edge, and 11mm minimum drilling depth, guiding boring setup for consistent seating.
The 6 way adjustable face frame design provides side, depth, and height cam adjustments, allowing fine tuning of gaps, flushness, and alignment after doors are hung.
This Optimat hinge meets and exceeds ANSI/BHMA A156.9 minimum requirements, aligning its performance and function with a recognized cabinet hardware standard.
This Hettich Optimat self-close 3/4 inch overlay hinge combines a concealed face frame design, 35mm cup, and 105 degree opening angle with 6 way cam adjustment, so it supports accurate door alignment on standard cabinet doors. The integrated silent system delivers self-close action described in the product name while keeping motion controlled for daily use. With defined cup diameter, distance, and drilling depth, along with ANSI/BHMA A156.9 performance reference, this hinge provides clear technical parameters for planning face frame cabinet runs using the Hettich 9295567 configuration.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each |  HT9299081 Mfr# 9299081 | Hettich Optimat 3D Clip-On Hinge 105° to 85° Angle Reduction Clip 9299081 |
