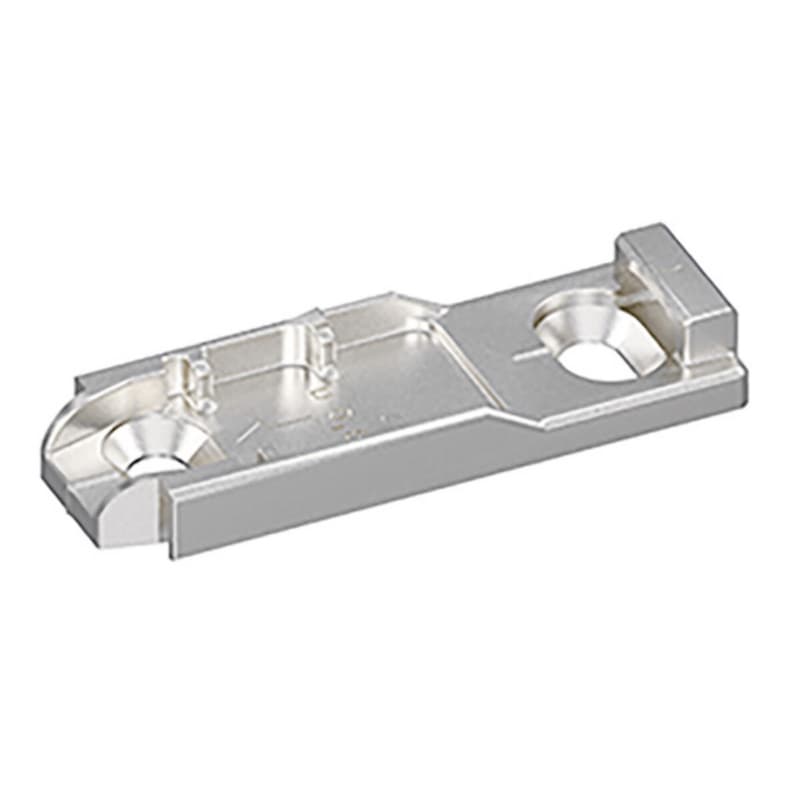

Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm

Linear Mounting Plate 3mm For Precise Hinge Mounting

Linear mounting plate 3mm from Hettich America Corporation is a hinge mounting plate designed for Sensys and Intermat hinges, so it gives a defined interface between the hinge and the cabinet, keeping door positioning consistent across multiple openings. The plate distance of 3.0 mm sets the hinge setback from the face frame, which helps maintain an even reveal when used across a run of cabinets. Quality classification under EN 15570, Level 3 means the plate is built to match hinges tested to this standard, supporting long-term door function in typical cabinet use. The plate is made from die-cast zinc and nickel plated, so it offers a solid mounting base with a corrosion-resistant surface suited to normal interior woodworking environments.

Key Details Of This Hettich Hinge Mounting Plate

• The linear mounting plate design establishes a stable mounting platform for the hinge arm, which helps doors swing on a repeatable path and reduces the chance of alignment drift over time.
• The distance of 3.0 mm from the mounting surface positions the hinge geometry correctly, which supports consistent overlay or reveal when matching adjacent cabinet doors in the same run.
• The oblong hole height adjustment in the plate allows vertical fine-tuning of the hinge position, which lets the installer shift the door up or down for clean alignment with neighboring fronts.
• The adjustment range of plus 1.6 mm / minus 1.6 mm in height offers a helpful window for minor corrections, which is useful when cabinet faces or doors vary slightly from nominal dimensions.
• The 20 x 32 mm hole line pattern matches a standard drilling layout, which speeds shop or site work by allowing the plate to be positioned directly on a pre-drilled line without extra layout steps.
• The installation for screwing on uses direct screw attachment to the cabinet, which provides a firm mechanical connection between the plate and the face frame or mounting surface.

Screw-On Mounting Plate Setup And Adjustment

This screw-on hinge mounting plate is designed for installation using screws through the plate into the cabinet, so it can be fixed securely to face frame or panel material prepared to the 20 x 32 mm hole line. The oblong hole height adjustment integrated into the plate works with the plus 1.6 mm / minus 1.6 mm adjustment range, allowing the installed hinge to shift vertically for fine-tuning. Because the distance is 3.0 mm, the assembled hinge position follows the intended Sensys or Intermat geometry, which helps maintain consistent reveals along stacked or side-by-side doors once alignment is dialed in.

Using This Face Frame Baseplate In Cabinet Work

Where This Hinge Mounting Plate Is Applied

This face frame baseplate with 3.0 mm distance is used as the mounting interface for Sensys and Intermat hinges, so it fits into cabinet builds using these hinge families. The plate works with hole line 20 x 32 mm layouts, which are common in systemized cabinet production and shop drilling setups, allowing the same line to be used for multiple cabinets. Because it is a hinge mounting plate in the Hinge Base Plates category, it forms part of the overall door hanging hardware, tying the hinge arm back to the cabinet structure. The die-cast zinc nickel-plated construction provides a rigid, corrosion-resistant base, which supports hinge performance where cabinets are exposed to normal indoor humidity or frequent door operation.

Why Its Adjustment And Rating Support Consistent Results

The oblong hole height adjustment working over a plus 1.6 mm / minus 1.6 mm range allows installers to shift door height without redrilling, which reduces rework when aligning multiple doors along a bank of cabinets. This adjustment travels within the plate itself, so the hinge arm position can be tuned while the primary screw locations remain fixed, helping keep the mounting solid while changes are made. Quality classification under EN 15570, Level 3 aligns the plate with hinges designed for that standard, which supports dependable performance where doors may be opened frequently over the life of the installation. By using a screw-on installation method with the defined 3.0 mm distance, the plate sets a repeatable reference for Sensys and Intermat hinges, which helps shops and installers achieve uniform door gaps from cabinet to cabinet.

Common Questions About This Hettich Mounting Plate

Select This Mounting Plate For Sensys And Intermat

The Hettich linear mounting plate with 3.0 mm distance, die-cast zinc nickel-plated body, and oblong hole height adjustment provides a defined base for Sensys and Intermat hinges on a 20 x 32 mm hole line. For cabinet runs where consistent reveals and practical on-site vertical adjustment are important, this screw-on hinge mounting plate offers the fixed geometry and fine-tuning range needed to dial in door alignment efficiently.
