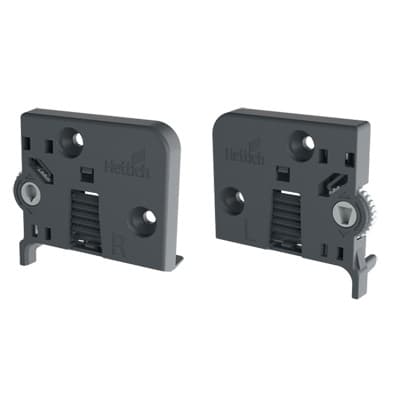

The Quadro 4D V6 Left-Hand Tilt Adjuster is a plastic adjustment component made for wooden drawers running on Hettich's Quadro 4D V6 undermount system. It corrects tilt in the installed drawer front so the gap lines read even across the cabinet face without pulling the drawer out or resetting the slides.
After a wooden drawer box is hung on Quadro 4D V6 runners, the installed front can sit slightly tilted — one corner forward, one corner back — even when height and side adjustments are dialed in. That tilt shows as an uneven reveal or a shadow line that doesn't match the adjacent doors. The tilt adjuster corrects that specific axis of error without disturbing the other adjustment dimensions. It's the part to reach for when the drawer face is plumb side-to-side and level top-to-bottom but still reads as cocked in the opening.
This adjuster is a Quadro 4D V6 component and fits that series only. Quadro runners, locking devices, and adjustment hardware are version-specific within the Hettich family — V6 parts are not interchangeable with earlier Quadro versions or with Hettich's other runner families. The plastic body is the correct material for this role; it seats within the system's mechanism rather than bearing load directly. Because this is the left-hand member, one of these pairs with one right-hand tilt adjuster to cover both sides of a single drawer.
Cabinet shops running Hettich Quadro 4D V6 undermount systems will recognize this as a standard finish-out component — part of getting drawer fronts true before the job leaves the shop or before a service call closes. Designers specifying Quadro installations and contractors troubleshooting an installed kitchen where drawer fronts won't sit square will find this the targeted fix rather than a slide replacement. It is a single left-hand unit; order quantity to match the number of drawers that need tilt correction on the left side.
No. Quadro adjustment hardware is version-specific. This part is made for the Quadro 4D V6 series; earlier Quadro versions use their own matched components.
This listing is the left-hand adjuster only. If both sides of the drawer need tilt correction, add the matching right-hand tilt adjuster to your order. If only one side is out, a single adjuster may be enough.
No. Tilt adjustment corrects the front-to-back cant of the drawer face. Height and side adjustments are separate dimensions on the Quadro 4D system and are handled by other components in the locking device and runner assembly.
The Quadro 4D V6 system is used in both frameless and face-frame installations, but confirm your specific cabinet construction is supported by the runner version you have installed before ordering accessories.
A single misaligned drawer front can hold up a punch-list or a service call. Having the correct left-hand Quadro 4D V6 tilt adjuster on hand means that adjustment gets made cleanly, without improvising or waiting on a replacement slide.
Sold In: 1 Each
