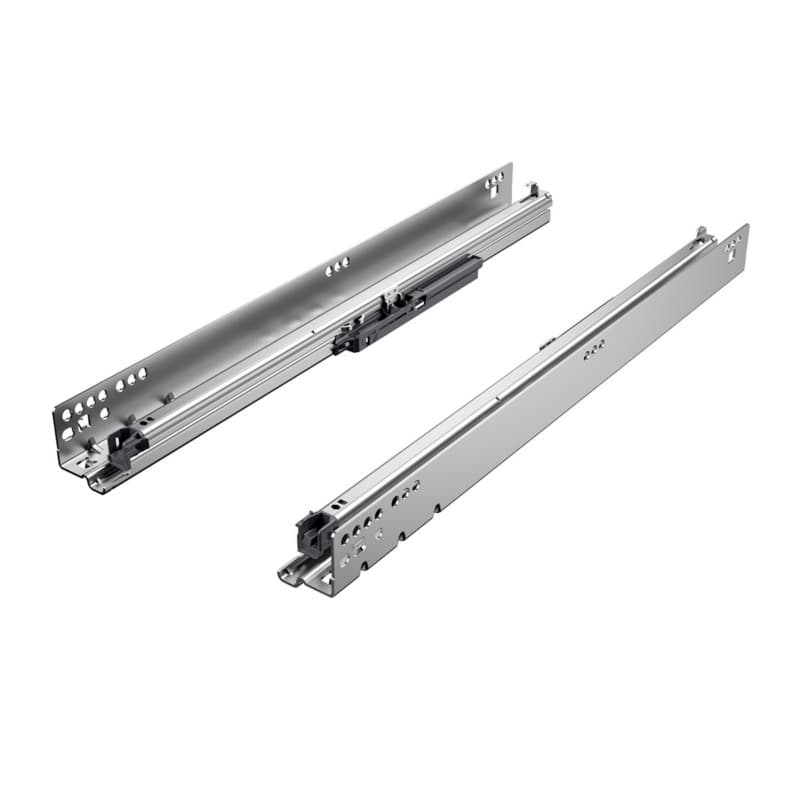

Hettich Quadro V6 12" Soft-Close Full Extension Undermount Drawer Slides, Ball Bearing Left hand Zinc - 9304295
Description
Hettich Quadro V6 12 Inch Drawer Slide Performance
Hettich Quadro V6 12 inch drawer slide defines a full extension undermount solution that keeps the hardware out of sight while allowing the drawer to travel its complete length, which maximizes usable space and supports clean cabinet design. The soft-close function combines silent and soft closing, so the drawer runs in smoothly at the end of travel, which helps reduce slamming in everyday use. The undermount layout positions the slide beneath the drawer, which supports a clean interior and simplifies cleaning around the drawer sides on finished work. This slide is designed for drawer side thickness of 1/2 inch, or 13 mm, and 5/8 inch, or 16 mm, which aligns with common cabinet drawer construction in many shops. The galvanized steel construction is suitable for rooms exposed to moisture, which adds confidence when installing in kitchens, baths, or other higher humidity areas where metal protection matters over time.
Key Quadro V6 Undermount Slide Advantages
- The full extension undermount design allows the drawer to travel the complete slide length, which lets installers deliver full access to stored contents and supports efficient use of cabinet depth on 12 inch drawers.
- The soft-close function with silent and soft closing brings the drawer to a gentle stop, which reduces impact on fronts and joinery during repeated use and supports a more controlled, quieter close in residential or commercial projects.
- Slide on installation with catches provides a defined engagement method between drawer and slide, which helps streamline mounting during production runs and supports repeatable drawer removal and reattachment on site.
- Tool-less height adjustment at the slide connection allows vertical fine-tuning of the drawer front without separate tools, which can speed up final reveal alignment and reduce time spent correcting minor fit issues during installation.
- Side adjustment up to plus or minus 2 mm with 2D front fixing clips gives lateral front correction range, which supports dialing in even gaps between fronts across a run of cabinets after the slides and boxes are already installed.
- The slide is load rated up to 90 lbs dynamic and 100 lbs static on a 21 inch length, per ANSI / BHMA 156.9 grade 1, which indicates robust performance expectations for typical drawer loads and reinforces its use in demanding cabinetry environments.
Installation And Adjustment Details For This Slide
The slide on installation method with catches defines how the drawer box connects to the undermount slide, which helps streamline the workflow by letting the drawer be positioned onto the hardware in a repeatable way. Tool-less height adjustment built into the system enables installers to shift the drawer vertically without reaching for hand tools, which can save time when dialing in reveals across multiple drawers. Side adjustment up to plus or minus 2 mm is provided through 2D front fixing clips, giving lateral control at the front, which helps correct small alignment issues between adjacent fronts after the cabinet is already anchored. The load capacity ratings up to 90 lbs dynamic, and 100 lbs static on a 21 inch slide, under ANSI / BHMA 156.9 grade 1, describe the performance envelope this system is built to handle, which guides where it fits into drawer size and content decisions.
Using This Full Extension Undermount Slide In Projects
Where This Hettich Quadro V6 Slide Fits Best
This full extension undermount drawer slide serves projects where a concealed runner with complete drawer travel is needed, which is typical in higher-end kitchen, bath, and built-in cabinetry where aesthetics and access both matter. The design works with drawer side thicknesses of 1/2 inch, or 13 mm, and 5/8 inch, or 16 mm, which aligns with many production and custom drawer box standards, letting shops apply consistent construction methods. Galvanized steel material is suitable for rooms exposed to moisture, so the slide can be used where humidity is present, such as near sinks or in bath installations, without departing from the stated material capability. The ANSI / BHMA 156.9 grade 1 rating signals that this slide meets defined performance criteria, which matters when specifying hardware to align with architectural standards or commercial expectations for long-term use.
How Quadro Adjustments Support Consistent Results
The combination of slide on installation with catches and tool-less height adjustment allows installers to mount drawers quickly, then fine-tune vertical position in place, which can reduce rework when multiple drawers must share even reveals. Side adjustment up to plus or minus 2 mm through 2D front fixing clips adds lateral control at the front, which supports bringing fronts into alignment along a run even if cabinet or box tolerances vary slightly. The system is described as optionally upgradeable with Push to open Silent, a convenient opening mechanism combined with silent and soft closing, which means the same slide platform can be configured for touch-activated opening while retaining the smooth close behavior, useful when designing handleless fronts. Load capacity up to 90 lbs dynamic and 100 lbs static on a 21 inch slide, tested to ANSI / BHMA 156.9 grade 1, underpins using this runner in drawers expected to hold substantial weight, which supports planning for storage of heavier items within the stated performance range.
Common Questions About This Hettich Quadro Slide
What type of drawer slide is the 9304295 model?
The 9304295 model is a Hettich Quadro V6 full extension undermount drawer slide with soft-close function, so the runner stays hidden under the drawer while providing complete travel and controlled closing.
What drawer side thicknesses does this slide support?
This Hettich Quadro V6 slide is designed for 1/2 inch, or 13 mm, and 5/8 inch, or 16 mm drawer side thickness, which matches common drawer box materials in many cabinet shops.
How does the height and side adjustment work on this slide?
This Quadro V6 system offers tool-less height adjustment and side adjustment up to plus or minus 2 mm using 2D front fixing clips, which supports precise front alignment after drawer installation.
What load capacity does the Quadro V6 12 inch drawer slide support?
The Quadro V6 slide is rated up to 90 lbs dynamic and 100 lbs static on a 21 inch length, under ANSI / BHMA 156.9 grade 1, guiding appropriate use in weight-bearing drawer applications.
Is this undermount slide suitable for humid room installations?
This drawer slide is made from galvanized steel and is described as suitable for rooms exposed to moisture, supporting use in environments such as kitchens and baths.
Can this slide be upgraded for touch opening fronts?
This Hettich Quadro V6 slide is optionally upgradeable with Push to open Silent, enabling a convenient opening mechanism combined with silent and soft closing for handleless front designs.
Selecting This Slide For Your Next Installation
The Hettich Quadro V6 12 inch drawer slide combines full extension undermount construction, soft-close performance, and on-slide adjustment, which helps align fit, access, and closing behavior in one runner system. The ability to work with 1/2 inch and 5/8 inch drawer side thickness supports integration into established drawer construction methods. Galvanized steel material described as suitable for rooms exposed to moisture broadens where this slide can be applied in cabinetry. Adding optional Push to open Silent capability on the same platform supports design flexibility for touch-opening fronts. For projects that call for a concealed undermount drawer slide with ANSI / BHMA 156.9 grade 1 performance, this 9304295 model from Wurth Baer Supply delivers a defined set of capabilities ready to specify.
