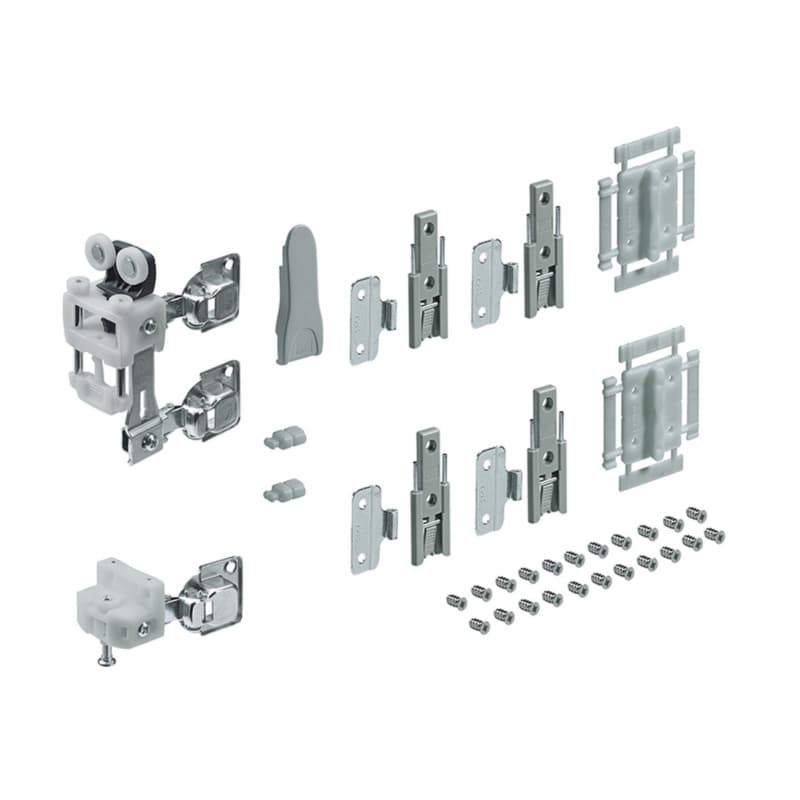

600mm Left-Hand WingLine L Set for 25Kg Maximum Door Wing

600mm WingLine L Left-Hand Set For Folding Doors

600mm left-hand WingLine L set is a Hettich fitting set designed for one folding sliding door with two wings, so it handles a complete left-hand folding door run in a single coordinated system. The running component in this set is rated for a maximum door wing weight of 25 kg, which defines the door size and material choices that stay within the intended load. Running and guide components in this WingLine L set are specified without a spring assisted self closing feature, so door movement remains manually controlled from fully open to fully closed. Both the running and guide components provide a tool-less fast installation function, which speeds up fitting work and helps keep onsite adjustments focused on alignment rather than basic attachment. The set is manufactured by Hettich America Corporation under part number 9237880, giving a consistent reference when matching this hardware to job drawings or replacement needs.

Key WingLine L Details For Door Projects

• The set of fittings is specified for one folding sliding door with 2 wings, so a single set covers the full hardware requirement for a left-hand 2-wing door run.
• Running component rated for 25 kg maximum door wing weight defines the upper load limit for each wing, helping match door materials and dimensions to the hardware capability.
• Running and guide components are stated as without self closing feature, giving predictable manual door operation without spring pull-in forces at the end of travel.
• Running and guide components feature a tool-less fast installation function, which simplifies mounting on site and helps keep installation time under control during cabinet or closet work.
• The web description specifies two door dampers in the set, so closing movement is cushioned by integrated damping rather than relying only on door material contact.
• Cabinet body hinges without self closing feature must be used with this fitting set, keeping door behavior consistent from cabinet body hinge through to folding and sliding movement.

Installation And Hinge Setup For WingLine L

This WingLine L folding sliding door hardware set is specified as a left-hand 600mm solution, which defines the handing and typical opening width for planning carcass and overlay relationships. The running and guide components use a tool-less fast installation function, so these elements snap or lock into place without separate tools during that step of the process. The set is designed for use only in combination with Pull to move and Push to move, which means the opening and closing action links to those Hettich operating concepts on the cabinet. Cabinet body hinges without self closing feature must be used, so the pivot points at the cabinet side do not introduce extra pull-in forces that would conflict with the non-self-closing running gear.

Using This WingLine L Set In Real Projects

Where The Folding Sliding Door Set Is Applied

This WingLine L fitting set is described as a set of fittings for one folding sliding door with two wings, so it suits cabinet or similar furniture applications that require a 2-wing folding front on a 600mm left-hand run. The set belongs to the Builders Hardware and Sliding Door Hardware product class, placing it directly in the category used for furniture and cabinet sliding fronts rather than general construction openings. The SAP description specifies WL L SET LH W/O SPRING FOR 25KG MAX DR, which identifies it as the left-hand variant without spring for doors within the 25 kg door wing range. The web description notes that cabinet body hinges without self closing feature must be used, which ties this set to non-self-closing hinge layouts on the cabinet side. A recommendation is given for Sensys 8675 with an opening angle of 110 degrees, so that hinge type and angle can be aligned with the folding and sliding travel needed at the front.

Details That Support Consistent Door Movement

The running component in this Hettich WingLine L set is described as 25 kg max without self closing feature, so it carries the door weight within its rating while leaving closing speed and timing determined by the user. Both the running and guide components are stated as without spring assisted self closing feature, which removes snap-in behavior at the end positions and supports controlled, gentle closing combined with damping. Two door dampers are part of the set description, so closing movement is cushioned as the wings reach their end positions, reducing impact on the cabinet structure. Running and guide components with tool-less fast installation function simplify mounting of the moving elements, which can improve consistency because each unit is located by the system design rather than improvised fastening points. The description notes that the set can only be used in combination with Pull to move and Push to move, so the operation concept is defined and the hardware movement is coordinated with those opening methods on the finished cabinet run.

Common Questions About The WingLine L 600mm Set

Selecting This WingLine L Set For Your Job

The 600mm left-hand WingLine L set for 25 kg maximum door wing gives a defined hardware solution for one folding sliding door with two wings, tying together running, guiding, damping, and hinge behavior for a coordinated front. Using a running component rated at 25 kg per wing and components without spring assisted self closing feature, it supports controlled manual operation within its specified load range. For projects built around Pull to move and Push to move concepts and cabinet body hinges without self closing feature, this Hettich America Corporation set provides a matching hardware configuration under part number 9237880.
