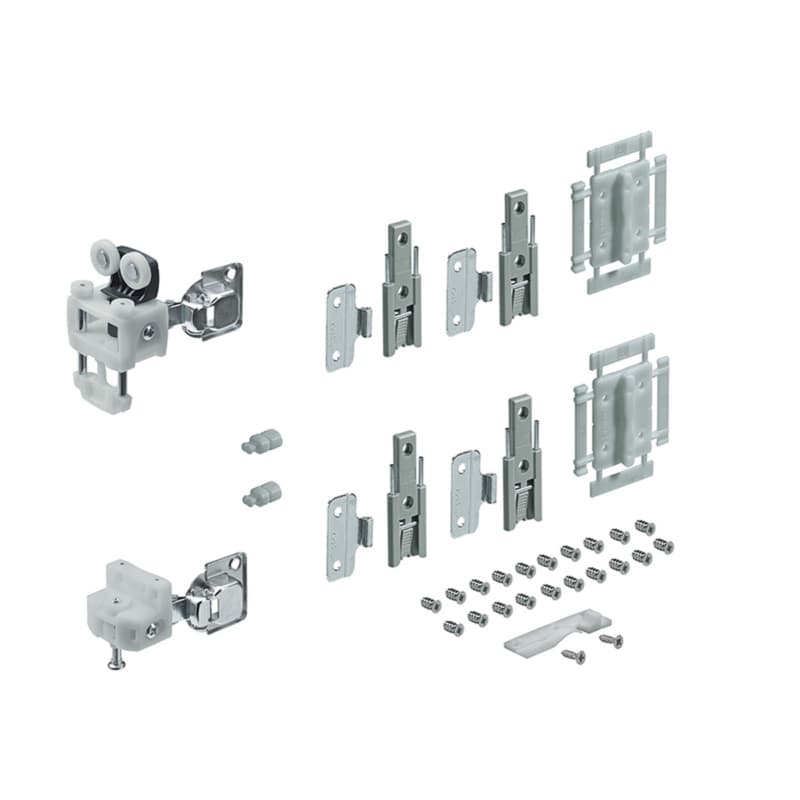

600mm Right Hand WingLine L Set with Self Closing/Bottom Guide for 12Kg Maximum Door Panel

600mm WingLine L Set For Folding Sliding Doors

600mm right hand WingLine L set gives installers a defined hardware solution for a folding sliding door with 2 wings and a maximum 12 kg door panel, so the running gear is matched to the application capacity. This WingLine L folding sliding door hardware is specified for one folding sliding door with 2 wings, which focuses the set on single opening runs in cabinets or similar carcasses. The set of fittings can only be used in combination with Pull to move and Push to move, so it is designed to work within those specific Hettich operating systems. Running and guide components without spring assisted self closing feature keep the movement controlled by the Pull to move or Push to move function instead of a separate spring device. Running and guide components with tool-less fast installation function support quicker mounting and adjustment on site.

Key WingLine L Hardware Details For Projects

• The set of fittings contains all the parts required for 1 folding sliding door with 2 wings, so one product covers a complete 2-wing door run in a cabinet or similar installation.
• The specified 12 kg maximum door panel rating defines the load envelope for the door panel, which helps align panel material choice and size to the hardware capacity.
• The set can only be used in combination with Pull to move and Push to move, which focuses use on compatible Hettich operating concepts for consistent door movement.
• Running and guide components without spring assisted self closing feature keep the action defined by the user or the Pull to move and Push to move system, which simplifies expectations about how the door behaves.
• Running and guide components with tool-less fast installation function reduce tool work directly at the running and guide elements, which is useful in repetitive cabinet runs or tight working spaces.

Folding Sliding Door Installation And Setup Points

This Hettich WingLine L set is configured as a right hand system, which determines on which side of the opening the 2-wing folding sliding door will run. One running component in the set is rated 25 kg maximum without self closing feature, so the running gear capacity exceeds the 12 kg maximum door panel specification and supports smooth guidance within that limit. The guide component is supplied without self closing feature, which means the guiding function focuses on tracking rather than active closing. Cabinet body hinges without self closing feature must be used with this set of fittings, so the hinge selection aligns with the running and guide components for a consistent non-self-closing movement. The recommendation Sensys 8675 opening angle 110 degrees gives a specific cabinet body hinge option that matches the motion requirements.

Using WingLine L Set In Cabinet Projects

Where This WingLine L Folding Set Fits Best

The WingLine L set of fittings is intended for one folding sliding door with 2 wings, positioning it for cabinet or closet fronts that benefit from a bi-fold action combined with lateral sliding. The 600mm configuration targets installations where the opening width aligns with this system size, so planning can follow a defined hardware length. The 12 kg maximum door panel detail suits lightweight to medium cabinet fronts within that load range, directing material and thickness choices during design. The right hand configuration orients the folding and sliding motion to one side of the opening, which matters where adjacent walls, panels, or internal layouts define the preferred parking side.

Details That Support Repeatable WingLine L Results

The running component rated 25 kg maximum without self closing feature gives the running carriage extra capacity over the 12 kg door panel specification, which supports durable tracking under the stated panel weight. The guide component without self closing feature works together with the running component to provide guided movement while leaving the closing behavior to the Pull to move and Push to move system. Four folding door hinges in the set define the hinge count for the 2-wing configuration, which helps keep alignment consistent across installations using the same layout. Two positioning aids and centre hinges contribute to accurate placement of the wings relative to the running and guide components, which supports clean gaps and repeatable folding geometry. One running component cover and two door dampers manage the finished appearance and the end-of-travel cushioning of the door motion, giving the assembly a controlled stop. Fixing screws in the set provide fastening matched to the components, keeping the running and guide elements, hinges, and aids anchored according to the system design.

Common Questions About Hettich WingLine L Set Use

Select This WingLine L Set For Defined Folding Runs

The Hettich 600mm right hand WingLine L set with self closing/bottom guide for a 12 kg maximum door panel provides a coordinated group of components for one folding sliding door with 2 wings. The defined use with Pull to move and Push to move, the specified load limit, and the tool-less fast installation function on running and guide components give installers a clear hardware choice for right hand folding sliding cabinet fronts designed around this system. For projects matching these parameters, this WingLine L set offers a focused way to execute the folding sliding door run.
