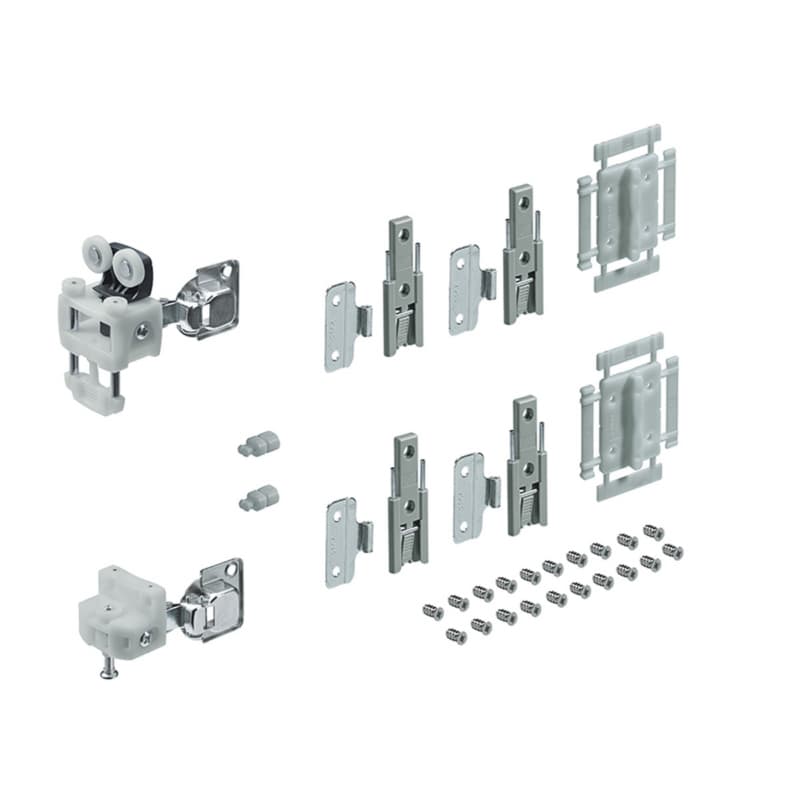

600mm Right-Hand WingLine L Set for 12Kg Maximum Door Panel

600mm Right-Hand WingLine L Set For Folding Doors

600mm right-hand WingLine L set is a Hettich America Corporation fitting set designed for one folding sliding door with two wings, so a cabinet or closet run can use a compact, right-hand folding action instead of a wide swinging door. The set is classified as sliding door hardware in the builders hardware category, which places it in the same workflow as other upper sliding and running systems used on casework. This specific set is configured for doors with a maximum door panel weight of 12 kg, helping installers match the hardware safely to lighter door constructions. The manufacturer part number 9237904 identifies this exact right-hand WingLine L configuration, which matters when matching it to project drawings or repeat orders. Because the set is right-hand, it suits layouts where the folding door stack and movement are planned to the right side of the opening.

WingLine L Features That Support Door Layouts

• The set of fittings is designed for one folding sliding door with two wings, so a single opening can be closed with a two-panel fold that keeps door travel tight to the cabinet front.
• The set of fittings can only be used in combination with Pull to move and Push to move, which defines the motion concept and helps designers coordinate user operation across matching cabinets.
• Running and guide components are specified without spring assisted self closing, so door movement is driven by the user and can be controlled where automatic closing is not desired.
• Running and guide components feature a tool-less fast installation function, which helps speed up fitting on multiple units and reduces handling time on the jobsite or in the shop.
• Cabinet body hinges used with this set must be without self closing, aligning hinge behavior with the non-self-closing running gear so the fold and slide motion stays consistent.

Right-Hand WingLine L Installation And Fitting

The WingLine L set contains running and guide components designed for right-hand installation, so the folding door wings move and stack toward the right side of the opening during operation. One running component in the set is rated for a maximum of 25 kg without self closing, which provides a robust running element for the guided movement of the folding assembly while the overall configuration is tied to the 12 kg maximum door panel specification. The running and guide components are equipped with a tool-less fast installation function, allowing the installer to snap or click components into position without separate tool steps during mounting. Fixing screws are specified for this set, tying the fastening approach directly to the designed mounting points on the running and guide parts and the door or cabinet structure.

Using WingLine L Set In Cabinet Projects

Where This WingLine L Folding Set Is Applied

This WingLine L set is intended for a folding sliding door with two wings, so it works in cabinet or furniture projects that benefit from doors folding away from the opening rather than swinging out. The builders hardware and sliding door hardware classification aligns it with upper running systems used in casework, wardrobes, or similar installations where doors need to travel along a guided path. The right-hand configuration means it fits layouts where the folding wing stack is planned to park on the right, which can be important around walls, appliances, or adjacent doors. With a maximum door panel rating of 12 kg, the set serves light to medium-weight door constructions where designers select panel materials and sizes that fall within that range. One running component is rated to 25 kg without self closing, providing a strong guided track element for the overall folding system in typical cabinet-scale applications. Door dampers are part of the set, giving the folding sliding door a cushioned movement near the end of travel when installed according to the running and guide design. The presence of a running component cover contributes to a more finished running area, which can matter in exposed cabinet interiors or open-shelf arrangements.

Details That Help Achieve Repeatable Folding Motion

The running and guide components are explicitly defined as without spring assisted self closing, so the door movement follows the user input across the full travel rather than snapping shut, which helps with controlled positioning in multi-door runs. Because cabinet body hinges used with this fitting set must be without self closing, the hinge action remains neutral, and the fold-and-slide sequence stays predictable across repeated openings. The set of fittings is designed exclusively for use with Pull to move and Push to move, so projects using those motion concepts benefit from a coordinated action between the user pull or push and the sliding fold mechanism. Four folding door hinges in the set establish the main articulation points between the two door wings, supporting a consistent folding line across similar cabinets in a bank. Centre hinges are also part of the configuration, tying the folding geometry together so both wings track properly along the running and guide components. Two positioning aids in the set help align elements during fitting, supporting repeatable door gaps and folding clearances in production or multi-unit work. The tool-less fast installation function on the running and guide components reduces adjustment steps after mounting, helping installers reproduce the same running behavior from cabinet to cabinet. Two door dampers in the set work with the non-self-closing design to manage closing speed at the end of travel, which can support quieter operation in residential or commercial interiors using this sliding door hardware.

Common Questions About WingLine L Right-Hand Set

Selecting This WingLine L Set For Your Project

The 600mm right-hand WingLine L set from Hettich America Corporation ties a defined 12 kg maximum door panel rating to a folding sliding door with two wings, giving you a clear hardware choice for lighter, right-hand cabinet fronts. Its use with Pull to move and Push to move, together with running and guide components without spring assisted self closing, supports projects that require a user-driven, controlled folding motion. When a job calls for sliding door hardware that pairs tool-less fast installation with non-self-closing running gear and non-self-closing cabinet body hinges, this WingLine L configuration provides a targeted option to match those design and installation requirements.
