WingLine L Folding Sliding Door Set Function

WingLine L folding sliding door set is designed for a single right hand folding sliding door with two wings, so it supports a typical two-panel door layout on one opening. The set is rated for a 12 kg maximum running component, which defines the load it is engineered to carry during movement. This weight rating keeps the running action within the hardware design limits for smoother motion. The set is supplied as a right hand configuration, so it suits layouts where the folding sliding door is planned to open to the right side in the cabinet or enclosure. This Hettich America Corporation set is part of sliding door hardware, giving installers a matched group of parts for this specific folding sliding application.

Key Folding Sliding Set Details For Projects

• The set of fittings contains all the parts required for one folding sliding door with two wings, which simplifies selecting components for a single opening where two connected door panels are needed.
• The Web Description states the set of fittings can be used for a standard folding door application without opening mechanism, so it suits straightforward folding doors where no extra opening aid is planned.
• The same set of fittings can be used in combination with Pull to move Silent Running component with spring assisted self closing feature, giving projects the option to pair this hardware with a Pull to move system for enhanced closing behavior.
• The running component is described as having a fast installation function, which supports quicker fitting of the main moving element during cabinet or closet construction.
• The Web Description notes that cabinet body hinges with self closing feature must be used with this set of fittings, aligning the door behavior at the cabinet body with the running component function for consistent closing action.

Installation And Fit Details For WingLine L

The product description specifies that the running component has a self closing feature, so once correctly fitted it draws the folding door into its end position without manual pushing over the full travel. This behavior supports tidy door alignment at the closed position. The set description also states that order profiles separately, which means the guide or track profiles are treated as separate components in the system design, allowing installers to match profiles to their specific cabinet layout. Cabinet body hinges with self closing feature must be used with this set, so the hinge choice is defined and the closing behavior at the cabinet carcass is coordinated with the self closing running component. The recommendation Sensys 8645i opening angle 110 degrees provides a suggested hinge model and opening angle that suits this folding sliding arrangement.

Using This WingLine L 12 Kg Self Closing Set

Where This Hettich WingLine L Set Is Applied

The Web Description identifies this hardware as a set of fittings for one folding sliding door with two wings, so it is applied on a single opening where two linked door leaves fold and slide. The product sits in sliding door hardware, positioning it for applications such as cabinets or similar enclosures that use folding sliding fronts rather than hinged-only doors. The right hand configuration targets layouts where the folding pair parks and operates from the right side, guiding how the cabinet is planned. Because the set can be used for a standard folding door application without opening mechanism, it fits jobs that only need basic folding and sliding without any additional trigger device. The option to use it in combination with Pull to move Silent Running component with spring assisted self closing feature also supports projects that want a more controlled and assisted door movement path.

Why These Fittings Support Consistent Door Movement

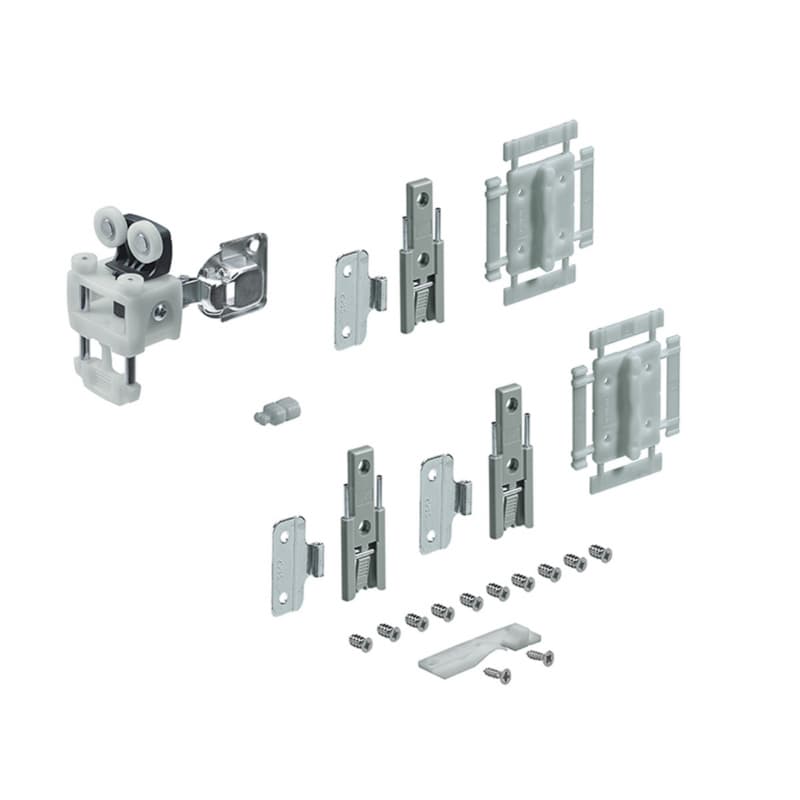

The running component with self closing feature and fast installation function gives the installer a moving element that both speeds mounting and delivers automatic closing at the end of travel, which helps panels return to a consistent parked position. The 12 kg maximum rating on the running component ties the door design to a defined load, supporting predictable running performance when the door weight is matched to that rating. The set description lists three folding door hinges, two positioning aids, center hinges, one door damper, and one stay open element, so the core functional parts for folding motion, alignment, damping, and hold-open are grouped for this system. The requirement that cabinet body hinges with self closing feature must be used with this set connects the wing hinges at the cabinet to the sliding hardware behavior, so door closing forces are shared between the body hinges and the running component. The recommendation of Sensys 8645i opening angle 110 degrees aligns the hinge opening range with the folding sliding motion requirements, supporting repeatable clearances and swing paths on similar installations.

Common WingLine L 12 Kg Set Questions Answered

Selecting This WingLine L Set For Your Project

This Hettich 9237902 WingLine L 12 kg right hand set groups the running component, folding door hinges, positioning aids, center hinges, door damper, and stay open element for a two-wing folding sliding door. The ability to use it either as a standard folding door setup or in combination with Pull to move Silent Running component with spring assisted self closing feature gives flexibility across different cabinet designs. When the project calls for a right hand folding sliding door with coordinated self closing behavior and defined 12 kg running capacity, this set provides the matched sliding door hardware to support that layout.
