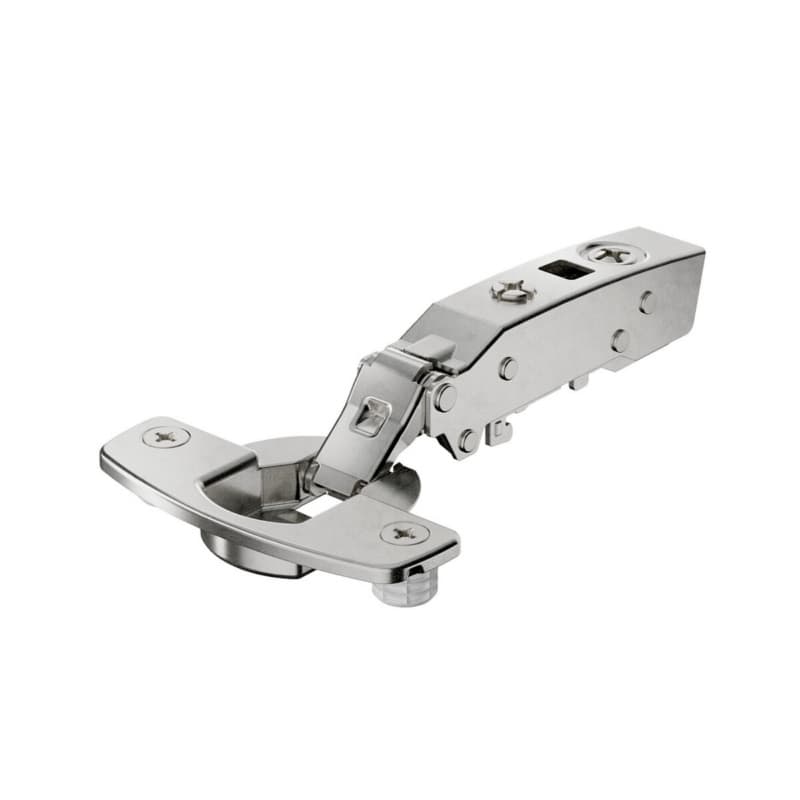

Sensys 110 Degree Thin Door Hinge For Cabinets

Sensys 110 degree thin door hinge gives a concealed, European style hinge solution for cabinet doors in the 10 to 19 mm thickness range, so thin doors can be hung with a standard long-arm layout. This hinge is part of the Sensys 8646 series, which provides a coordinated geometry that matches other Sensys components in a shop or on a run of cabinets. The full overlay design lets the door cover the cabinet side or face frame edge, creating a clean front with consistent reveals. A self closing feature pulls the door shut at the end of travel, which helps doors sit closed without constant readjustment during everyday use. Steel nickel plated construction provides a hard-wearing hinge body, so the hinge resists surface wear in normal cabinet environments. Quality classification under EN 15570, Level 3, indicates the hinge is built for demanding cabinet door use with tested performance over time.

Key Sensys 8646 Thin Door Hinge Advantages

• The 10 to 19 mm door thickness range allows this hinge to work on thinner cabinet doors, which matters when building modern, lightweight fronts that still need stable hinging.
• Self closing without Silent System means the hinge pulls the door shut reliably, which keeps doors parked in the closed position while avoiding extra soft-close components.
• Full overlay configuration lets the door cover the cabinet side or face frame, which supports tight, consistent reveals across a line of cabinets using the same hinge geometry.
• The 110 degree opening angle gives wide access into the cabinet interior, which helps during installation and later adjustments or hardware changes inside the case.
• Steel nickel plated material provides a durable hinge surface, which helps the hinge resist corrosion and visible wear in typical kitchen or shop conditions.
• Quality classification under EN 15570, Level 3, signals a hinge tested to a recognized standard, which matters when specifying hardware for frequently used cabinet doors.

Mounting And Adjustment Details For Installers

This Sensys 110 degree thin door hinge uses a dowel mounting style, which speeds production setups where doors are bored for press-in hinges. The drilling pattern TB 45 x 9.5 mm defines the cup hole position, so boring machines and jigs can be set once and repeated across a batch of doors. Height adjustment occurs at the mounting plate, letting the installer fine-tune vertical door position after the hinge is fixed to the door. This adjustment at the plate helps align reveals along a cabinet run without redrilling door cups. The hinge is designed as a concealed cabinet hinge, so only the door and cabinet faces remain visible once installed, supporting a clean European hinge look.

Using This Hettich Sensys Self Close Hinge

Where This Concealed Hinge Is Typically Used

This Hettich Sensys self close hinge is a concealed cabinet hinge from the Sensys 8646 series, so it fits naturally into European style cabinet construction using long arm hinges. The full overlay design suits cabinet layouts where the door covers the cabinet side or a face frame edge, helping produce seamless fronts on kitchen, bath, or shop cabinets using that overlay scheme. The 10 to 19 mm thin door capability means it is appropriate for lighter fronts, such as narrow profile or engineered panels, while still maintaining the same hinge line as thicker doors in the same project. As a steel nickel plated hinge, it works well in typical cabinet environments where metal hardware is exposed to regular door cycling and contact.

Why These Hinge Details Support Consistent Results

The 110 degree opening angle on this Sensys 110 degree thin door hinge provides ample swing for door operation, which simplifies installing interior fittings and reduces interference between open doors on adjacent cabinets. Self closing without Silent System keeps the mechanism focused on pulling the door firmly shut, which maintains a repeatable closing point and reduces the need for constant hinge tweaks over the life of the cabinet. The dowel hinge design with drilling pattern TB 45 x 9.5 mm supports repeatable boring operations, so doors from different batches line up predictably on the cabinet. Height adjustment at the mounting plate gives a straightforward way to bring door tops and bottoms into line after hanging, improving the finished appearance of the run without altering cup locations. EN 15570, Level 3 classification ties these details to a tested performance level, supporting long-term hinge function under regular cabinet use.

Common Questions About Sensys 110 Degree Thin Hinges

Select This Hinge For Thin Full Overlay Doors

The Sensys 110 degree thin door hinge, Hettich part 9094391, combines full overlay geometry with a 10 to 19 mm door thickness range, so thin cabinet fronts can share the same layout as standard doors. Self closing action, dowel mounting, and height adjustment at the mounting plate support consistent alignment and repeatable installation across projects. For cabinet work calling for a concealed, European style hinge in the Sensys 8646 series, this steel nickel plated hinge offers a focused solution for thin full overlay doors.
