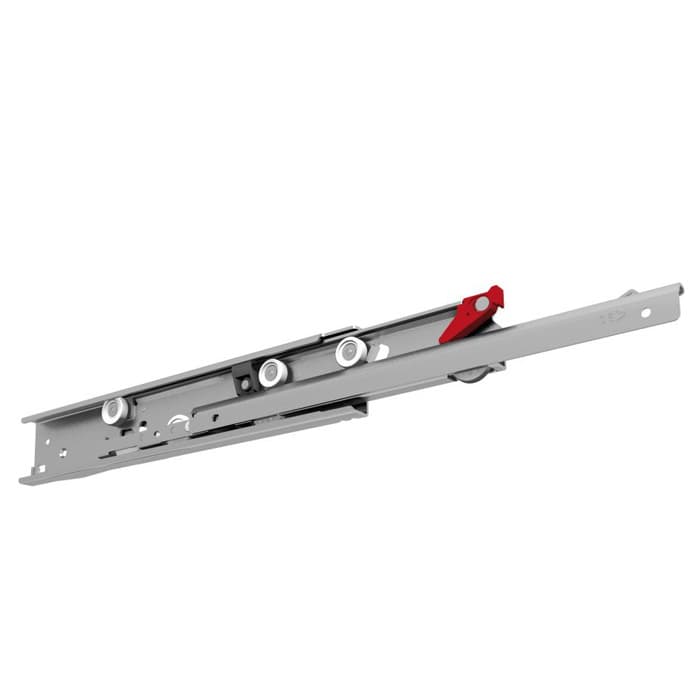

Fulterer 16" Full Extension Self-Close Ball Bearing Drawer Slide, Unhanded Side Mount Zinc - 7110

Fulterer 16 Inch Full Extension Drawer Slide Use

Fulterer 16 inch full extension drawer slide describes a 16 inch long, full extension side mount slide that lets the drawer travel the full length of the member, giving clear access to stored items in typical cabinet depths. The 75 lb rated slide supports drawers in applications where moderate loads are common, keeping motion controlled for everyday residential or light commercial use. Its self closing action pulls the drawer fully shut over the last portion of travel, helping drawers stay closed in regular use. The ball bearing design guides the movement along steel members, providing smoother travel than simple friction slides in cabinet and furniture projects. Being unhanded allows the same slide design to work on either side of the drawer, simplifying layout and reducing part differentiation on the job. The side mount configuration positions the slide on the drawer sides, which aligns with common cabinet construction and simplifies straight runs on casework.

Key Slide Details That Support Cabinet Work

• The mounting space of 1/2 inch plus 1/32, minus 0 inch clearance on each side defines the required side gap, guiding cabinet and drawer box sizing so the slide tracks freely without binding.
• A height of 1-1/2 inches sets the vertical footprint of each member, helping plan drawer side heights and stack clearances in multi-drawer cabinets where vertical spacing is tight.
• The slide is made from 1.2mm cold rolled steel, providing a consistent formed section that resists typical drawer loads while keeping profiles slim for modern cabinet constructions.
• The epoxy coated finish on the steel creates a smooth running surface for the ball bearings and wheel, which supports long-term movement quality in normal indoor woodworking environments.
• The cream white color of the epoxy coated slide blends with many light cabinet interiors, which keeps hardware visually unobtrusive when drawers are open in finished installations.
• ANSI/BIFMA Grade 1 testing and approval indicates the slide has been evaluated to a recognized performance standard, giving confidence in service life for projects that reference these requirements.

Installation, Mounting Space, And Hole Layout

The specified mounting space of 1/2 inch plus 1/32, minus 0 inch clearance each side sets a precise target for case opening and drawer width, which supports smooth movement and reduces binding during operation. Side mounting aligns the slide with the cabinet interior walls, giving straightforward screw runs and clear reference edges in both face-frame and European style applications. Bottom and side mounting holes on the drawer member let the installer fasten through either face or underside of the drawer side, adapting to different drawer box constructions while keeping the slide secure. The 32mm mounting holes on the cabinet member match common system hole spacing, which speeds layout in line-bored European style cases. Together, these details turn the slide into a predictable component within standard cabinet construction methods.

How This Drawer Slide Fits Real Projects

Use In Face-Frame And European Cabinets

The slide is described as working perfectly in face-frame and European applications, so it suits both framed cabinets and frameless system-32 style casework. In framed cabinets, the side mount configuration lets the member tie into the interior wall behind the frame, helping keep drawer alignment consistent from front to back. In European frameless cases, the 32mm mounting holes on the cabinet member line up with system-32 drilling, so the slide positions accurately without custom layout. Quiet wheel language in the description, combined with the polymer wheel detail, indicates the wheel material is chosen to run quietly against the track, which supports low-noise operation in kitchen, bath, or office environments. The full extension action brings the drawer contents entirely out of the cabinet depth, allowing hardware, tools, or stored items to be accessed without reaching past the face of the case.

Details That Support Smooth, Repeatable Drawer Action

The polymer wheel for a lifetime of quiet, trouble-free performance works with the ball bearing design to guide the drawer with reduced friction, which helps drawers feel consistent across a bank of cabinets. The epoxy coated steel members create a matching smooth track surface for both bearings and wheel, so the slide glides more evenly over time in normal use. Single captive design keeps the drawer member engaged with the cabinet member during operation, which maintains alignment through the stroke. Positive stop prevents the drawer from over-traveling past the intended extension, protecting both the slide and the cabinet front from impact. The lift out disconnect with self closing action allows the drawer box to be removed when lifted at the disconnect point and then re-engaged, which aids shop assembly, finishing, and future service work while still giving the self closing pull at the end of travel. Together, these verified elements help maintain smooth movement and consistent close on every cycle.

Common Questions About This Fulterer 7110 Slide

Selecting This Slide For Your Next Cabinet Run

The Fulterer 16 inch full extension drawer slide pairs a 75 lb rating with ball bearing guidance and self closing action, fitting many everyday cabinet drawers that need smooth travel and a consistent close. Its defined mounting space and 1-1/2 inch height simplify planning cabinet openings, drawer box sizes, and stacked layouts in both face-frame and European style work. With 32mm mounting holes on the cabinet member and both bottom and side mounting holes on the drawer member, the slide fits neatly into system-32 shops and traditional builds alike. For projects built around cold rolled steel hardware with an epoxy coated cream white finish, this 7110 side mount option from Wurth Baer Supply aligns well with standard woodworking workflows.
