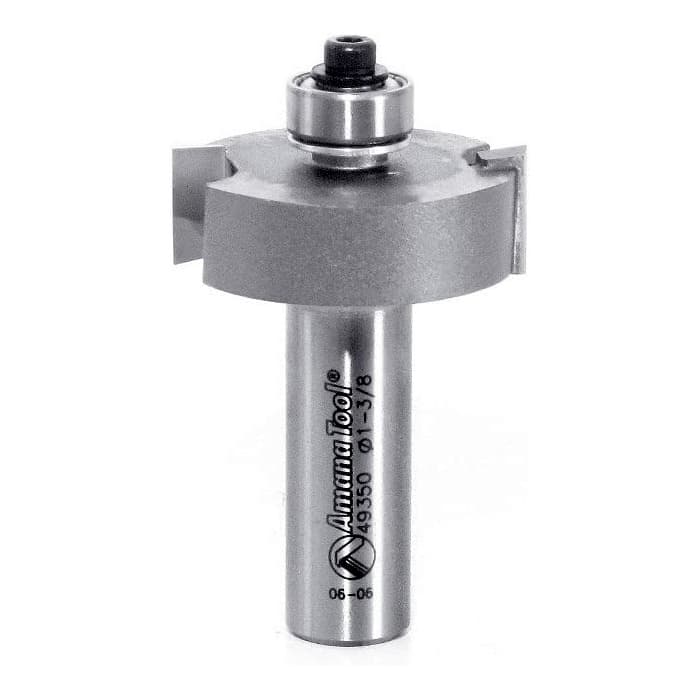

1-3/8 x 2-3/8 Multi-Rabbet Bit For Cabinet Joinery

1-3/8 x 2-3/8 multi-rabbet bit describes an Amana Tool router bit designed for cabinet joinery, so installers and shop users can cut consistent rabbets using one dedicated cutter. The 1-3/8 inch diameter working edge engages a wide surface area, which helps track smoothly along cabinet parts or panels during rabbet cuts. A 1/2 inch shank locks solidly into routers that accept this size, supporting stable cuts when you are working on larger case parts. The 2-3/8 inch overall length keeps the cutting height and shank compact, which helps control vibration on handheld and table mounted setups. As a 2-flute design, the bit provides two cutting edges, so material is sheared in alternating passes for smoother rabbet surfaces ready for further assembly steps. Being part of Wurth Baer Supply cabinet joinery offerings, this bit aligns with typical professional shop workflows.

Rabbet Bit Details That Support Efficient Work

• Six different rabbet depths in 1/16 inch increments, from 1/8 inch to 1/2 inch cut width, allow one bit to handle a range of shoulder sizes, reducing tool changes during cabinet joinery runs.
• Switching ball bearing guides lets you change rabbet cut width by changing bearings, so you can dial in shoulder dimensions while keeping the same basic setup in the router.
• Six different bearings are provided according to the description, so each rabbet depth step has a matching guide diameter, supporting predictable cut widths for repeatable joinery dimensions.
• Depth of cut capacity of 1/2 inch means the bit can remove material up to 1/2 inch deep, giving flexibility for back panel rabbets or deeper joint shoulders within that range.
• Cutting height of 1/2 inch keeps the active cutting edge short relative to the shank, which helps support control and stability when working on typical cabinet stock thicknesses.

Installation And Router Setup For This Rabbet Bit

The 1/2 inch shank on this Amana Tool rabbet bit fits routers designed for 1/2 inch shank tools, helping the bit seat firmly in the collet during installation. A 2-3/8 inch overall length keeps the distance from collet to tip compact, which supports balanced rotation when you mount the bit in handheld or table mounted routers. The 1-3/8 inch diameter cutting head defines how far the cutter projects beyond the bearings, so you can align the workpiece edge to the bearing and expect a consistent rabbet shoulder along the length. Using a 2-flute configuration, the bit engages the material with two cutting edges, so the router feels more even as it tracks against the bearing along cabinet parts or casework edges.

Using The Amana Tool Multi-Rabbet Bit In The Shop

Where This 1-3/8 Inch Rabbet Bit Fits

This Amana Tool 1-3/8 inch diameter rabbet router bit sits in the router bits category under cabinet joinery, so it fits naturally into workflows cutting case rabbets, back panel seats, or similar joints. The depth of cut capacity of 1/2 inch lets you create rabbets within that depth, matching many common cabinet and furniture back panel operations. With cutting height set at 1/2 inch, the bit works well when you are working on stock where the rabbet shoulder does not need to exceed that height, such as typical cabinet sides and tops. The ability to use this bit in handheld or table mounted routers gives flexibility: it can follow long case edges on a router table or be brought to assembled parts in a handheld setup.

Rabbet Adjustments That Support Repeatable Results

Six different rabbet depths stepping in 1/16 inch increments, from a 1/8 inch cut width to 1/2 inch, mean you can match many common groove and panel thickness relationships by selecting the appropriate bearing. Switching ball bearing guides changes the effective cut width, so once the bit is mounted you adjust rabbets by changing the bearing, rather than changing to a different cutter. With six different bearings provided for this bit, each rabbet step has a bearing diameter that sets the shoulder width, supporting repeatable sizing when you run multiple parts. The 1/2 inch shank helps the bit track true as loads change with different rabbet depths, which supports consistent fit between mating cabinet parts. Combined with the 2-flute cutting action, these features help produce rabbets that align cleanly with panels and edges in repeated production runs.

Common Questions About This Multi-Rabbet Router Bit

Select This Rabbet Bit For Cabinet Joinery Work

The 1-3/8 x 2-3/8 multi-rabbet bit from Amana Tool combines a 1-3/8 inch diameter cutter, 1/2 inch cutting height, and 1/2 inch shank, aligning with typical cabinet joinery tasks. Six different rabbet depths in 1/16 inch increments, from 1/8 inch to 1/2 inch cut width, give one-tool coverage for common shoulder dimensions. Switching ball bearing guides adjusts width without changing bits, which suits production or repeat builds. With use specified for handheld or table mounted routers, this 49350 rabbet router bit can slot into existing shop setups. For woodworking professionals sourcing through Wurth Baer Supply, these details support consistent rabbets across projects.
