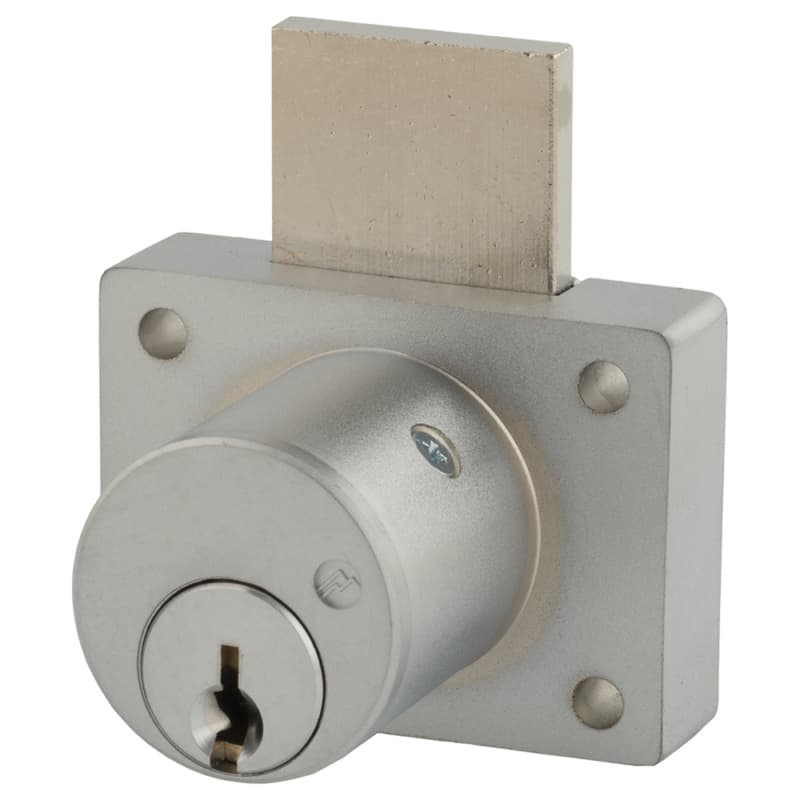

800 Schlage C Keyway Pin Tumbler Deadbolt Drawer Lock, Satin Chrome, Keyed Different, Cylinder Length 1-1/8"

Schlage C Keyway Deadbolt Drawer Lock Use

Schlage C keyway pin tumbler deadbolt drawer lock provides a keyed deadbolt function for drawers where positive locking is required. The 1-1/8 inch cylinder length positions the locking mechanism for typical drawer front thicknesses, helping installers hit the right backset without extra shimming. The satin chrome 26D finish matches common commercial hardware finishes, keeping cabinet and architectural hardware visually consistent on jobs. The keyed different setup means each lock has its own key, which suits applications needing separated access between users or locations. The pin tumbler design delivers standard key control familiar to locksmiths and cabinet shops, simplifying keying plans when paired with other Schlage C keyway products. As a deadbolt-style drawer lock, it throws a solid bolt rather than relying on a spring latch, which helps resist casual pulling or prying on the drawer front in daily use.

Deadbolt Drawer Lock Details That Support Workflows

• The Olympus Lock, Inc. 800 Schlage C keyway pin tumbler deadbolt drawer lock uses a body made from zinc die cast, which provides a rigid housing for the mechanism and helps the lock resist distortion when torqued during installation or heavy drawer use.
• The solid brass cylinder gives smooth pin movement and machinability, which supports precise keying and rekeying work for locksmiths maintaining Schlage C key systems across multiple cabinets or casework runs.
• The lock can be keyed together with other Schlage C keyway locks, allowing one key to operate multiple openings and simplifying key management in offices, retail fixtures, or institutional millwork projects.
• The mechanism is easily rekeyable via a set screw cylinder release mechanism, so cylinders can be changed or rekeyed on site without replacing the entire lock body, which can reduce labor time during rekeys or tenant turnovers.
• The product passed ANSI/BHMA A156.11 Grade 1 performance requirements, indicating it is built for demanding usage cycles and helping specifiers match performance expectations on commercial or higher-traffic cabinetry.
• The key is removable in the locked or unlocked position, which allows users to remove the key after locking or leave it removable when unlocked, supporting different control policies in workspaces or storage areas.

Installation And Locking Function For Drawer Projects

This deadbolt drawer lock uses a key-in-knob style cylinder compatible with Schlage C keyways, so locksmiths can integrate it into existing Schlage C master key systems where matching keyways are required. The standard function locks are non-handed, which means the same part works on left- or right-hand drawer layouts, reducing orientation issues during installation. The 1-1/8 inch cylinder length is suited for applications matching that barrel depth, providing predictable engagement with strikes mounted on the cabinet body. The design allows the cylinder to be released by a set screw, so installers can remove the cylinder when rekeying or servicing without disturbing the drawer mounting. As a deadbolt lock, the bolt engages a strike on the cabinet, creating a positive stop that is well suited to drawers that need a firm locked position rather than a simple cam rotation.

Where This Olympus Schlage C Lock Fits Best

Drawer And Casework Applications Using Schlage C

This 800 Schlage C keyway pin tumbler deadbolt drawer lock fits projects that standardize on Schlage C keyway across doors and cabinetry, because it can be keyed together with other Schlage C keyway locks. The lock will accept other manufacturer's Schlage compatible key-in-knob cylinders, which helps shops align with an existing cylinder supplier while still using this Olympus Lock, Inc. body. The cylinder length of 1-1/8 inch pairs well with drawer fronts and cabinet construction that accommodate that barrel depth, allowing consistent boring practices from unit to unit. Since the product is categorized as a deadbolt lock for drawers, it suits storage where the drawer must resist being pulled open when staff or users apply outward force. The satin chrome finish ties in with other 26D hardware in commercial interiors, so millwork and hardware schedules stay visually coordinated in reception, office, or institutional casework.

Details That Support Rekeying, Grading, And Consistency

The easily rekeyable design using a set screw cylinder release mechanism means locksmiths can pull the cylinder, change pins, or swap in another Schlage C key-in-knob cylinder without replacing the lock body, which supports long-term key system changes with less disruption. Passing ANSI/BHMA A156.11 Grade 1 performance requirements gives specifiers a defined performance level to match when they need hardware suited to demanding service, supporting consistent grading across a project. The key removable in locked or unlocked position allows facility managers to decide how keys are issued and stored, aiding everyday control of drawer access. Because the lock can be keyed together with other Schlage C keyway locks, it becomes part of broader keying plans where multiple drawers, doors, or cabinets operate on the same key. The non-handed standard function reduces part variation, supporting streamlined ordering and stocking for cabinet shops and service contractors working across multiple job sites.

Common Questions About This Deadbolt Drawer Lock

Select This Schlage C Drawer Lock For Coordinated Work

This Olympus Lock, Inc. 800 Schlage C keyway pin tumbler deadbolt drawer lock in satin chrome 26D matches projects built around Schlage C key systems and 1-1/8 inch cylinders. The easily rekeyable cylinder, non-handed design, and ANSI/BHMA A156.11 Grade 1 performance support commercial drawer and casework installations where coordinated keying, graded hardware, and straightforward installation keep shop time controlled.
