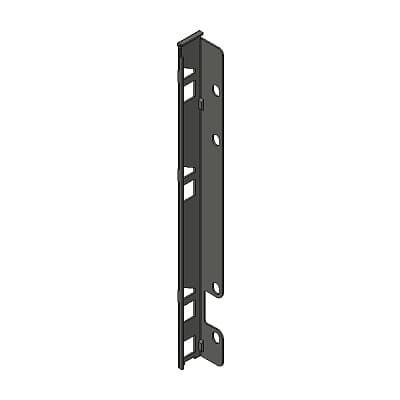

This is the LEGRABOX F-height rear fixing bracket from Blum, sold as a matched left-and-right pair in Orion Gray Matte. It anchors the rear of the LEGRABOX side profile to the cabinet, completing the runner attachment at the back of the box.
The rear fixing bracket is the attachment point that secures the back end of each LEGRABOX runner to the cabinet interior. Without it, the runner has no rear anchor, and the drawer cannot operate correctly under load. In face-frame cabinet builds in particular, the rear bracket is the component that bridges the gap between the face frame and the back wall, giving the runner a solid mount at both ends. In frameless construction it serves the same anchoring function, fixed directly to the cabinet side or back panel. This bracket is specific to the F side-height family — the tallest standard LEGRABOX profile — so it is the right choice for deep pot drawers, pantry pull-outs, and tall storage applications where the full 241mm side height is in use.
Orion Gray Matte is the interior finish used across the LEGRABOX F platform and the matching AMBIA-LINE organization line. Choosing this bracket keeps the rear mounting hardware visually consistent with the side profiles and any installed AMBIA-LINE frames or dividers. The finish is factory-applied; no field treatment is needed. Because LEGRABOX components are engineered together as a closed system, the bracket's geometry, fastener positions, and runner interface are specific to this platform — substituting a bracket from a different Blum series or another manufacturer's system is not a supported configuration.
Cabinet shops building LEGRABOX F-height drawers in volume keep these brackets on the shelf alongside their runner sets — the rear bracket is a per-drawer part, and running out of it mid-run stalls assembly. Kitchen designers specifying tall LEGRABOX drawers for pots, pantry goods, or pull-out storage should confirm rear brackets are on the hardware order alongside the runners and front fixings. Renovation contractors retrofitting LEGRABOX F drawers into existing casework need the bracket to complete the rear mount regardless of whether the original cabinet was face-frame or frameless. If you are replacing a damaged or missing bracket on an installed LEGRABOX F drawer, this left-and-right pair restores the original configuration.
No. This bracket is sized for the F-height profile at 241mm (9-1/2 inches). Other LEGRABOX heights — M, K, C — use their own matched rear brackets. Mixing heights within one drawer produces misaligned runner geometry.
One pair — a left-hand and a right-hand bracket — per drawer. This SKU ships as a left-and-right set, so one order covers both sides of a single drawer.
Yes. The rear bracket mounts at the cabinet's back wall or rear panel, which is the same in face-frame and frameless construction. It is the component that provides the runner's rear anchor point independent of the cabinet's front structure.
No. LEGRABOX rear brackets are designed for LEGRABOX runners only. TANDEMBOX, MOVENTO, and other Blum platforms each use their own system-specific mounting hardware.
Yes. Orion Gray Matte is the shared finish across LEGRABOX F profiles, front fixings, and the AMBIA-LINE interior organization line, so hardware installed throughout the drawer carries a consistent appearance.
A LEGRABOX F drawer is only as solid as its rear anchor. Ordering this bracket with your runner set means the full installation goes in without a second trip to sourcing — and the Orion Gray Matte finish integrates cleanly with every other LEGRABOX F component already on the job.
Sold In: 1 Set
