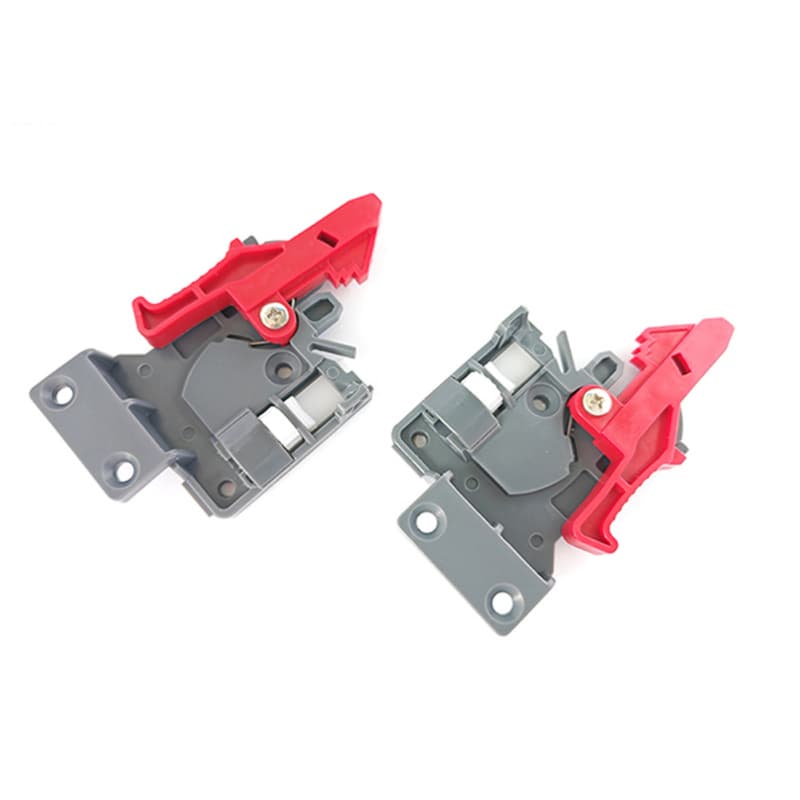

The PRO560 1D Narrow Flanged Front Locking Device Set is a paired left- and right-hand clip that fastens a drawer box to PRO560 series undermount slides where a standard-width flange would foul the cabinet or drawer opening. It provides one-axis height adjustment to true the drawer front after installation.
In production cabinet runs where drawer openings are sized close to the box, a full-width locking device can interfere with the face frame or the drawer front itself during installation. The narrow flanged version of the PRO560 front clip resolves that clearance problem without changing the drawer box spec or rebuilding the opening. It is also useful in retrofit work — existing drawers that were built without full clearance for a standard flange can accept this clip where the wider version cannot seat properly. Any PRO560 undermount installation with a tight front-to-opening margin benefits from this variant.
The clips are molded in plastic, which keeps weight off the drawer front fixing and allows the height-adjustment mechanism to operate with the light finger pressure typical of a production line. The plastic construction also avoids marring the drawer bottom or the face of the undermount runner during clip installation and removal. Because locking devices take no structural load — the slide carries the drawer, and the clip simply registers and retains the front — plastic is the appropriate material class for this component.
Cabinet shops running PRO560 undermount slides in face-frame or frameless boxes with limited front clearance are the primary buyer. Installers retrofitting undermount slides into existing casework with narrow openings will also find this clip resolves what the standard-flange version cannot. The 1D adjustment is well suited to production environments where the box position is consistent and only vertical fine-tuning is needed after hanging — if your install requires lateral or depth correction as well, the PRO560 family includes 2D and 3D locking device options with broader adjustment range.
The flange — the lip that registers against the drawer bottom or front — is narrower in profile, reducing the footprint of the clip at the front of the drawer. This lets the device seat in openings where the standard-width flange would hit the face frame or drawer front edge before fully engaging.
Yes. The clip fixes to the underside of the drawer box front and engages the PRO560 slide regardless of cabinet construction type. The narrow flange is most useful in face-frame installs where the opening margin is tighter, but it functions identically in frameless boxes.
The 1D device adjusts the drawer front up to +3 mm in height. Adjustment is one-directional — height only. If you need to correct side position or depth as well, select the 2D or 3D version of the PRO560 locking device instead.
No. PRO560 locking devices are engineered for the PRO560 undermount platform. Locking devices are series-specific and do not interchange across brands or slide families.
Yes. The set includes one left-hand and one right-hand clip, which is everything needed to front-fix a single drawer on a PRO560 slide pair.
When the standard flange is the only thing standing between a completed drawer and a stalled install, this narrow version resolves the clearance problem cleanly — one set, one drawer done, no rework.
Sold In: 6 Pair
