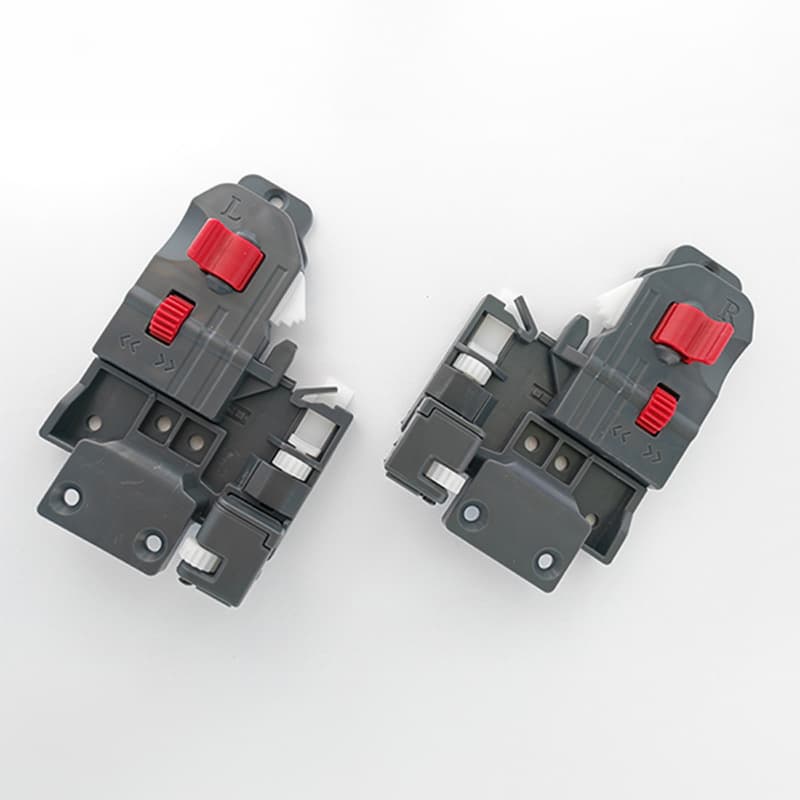

The PRO560 3D 6-Way Adjustable Flanged Front Locking Device Set gives you precise, tool-accessible fine-tuning of a mounted drawer front in three directions at once — height, side, and depth — using a single matched pair of left- and right-hand plastic clips built for the PRO560 undermount slide system.
Every undermount drawer installation has a moment after hanging where the front needs to be trued: a gap that runs wider at the top, a slight shift left from center, a face that sits proud of its neighbors. A locking device with only one adjustment direction forces a compromise. With height, side, and depth all independently dialed, the PRO560 3D clip set lets you land each front exactly where the reveal calls for it — without shimming, scribing, or resetting the slide.
That kind of control matters most on runs of kitchen drawers, bath vanities, and built-ins where every front is visible alongside its neighbors and small misalignments read as poor craftsmanship. The 6-way range is also useful on site: cabinets that rack slightly during delivery or installation can be corrected at the front fixing without touching the slide itself.
The clips are molded in plastic sized to the PRO560 runner geometry. The flanged profile adds contact area at the drawer front panel, which distributes the connection load and reduces any tendency for the front to flex or chatter under repeated use. Maximum drawer side thickness is 0.63 inch (16 mm) — build your PRO560 drawer boxes to that specification and these clips seat correctly every time.
Because locking devices are engineered per system, these clips are made for the PRO560 series. They are not interchangeable with PRO600 or other undermount families, and they are not a universal fitting.
Cabinet shops running PRO560 undermount slides on frameless or face-frame kitchen and bath projects will find the 3D clip set the right choice when drawer-front alignment needs to be dialed in after installation rather than set once and left. Installers doing site corrections and designers specifying adjustable-front systems both benefit from the full six movements. If your application only needs height correction, the PRO560 1D narrow clip covers that at a lower cost. If depth adjustment is not a requirement, the PRO560 2D non-flanged set handles height and side. This flanged 3D set is the choice when all three axes matter and the front face contact area of a flanged profile is preferred.
Yes. One set contains both the left-hand and right-hand locking device, so a single order covers one complete drawer.
No. Locking devices are series-specific. These clips are engineered for the PRO560 system and are not compatible with PRO600 or other undermount families.
The maximum drawer side thickness is 0.63 inch, which corresponds to the 16 mm drawer side standard for PRO560 drawer boxes.
Yes. The 3D adjustment is designed to be made with the drawer in place, so you can fine-tune height, side position, and depth without removing the drawer from the cabinet.
When a drawer front needs to land exactly right in all three directions, the PRO560 3D 6-Way Flanged Front Locking Device Set gives installers and shops the adjustment range to get there cleanly, in one set, without compromise.
Sold In: 6 Pair
