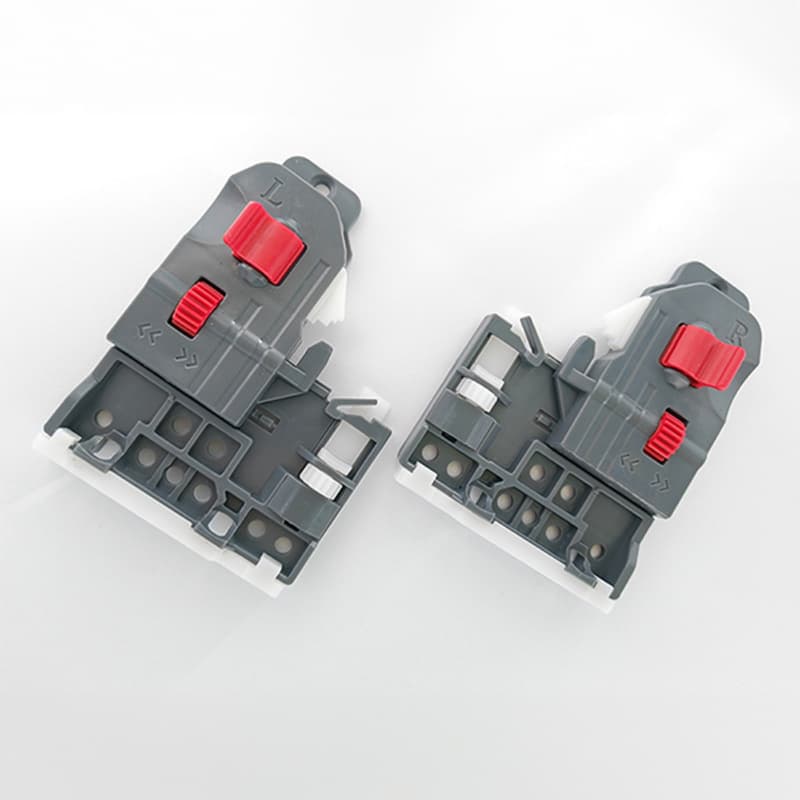

The PRO560 2D 4-Way Adjustable Non-Flanged Front Locking Device Set secures drawer fronts to PRO 560 undermount slides with built-in height and side adjustment, and its non-flanged profile suits drawer boxes and cabinet constructions where a flanged fitting would protrude or conflict with the front panel layout.
Locking devices do the job of bridging the drawer box to the slide while giving you a controlled window to dial in the front after the box is installed. On a production run where drawer fronts go on after the boxes are hung and shimmed, having height and side adjustment built into the clip means fewer passes at the front to get the reveal even. The non-flanged version is the right call when your drawer box front or panel design leaves no clearance for a flange, or when a clean interior without visible hardware protrusions is part of the spec. It also works well in retrofit situations where an existing box front profile rules out the flanged version.
The clips are molded plastic, sized and toleranced to the PRO 560 runner geometry. Maximum drawer side thickness of 0.63 in keeps this set squarely in 5/8 in (16 mm) drawer box territory — if your shop runs 3/4 in (19 mm) sides, check that the PRO 560 series offers a version for that thickness before ordering. The left-hand and right-hand members ship together as one set, so a single line item completes the locking device installation on one drawer.
Cabinet shops running PRO 560 undermount slides who need the non-flanged clip option will find this set the straightforward complement to their slide order. It is also the right pick for installers replacing a worn or damaged locking device on an existing PRO 560 installation — provided the original fitting was non-flanged. Homeowners doing a single drawer replacement can order one set and have exactly what the slide requires without extra hardware.
The flanged version has a projecting lip that captures the drawer box edge; the non-flanged version sits flat against the front of the drawer box without that protrusion. Choose non-flanged when your drawer front panel design or box profile does not leave room for the flange, or when you want a cleaner interior appearance.
No. Locking devices are series-specific. This set is engineered for PRO 560 undermount slides. PRO600 slides use their own locking device, and clips from one series will not seat correctly on another.
One set includes the left-hand and right-hand clips needed for a single drawer. Order one set per drawer.
This set is rated for drawer sides up to 0.63 in, which corresponds to 5/8 in stock. For 3/4 in sides, verify whether the PRO 560 series offers a version specified for that thickness before ordering.
No. The PRO 560 family includes several locking device configurations — flanged and non-flanged, and 1D, 2D, and 3D adjustment. This set is the 2D non-flanged version, with height and side adjustment and no flange. The flange style and number of adjustment dimensions are distinct selection criteria, so confirm which combination your drawer and cabinet design requires.
A locking device that matches the slide series and the drawer box spec takes retrofit guesswork off the table and keeps production installs moving. The PRO560 non-flanged 2D set gives PRO 560 shops the adjustment range to finish the job accurately without switching to a different fitting mid-run.
Sold In: 6 Pair
