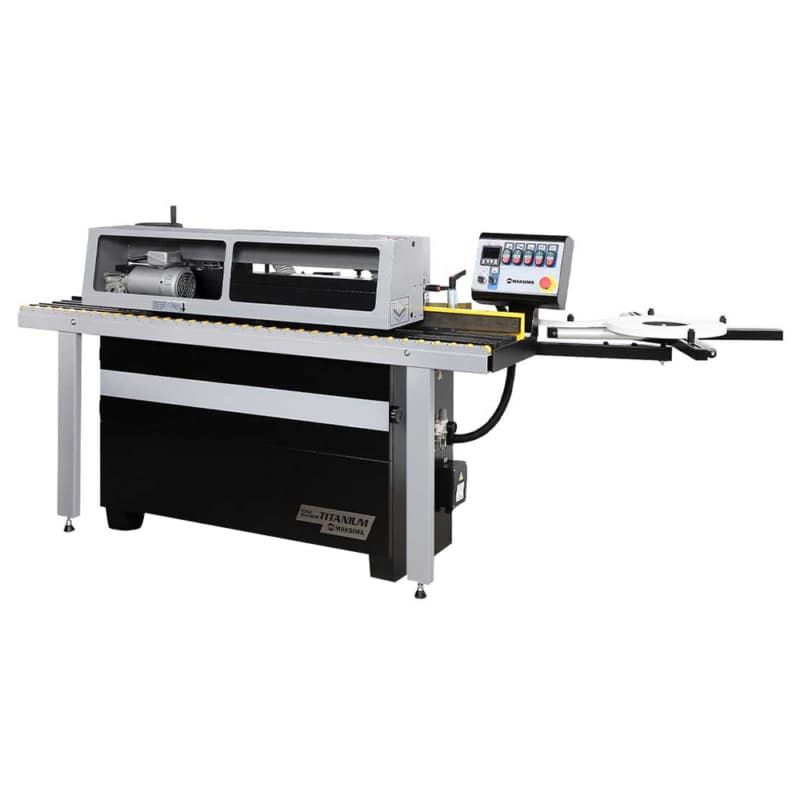

The Maksiwa CBC.T Automatic Edgebander delivers precise, seamless edge finishes with unmatched ease. Designed for modern woodworking shops, this 220 V single-phase machine offers a smooth automatic feed, high-precision trimming, and effortless control. It combines manual flexibility with powerful automationmaking it best for seasoned professionals and growing workshops.
Key Features & Benefits
Stable Frame for Flawless Operation
• Heavy-duty mono-block steel frame minimizes vibration and ensures long-term accuracy
• Friction-free stainless-steel worktable allows panels to glide through smoothly
• Anodized aluminum outfeed fence ensures lasting alignment and durability
Precision Control for Perfect Edges
• Digital temperature control keeps glue application consistent across all materials
• Individually adjustable trimming units allow for fine-tuning on every panel
• Push-button control panel makes operation intuitive and fast
Automated Feed System That Saves Time
• Automatic panel feed ensures constant throughput with no manual pushing
• Dual pressure rollers provide even grip without damaging delicate materials
• Pre-heated infeed fence improves glue adhesion and edge bonding
High-Quality Finish with Clean Edges
• Dual buffing units deliver a polished final look with every panel
• Top and bottom flush trimming ensures clean edges with minimal post-processing
• Front and rear trimming units guarantee fully finished corners
Designed for Versatility and Long-Term Use
• Handles a variety of materials PVC, ABS, melamine, veneer, and laminate
• Supports edge tape thickness from 0.4 mm to 3 mm and panel thickness up to 45 mm
• Extendable support rail offers convenience when working with larger panels
- Air Pressure Requirement: 6 SCFM @ 100 psi (7 kg/cm2)
- Automatic Feeding Speed: 16'/min (5 m/min)
- Bottom Buffing Motor: 1/4 HP (0.18 kW)
- Conveyer Motor: 3/4 HP (0.55 kW)
- Edgebanding Coil Support Diameter: 31 1/2" (820 mm)
- Edgebanding Thickness: 0.0157" - 0.118" (0.4 - 3 mm)
- Electrical Requirements: 1 Phase, 220 V, 30 Amps, 60 Hz
- End Trim Motor: 1/4 HP(0.18 kW)
- Extendable Panel Support Rail Length: 78-21/32" (1998 mm)
- Extension Table Max Width: 12" (310 mm)
- Flush Trimmer Motor: 3/4 HP (0.55 kW)
- Glue Pot Capacity: 2 lbs (1 kg)
- Glue Spindle Motor: 1/3 HP (0.25 kW)
- Max Edgebanding Height: 2" (50 mm)
- Min. Panel Length: 9-7/16" (240 mm)
- Min. Panel Width: 4-3/4" (120 mm)
- Min. Dust Collection Requirements: 700 CFM (20 m/Min)
- Min/Max Panel Thickness: 31/64" - 1-3/4" (12 - 45 mm)
- Size Of Dust Collector Ports: 4" (100 mm)
- Sound Rating: 80 dB
- Top Buffing Motor: 1/4 HP (0.18 kW)
