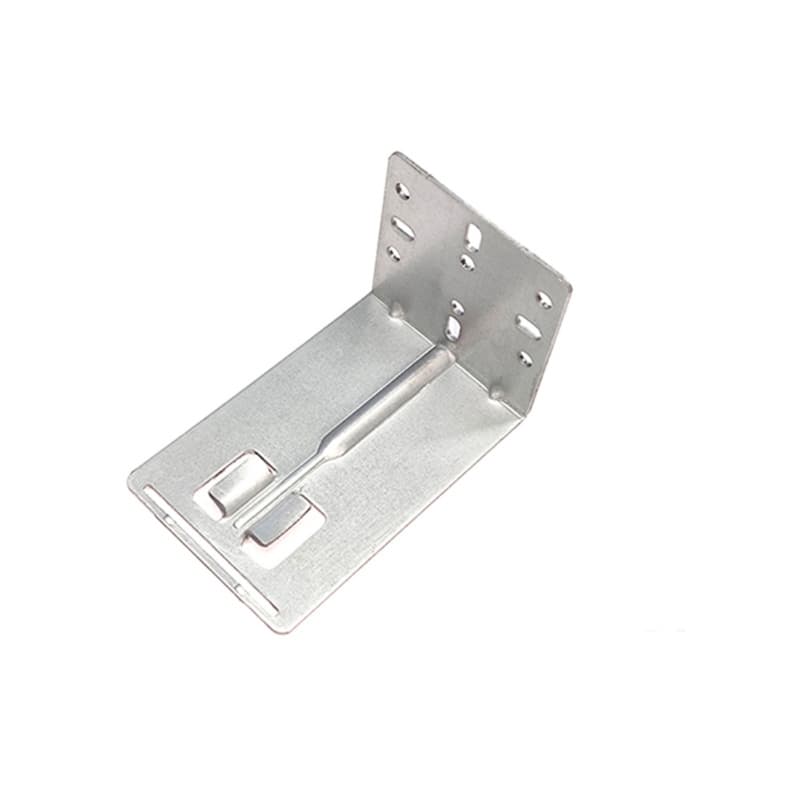

The PRO560 Narrow Rear Mounting Bracket gives the rear end of a PRO 560 series drawer slide a solid mounting point inside cabinets where a standard-width bracket will not fit. It is designed for face-frame and other cabinet configurations where rear support is required but side clearance is limited.
In face-frame cabinet construction, the cabinet side sits behind the face frame, and the rear of the drawer slide needs a bracket to bridge that gap and anchor to the cabinet back or rear nailer. When the available space between the drawer box and the cabinet wall is tight — whether from a narrow cabinet, a thick partition, or an adjacent drawer bay — a standard rear bracket can be too wide to seat properly. The PRO560 Narrow Rear Mounting Bracket solves that problem by delivering the same rear support in a reduced footprint. It is also useful in frameless cabinets with an unusually shallow interior, where every millimeter of side clearance counts.
The bracket is metal construction with a finish suited to the PRO 560 series environment — an indoor cabinetry application where the hardware stays hidden behind the drawer box. The screw-on attachment method means the bracket can be repositioned during layout without damage to the cabinet, and it seats securely once the slide is aligned and fastened.
Cabinet shops running the PRO 560 slide program into face-frame boxes are the primary users. When the job calls for rear bracket support and the standard bracket does not clear, this narrow version keeps the installation moving without requiring a different slide series. It is also a practical stocking item for installers who work across a range of cabinet configurations and want a bracket on hand for the tight-clearance jobs that come up on every kitchen. Because it is non-handed, a single SKU covers both sides of every drawer bay.
No — rear mounting brackets for the PRO 560 series are sold separately. Add this bracket to your order for each slide that needs rear support in a face-frame or tight-clearance installation.
The narrow profile reduces the bracket's width so it fits in cabinet configurations where the standard bracket is too wide. If side clearance is not a constraint, the standard rear bracket also works with the PRO 560 series.
No — brackets in the Pro Value Series are series-specific. This bracket is made for the PRO 560 program and should not be used as a substitute for brackets designed for the PRO 100, PRO 3.0, PRO 600, or other series.
One bracket per slide — two brackets per drawer. Since the bracket is non-handed, the same part covers both the left and right slide in each drawer bay.
When the cabinet is narrow, the clearance is tight, and a standard bracket will not fit, the PRO560 Narrow Rear Mounting Bracket keeps the PRO 560 slide installation on track without compromise.
Sold In: 1 Each
