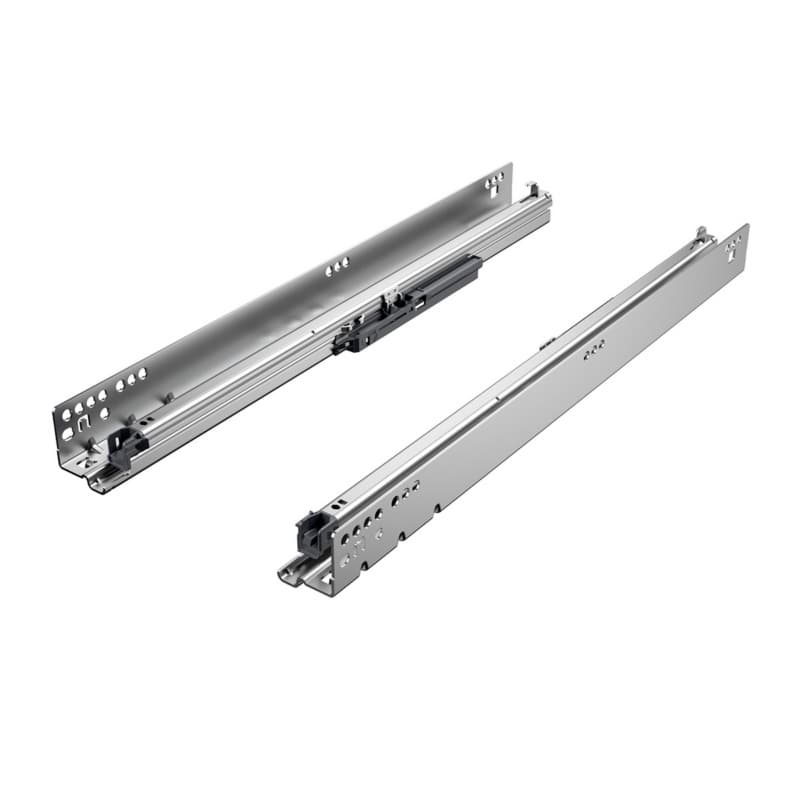

Name: Hettich Quadro V6 5-Pair Box 24" Soft-Close Full Extension 90 lb Undermount Drawer Slide, Zinc, 9304286
Brand: Hettich America Corporation
Availability: BackOrder

24" Drawer Slides with front fixing clips and tool-less height adjustment
Integrated damping system
Optionally upgradeable with Push to open Silent: convenient opening mechanism in combination with silent and soft closing; upgradeable with synchronization
Side adjustment up to +/- 2 mm with 2D front fixing clips
For 1/2" (13 mm) or 5/8" (16 mm) drawers side thickness
For face frame or frameless applications
Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements
Load capacity up to 90 lbs dynamic (100 lbs static), as per ANSI/BHMA 156.9 grade 1 specification on a 21" length slide
Galvanized steel, suitable for rooms exposed to moisture
For narrow applications
