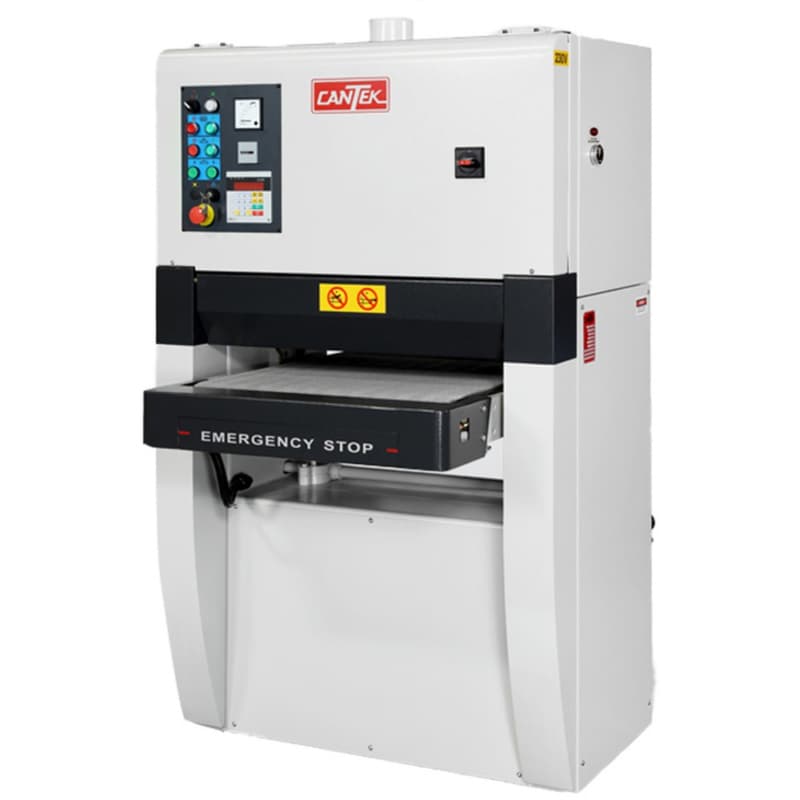

The Cantek C251 24" Wide belt Sander (1Phase) delivers high-end sanding performance in a compact design. Equipped with a combination sanding unit, digital thickness control, and a durable heavy-duty frame, it's built for precision and reliability. Whether you're calibrating material or applying a fine finish, this sander provides versatility for a range of woodworking applications, all while saving shop space.
Key Features & Benefits
Compact Powerhouse
- Space-saving footprint makes it ideal for shops with limited room
- Delivers industrial-grade sanding without the bulk of larger machines
- Ideal for small to mid-size production operations that need versatility
Easy Digital Precision
- Motorized table adjusts automatically to the set height for accurate results
- Switch between inch and metric settings with ease
- Minimizes setup time and human error for consistent sanding outcomes
Versatile Combination Sanding
- Equipped with a 3-3/8" rubber contact drum for calibration
- 2" adjustable sanding platen delivers fine finishes with ease
- Suitable for both heavy stock removal and final surface prep
Fast Belt Changes
- Pneumatic tensioning with quick-release support makes swaps easy
- Disc brake on the main motor stops the belt quickly for safety and speed
- Simplifies maintenance and improves shop productivity
Smarter, Safer Operation
- Ammeter helps monitor load to avoid over-sanding or motor stress
- Over-height limit switch protects machine from oversized materials
- Hour meter tracks run-time for timely service and maintenance planning
Clean, Consistent Part Control
- Dual infeed and outfeed pressure rolls provide firm hold-down during sanding
- Ensures smoother feed with minimal vibration or shifting
- Works great with longer or thinner materials that require stability
- Net Weight: 1452 lbs (660 kg)
- Shipping Weight: 1584 lbs (720 kg)
- Weight: 1,584.000 lbs
- Belt Size: 25" x 60"
- Compressed Air Requirements: 2 CFM @ 90 PSI
- Feed Belt Speed: 13 - 52 FPM
- Feed Motor: 1 HP
- Infeed Table: 11-1/2" (292 mm)
- Machine Dimensions: 53" x 50" x 63" (1346 x 1270 x 1600 mm)
- Max. Thickness Opening: 4" (100 mm)
- Max. Width Stock: 24" (609 mm)
- Min/Max Working Thickenss: 4" (100 mm)
- Min. Part Length: 13" (330 mm)
- Motor: 10 HP
- No. Of Heads: 1
- Passline Height: 33" - 38" (838 - 965 mm)
- Phase: 1
- Table Rise/Fall Motor: 1/2 HP
