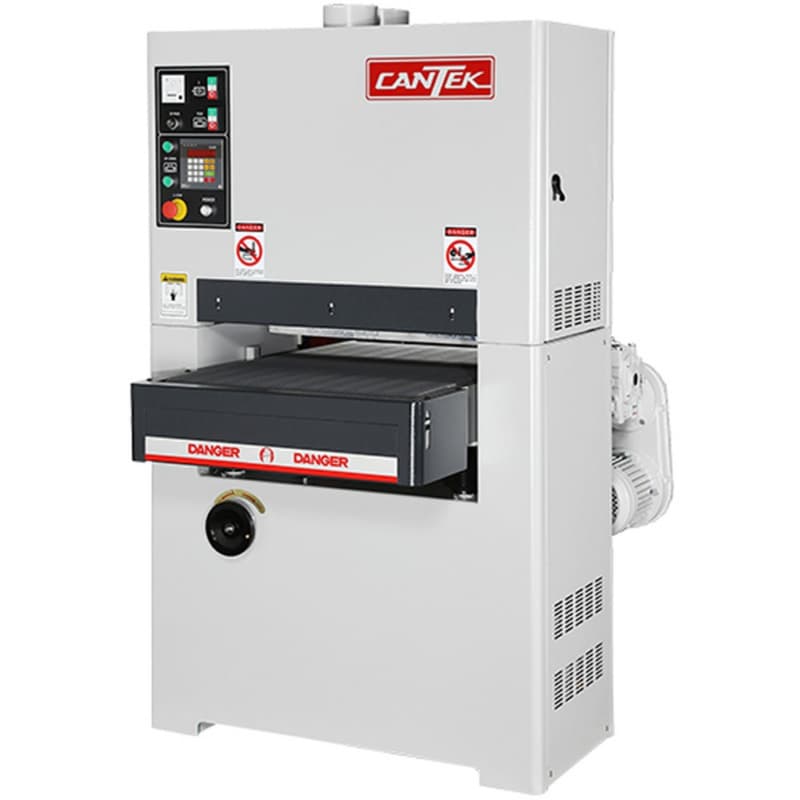

Engineered for precision in small to mid-sized shops, the Cantek S251 24″ Wide belt Sander combines efficient performance with a space-saving design. Manufactured by Cantek, a leading name in woodworking machinery, this machine features a combination sanding unit capable of both calibration and fine finishing. With motorized digital thickness control and advanced safety features, it delivers consistent results while maximizing efficiency in tight workspaces.
Key Features & Benefits
Precision Digital Thickness Control
• Motorized table enables fast and accurate adjustments
• Supports inch and metric settings for universal operator use
• 'Set-it-and-forget-it control minimizes setup time and user error
Versatile Combination Sanding Unit
• 3-3/8" rubber contact drum provides aggressive calibration sanding
• 2" sanding platen offers smooth, controlled finishing
• Ideal for a wide range of materials and sanding applications
Industrial Performance in a Compact Frame
• Small footprint fits easily into space-limited workshops
• Rugged build quality ensures long-term dependability
• Designed for high performance without sacrificing floor space
Enhanced Safety and Belt Monitoring
• Electronic belt tracking for extended belt life and better results
• Integrated disc brake allows quick and safe belt changes
• Interlocked access doors improve operator safety
Optimized Maintenance and Workflow
• Built-in ammeter monitors motor load to prevent over-sanding
• Pneumatic belt tensioning and quick-release system for faster changes
• Minimizes downtime and boosts productivity
- Net Weight: 1344 lbs (610 kg)
- Shipping Weight: 1565 lbs (710 kg)
- Belt Size: 25" x 60"
- Compressed Air Requirements: 60 PSI
- Compressed Air Volume: 7 CFM (0.2M3/Min)
- Dust Collection Requirements: 824 CFM (1400 M3/HR)
- Electrical Requirements: 230/3/60 = 34 Amps
- Feed Belt Speed: 15 - 49 FPM (4 to 15 m/min)
- Feed Motor: 1 HP
- Machine Dimensions: 50" x 45" x 76" (1270 x 1150 x 1940 mm)
- Min/Max Working Thickenss: 5.9" (150 mm)
- Min. Part Length: 13" (320 mm)
- Motor: 10 HP
- No. Of Heads: 1
- Pass Line Height: 37" (950 mm)
- Phase: 3
- Shipping Dimensions: 52" x 45" x 76" (1330 x 1150 x 1940 mm)
- Table Rise/Fall Motor: 0.25 HP
- Working Width: 25" (609 mm)
