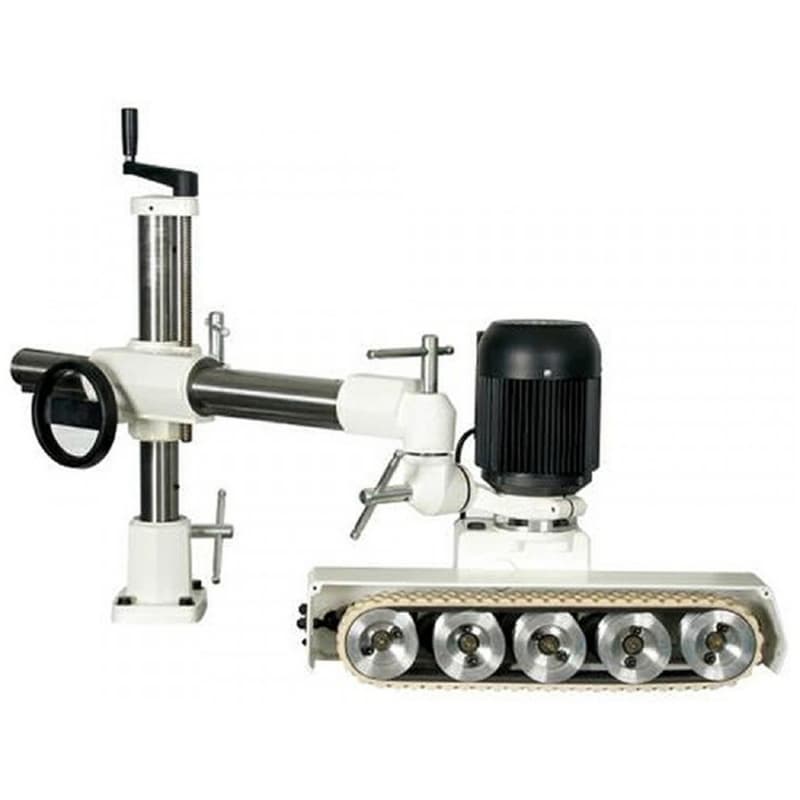

The Cantek AF04 Single Phase Track Feeder is a versatile solution designed for feeding small and short workpieces, ensuring stable and efficient material transport. Unlike conventional 3- or 4-roller feeders, the AF04 uses synthetic rubber belts over spring-loaded rollers to handle smaller and more delicate materials. With a universal stand and adjustable height, it adapts easily to various applications, making it a must-have for your shaper or table saw.
Key Features & Benefits
Efficient Feeding for Small Workpieces
• The Cantek AF04 is tailored for small and short materials that can't be fed by traditional feeders
• Synthetic rubber belts over five spring-loaded rollers ensure stable feeding and precise control
• Greatly reduces material slippage, keeping the workpiece securely in place throughout feeding
Adjustable Feed Position and Height
• The universal stand offers flexible height and position adjustments
• Easily switch between horizontal and vertical feeding to suit your workspace
• Ideal for adapting to your specific setup with quick, tool-free adjustments
Safe and Ergonomic Operation
• Hands remain safely away from the cutterhead or sawblade during operation
• The closed system minimizes the risk of accidents, ensuring safe handling of materials
• Streamlined design allows for continuous, uninterrupted operation without compromising safety
Versatile Motor & Feed Options
• Equipped with a 1 HP motor for reliable performance in various applications
• 4 adjustable feed speeds provide flexibility depending on the material being worked with
• Capable of both forward and reverse feeding for diverse tasks, boosting efficiency
- Weight: 147.000 lbs
- Belts: 44" x 1/2" x 3 pcs.
- Distance Between Rollers: 4.2"-4.1"-3.9"-4.2"
- Electrics: 230/1/60 = 8 amps230/3/60 = 4.2 amps460/3/60 = 2.1 amps
- No. Of Rollers: 5
- Roller Suspension: 0.79"
- Rotation: Forward & Reverse
- Shipping Dimensions: Body: 30.3" x 22" x 11.5"
- Shipping Dimensions: Stand: 30.3" x 12.6" x 11.5"
- Shipping Weight: 154 lbs
- Feed Speeds: 13, 26, 33, 66 FPM
