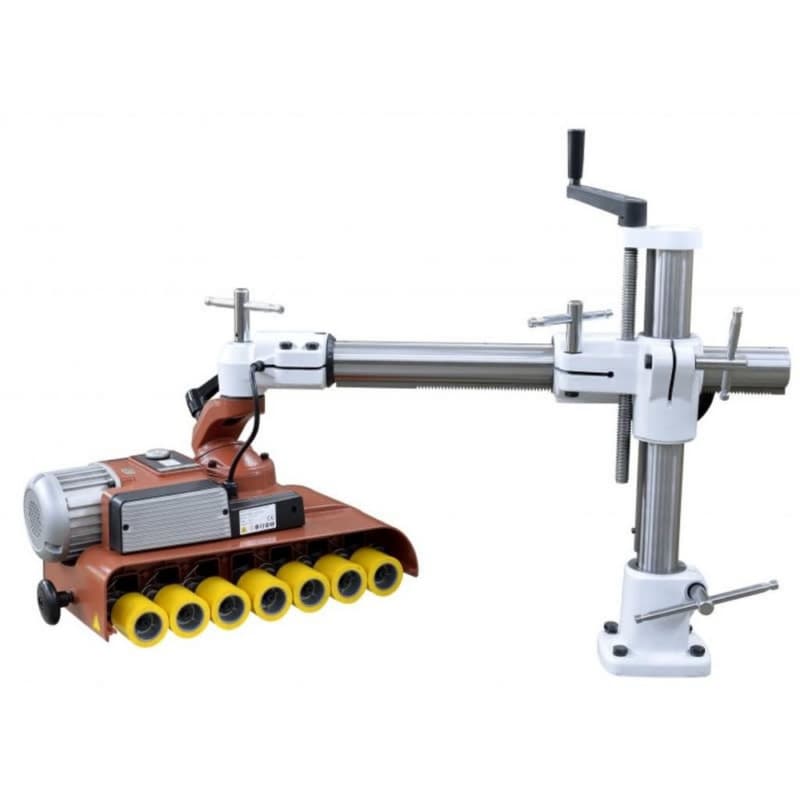

The Comatic DC70-3-220V Power Feeder offers advanced control for feeding short and lightweight stock. Featuring seven rollers, a high-efficiency brushless motor, and precise speed settings, it ensures steady, secure feeding. Designed for high-volume shops, it improves productivity while maintaining energy efficiency and workpiece safety.
Key Features & Benefits
Reliable Feeding for Short and Lightweight Stock
• Seven precision rollers provide continuous, even hold-down pressure
• Prevents workpieces from lifting or shifting during the feeding process
• Ideal for feeding smaller stock safely and consistently
Energy-Efficient DC Servo Motor Technology
• Consumes only 500 W, using up to 50% less power than similar feeders
• Maintains torque levels equal to a 1 HP AC motor with just 2/3 HP input
• Ensures consistent speed and power even under heavy loads
Variable Speed Control for Versatile Operations
• Digital controls adjust feed speeds between 2 and 26 m/min
• Speed changes are made easily with a dial, no gear replacement needed
• Allows rapid adaptation to different materials and cutting conditions
Adjustable Inclined Feeding for Better Cutting Accuracy
• Feeding head inclination adapts to workpiece shape and tool path
• Indicator guides ensure accurate and repeatable angle settings
• Improves cut quality and reduces material wastage
Memo-Locking Swivel for Setup Efficiency
• Quick 90-deg swivel locks securely for faster machine transitions
• Minimizes downtime during machine changeovers
• Suitable for operations with multiple profiles or cut types
Heavy-Duty Stand for Stability and Flexibility
• Universal cast-iron stand adjusts up to 250 mm high with 440 mm shoulder reach
• Supports various woodworking machines while reducing vibrations
• Enhances overall stability for smoother feeding operations
Durable Roller Suspension for Extended Life
• Roller system supports up to 10 mm (3/8") of suspension travel
• Ensures even feeding pressure and protects material surfaces
• Reduces maintenance needs and improves feeder longevity
- Gross Weight: 26 + 32 kg
- Net Weight: 53 + 66 Lbs
- Roller Diameter: 59 x 60 mm x 7pcs (2-3/10" x 2-3/10")
- Roller Suspension: 3/8"
- Voltage: 100-120V / 1 phase200-240V / 1 or 3 phase380-420V / 3 phase
- 20 ft Container Loading: 212 Sets
- Feed Speeds: 7-86 FPM
- HP: 2/3 HP
- Package Dimensions: Body: 630 x 350 x 310 mm (24-13/16" 13-13/16" 12-3/16") Stand: 770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2")
