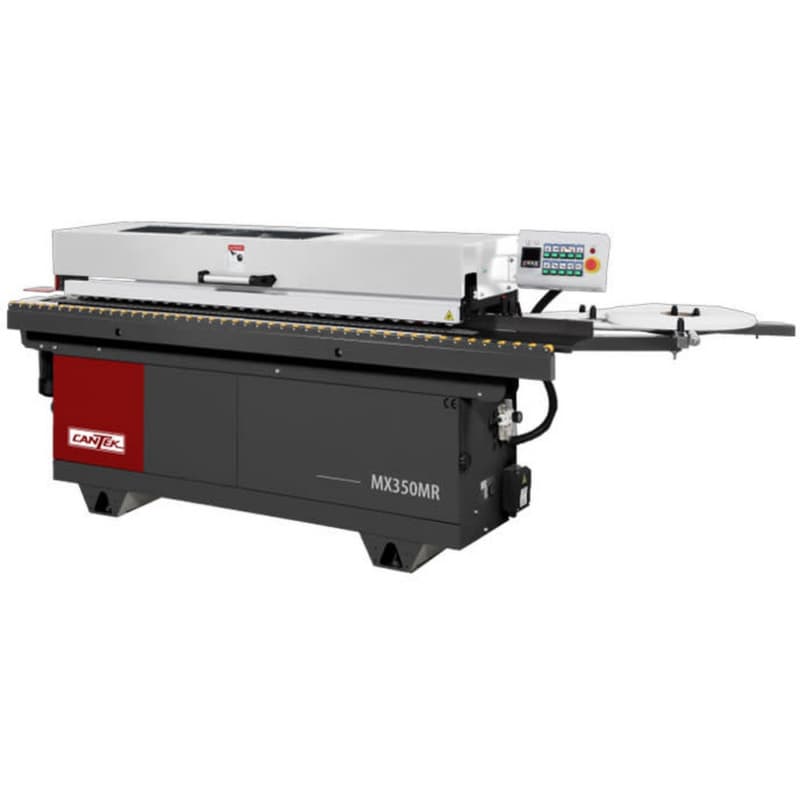

The Cantek MX350MR is a compact, precision-engineered automatic edge bander designed for small workshops seeking professional-grade results. With its space-saving footprint, reliable chain feed system, and comprehensive edge processing capabilities, this machine delivers consistent, high-quality edge banding for a variety of materials and applications.
Key Features & Benefits
Compact & Workshop-Friendly
- Space-efficient design ideal for small workshop environments.
- Heavy-duty pressure beam with extendable workpiece support accommodates various panel sizes.
Consistent, Reliable Performance
- Chain feed system ensures uniform material feeding for repeatable, high-quality results.
- Pre-milling unit prepares panel edges before gluing, ensuring optimum edge quality and adhesion.
- Heated infeed fence preheats panels for superior glue penetration and bonding strength.
- Spring-loaded pressure unit with dual rollers (1 chrome, 1 rubber) applies consistent pressure for secure edge application.
User-Friendly Operation
- PLC control system with LED display and keypad for straightforward machine operation.
- Mechanical digital readouts enable quick, precise adjustments to working units and thickness settings.
- Dual-purpose end trim and radius trimming system activated directly from the control panel.
Versatile Edge Processing
- Automatic edge feeding system handles edge thicknesses from 0.4 mm to 3 mm.
- Edge coil support plate accommodates rolls up to 800 mm (31.5") for PVC and ABS materials.
- Guillotine shears provide clean cuts for coiled edge bands up to 3 mm in hard-PVC and ABS.
- 1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot delivers consistent glue application with easy maintenance.
Precision Adjustability
- Fine-tuning controls allow for precise adjustments to optimize edge quality for different materials and thicknesses.
- Dual-purpose trimming system offers flexibility for straight cuts and radius profiles.
- Digital readouts simplify setup and reduce changeover time between jobs.
- Air Consumption: 8.83 CFM
- Dust Collection Outlet: 3 X 4"
- Edge Thickness: 0.0158" - 0.118"
- Feed Speed: 23 FPM
- Machine Weight: 1,162 LBS
- Max. Machine Dimension: 126" X 47.25" X 47.25"
- Min. Panel Length: 7.48"
- Min. Panel Width: 3.54"
- Panel Thickness: 0.472" - 1.77"
- Premilling Spindle Speed: 9,000 RPM
- Top & Bottom Trimming Motor: 10,500 RPM
- Working Table Height: 33.7"
