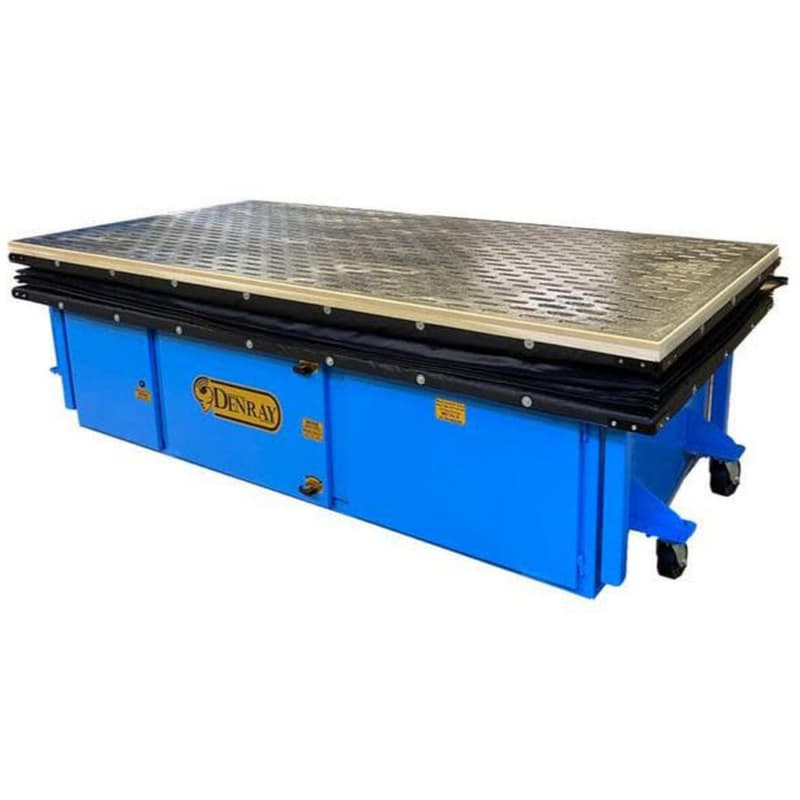

Built for medium-sized production environments, the Denray 4896LP-3PH-DEN downdraft table offers adjustable height from 28" to 40" for ergonomic comfort across a range of tasks. Ideal for wood, plastic, and finishing material applications, this model combines strong airflow, exceptional filtration, and rugged build quality. Backed by Denray’s reputation for high-performance dust control, this unit is designed to keep your workspace cleaner, safer, and more efficient.
Key Features & Benefits
Height Range That Adapts to You
• Table height adjusts from 28" to 40", supporting seated and standing workstations.
• Reduces fatigue by adapting to the operator’s preferred working height.
• Enhances workflow in multi-user or multi-task environments.
Exceptional Dust Capture for Cleaner Air
• Equipped with 80/20 cartridge filters that capture 99.95% of dust at 0.5 microns.
• Includes Denray’s Jet Pulse push-button cleaning system for fast, hassle-free filter maintenance.
• Keeps airborne dust to a minimum during sanding, grinding, and finishing.
Powerful Motor for High CFM Suction
• 5 HP motor and 18" fan generate 4800 CFM, ideal for high-volume material removal.
• Handles dust from wood, plastic, and composite materials with ease.
• Runs on 3-phase power (230V, 460V, 575V) for industrial-grade reliability.
Rugged Construction for Demanding Jobs
• Built with a rubber-coated or HDPE plastic tabletop that resists wear and chemical damage.
• The table’s 1050 lb frame provides long-term durability and vibration resistance.
• Designed to perform in industrial settings with minimal maintenance needs.
Optional Upgrades for Workflow Customization
• Add a muffler to reduce sound levels by 10–12 dB during operation.
• Customize with HEPA or carbon filter banks for additional odor or fine particle filtration.
• Other options include casters, explosion-proof motors (3PH only), auto-timer, and light bar for greater convenience.
- Weight: 1,000.000 lbs
- Voltage: 230, 460 & 575
- Table Dimensions: 48" x 96"
- Phase: 3
- Height: 40"
- Sound Level: 88 decibels
- CFM: 4800
- FAN: 18"
