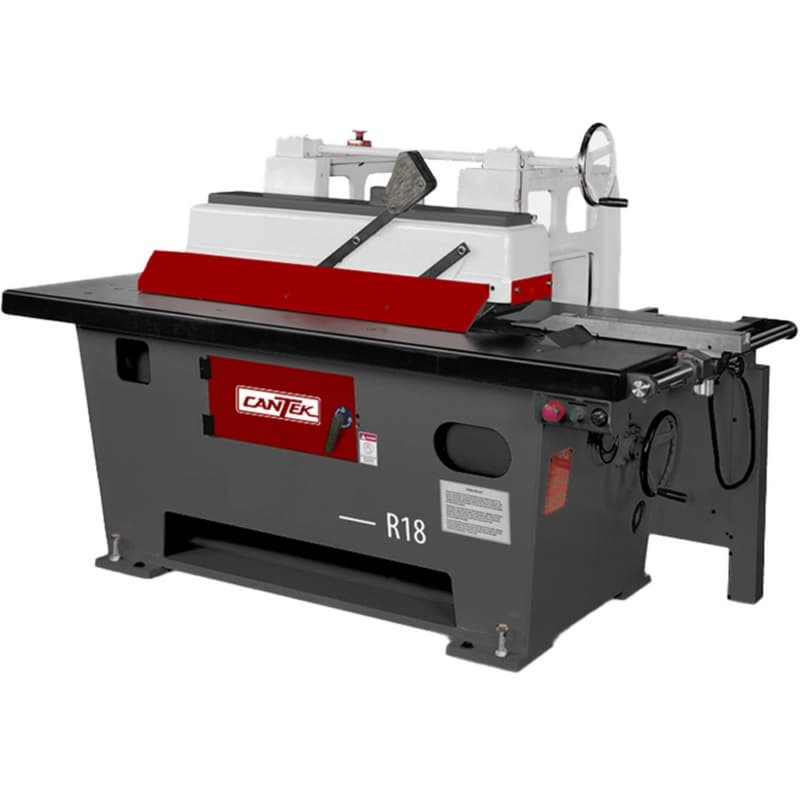

The Cantek R-18 is a robust, high-performance straight line ripsaw engineered for superior solid wood processing. Featuring a bottom-cutting mechanism, an extra-heavy-duty steel frame, and an extended 26" rip capacity, this machine is perfect for high-production environments. With a 20HP direct drive motor, an automatic feed system, and precision cast-iron components, the R-18 ensures seamless glue-joint quality cuts up to 12 feet.
Key Features:
• High-Precision Cutting – Bottom-cutting design improves hold-down stability, reduces heat buildup, and extends blade life
• Heavy-Duty Build – Thick welded steel and cast-iron construction ensures durability for large stock processing
• Optimized Feed System – 11 hold-down rollers and a 41" long chain maintain straight-line accuracy
• Enhanced Safety Features – Anti-kickback fingers, safety interlock on the access door, and a quick-stop saw arbor brake
• User-Friendly Adjustments – Manual rip fence and thickness adjustments with dual-inch/metric scales for precision.
- CFM Required: 1400 CFM
- Dust Port Size: 4"/6"
- Saw Arbor Brake System: Standard
- Sawblade Included with Machine: 14" (355 mm)
- Table Size: 78-3/4" X 40"
- Table Width to Left of Blade: 16.73" (425 mm)
- Table Width to Right of Blade: 23.23" (590 mm)
- Distance Between Saw And Column: 26"
- Feed Motor: 3 hp
- Feed Speed: 42-164 FPM
- Max. Workpiece Thickness: 3"-5"
- Saw Blade Diameter: 18"
- Shipping Weight: 3970 lbs (1800 kgs)
- Table Height: 33.46"
