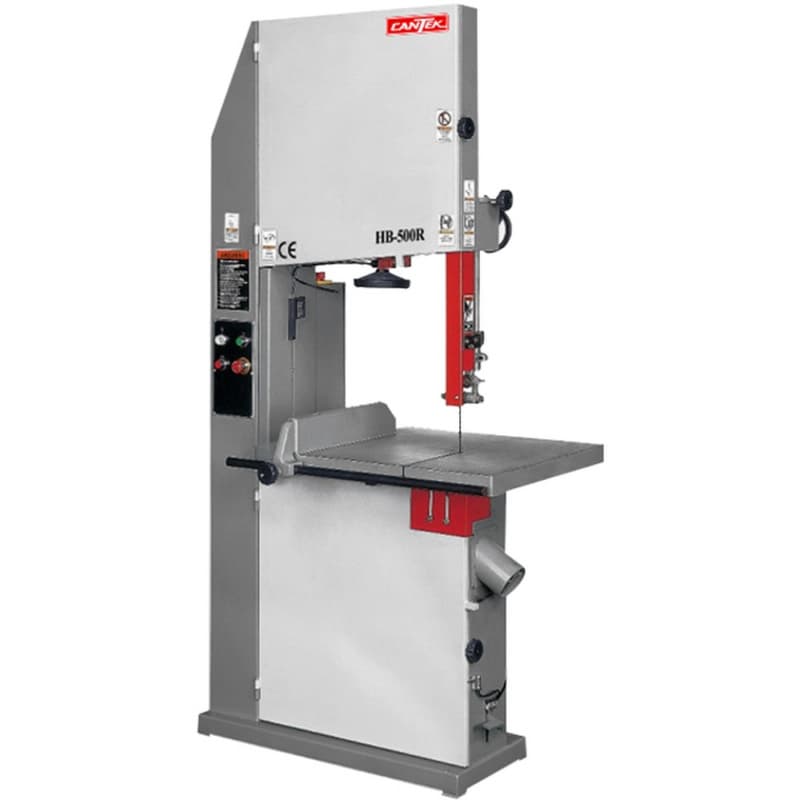

The Cantek HB500R 20" Bandsaw is designed for precision, power, and durability, making it an excellent choice for both professional and industrial woodworking applications. With a powerful 3HP single-phase motor and a solid cast iron frame, this bandsaw delivers smooth, vibration-free performance for a variety of cutting tasks. Its ability to accommodate blade sizes from 1/4" to 1-1/4" ensures versatility for both intricate and heavy-duty cuts. Featuring a user-friendly design and minimal maintenance requirements, the HB500R is built for efficiency and long-term reliability.
Key Features & Benefits
Stable and Vibration-Free Cutting with Heavy-Gauge Steel Frame
• Rigid steel construction minimizes vibrations for superior accuracy.
• Reinforced structure ensures durability for long-term operation.
• Designed to handle continuous, high-performance cutting tasks.
Superior Blade Control with Precision-Machined Cast Iron Wheels
• Dynamically balanced cast iron top and bottom wheels enhance cutting stability.
• Rubber-laminated saw wheels improve blade tracking for consistent results.
• Provides smooth blade movement, reducing inconsistencies in cuts.
Versatile Cutting with Adjustable Table Tilt
• Sturdy cast iron table tilts up to 45° for precise bevel cuts.
• Precision-machined surface ensures smooth material feed.
• Supports a variety of cutting angles for complex woodworking projects.
Easy Adjustments with Rack & Pinion Guide System
• Rack & pinion guide adjustment ensures smooth and precise height control.
• Handwheel-operated blade tension adjustment allows quick and effortless tuning.
• Upper and lower bearing guide assemblies enhance blade stability for cleaner cuts.
Enhanced Safety with Foot Brake and Included Accessories
• Foot brake allows for quick stopping of the blade, improving safety.
• Comes standard with a rip fence and mitre gauge for enhanced usability.
• User-friendly design minimizes maintenance while maximizing productivity.
- Blade Length: 156 -1/4" ~ 157-1/2"
- Blade Speed: 4450 FPM
- Blade Width: -1/4" ~ 1-1/4"
- Machine Dimensions: 38.2" x 27-1/2" x 74"
- Max. Blade Length: 156-1/4 - 157-1/2" 230/3/60 = 9.6 Full Load Amp
- Max. Cutting Height: 11-7/8"
- Motor: 3 HP
- Net Weight: 616 lbs
- Saw Wheel Diameter: 20"
- Shipping Dimensions: 77-1/2" x 22.8" x 39 -3/4"
- Shipping Weight: 770 lbs
- Throat Capacity: 18 -3/4"
