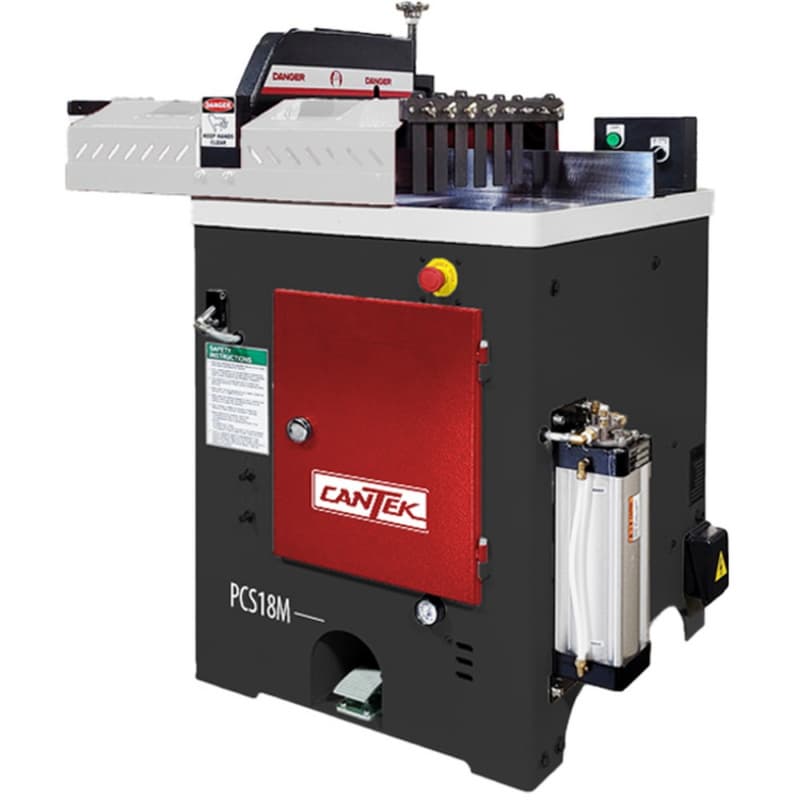

The Cantek PCS18M 18" Non-Ferrous Pneumatic Cut-Off Saw is designed to enhance crosscutting efficiency while ensuring operator safety. Powered by a robust 10HP motor, this saw handles a wide range of non-ferrous materials with precision. Its adjustable cutting stroke and pneumatic foot pedal operation provide flexibility, while the solid chrome table and advanced safety features create a secure and reliable cutting environment. Ideal for high-production settings, the PCS18M delivers fast, accurate cuts with minimal effort.
Key Features & Benefits
Optimized Cutting Performance with Large Capacity
• Cuts materials up to 2" x 12", 3" x 11", and 4" x 10", accommodating various project needs.
• Adjustable cutting stroke ensures the perfect balance between speed and cut quality.
• Capable of handling demanding workloads with consistent performance.
Precision and Speed with Pneumatic Operation
• Pneumatic foot pedal operation allows for hands-free control and adjustable cutting speed.
• Achieves up to 45 strokes per minute for fast and efficient production cycles.
• Air-over-oil system ensures precise speed control for smooth cutting performance.
Extended Blade Life with Blade Misting System
• Applies a thin lubricant film to minimize friction and heat buildup.
• Maximizes productivity while prolonging blade durability.
• Reduces material tear-out for cleaner, more accurate cuts.
Enhanced Safety Features for Secure Operation
• Equipped with infeed/outfeed safety guards, microswitches, and a saw access door security bolt.
• Zero cut line with T-clamp increases cut precision and minimizes material movement.
• CSA/UL magnetic switch provides added protection and operational control.
Durable and Corrosion-Resistant Construction
• Solid chrome table offers long-lasting resistance to wear and corrosion.
• Material clamp easily adjusts to accommodate different workpiece thicknesses.
• Designed for reliability in high-production environments.
- Air Consumption: 9.8 CFM 80 PSI
- Air Requirements: 9.8 CFM
- Arbor Diameter: 1"
- Blade Size: 18"
- Blade Speed: 3600 RPM
- Cutting Capacity: 2" x 12", 3" x 11", 4" x 10"
- Cycle Operation: Air
- Cycle Speed: 45 Strokes/min
- Dust Exhaust Diameter: Ø4"
- Gross Weight: 902 lbs
- Net Weight: 770 lbs
- Power Requirements: 230/3/60 = 28 Amps 460/3/60 = 14 Amps 575/3/60 = 11 Amps
- Saw Blade Speed: 3600 RPM
