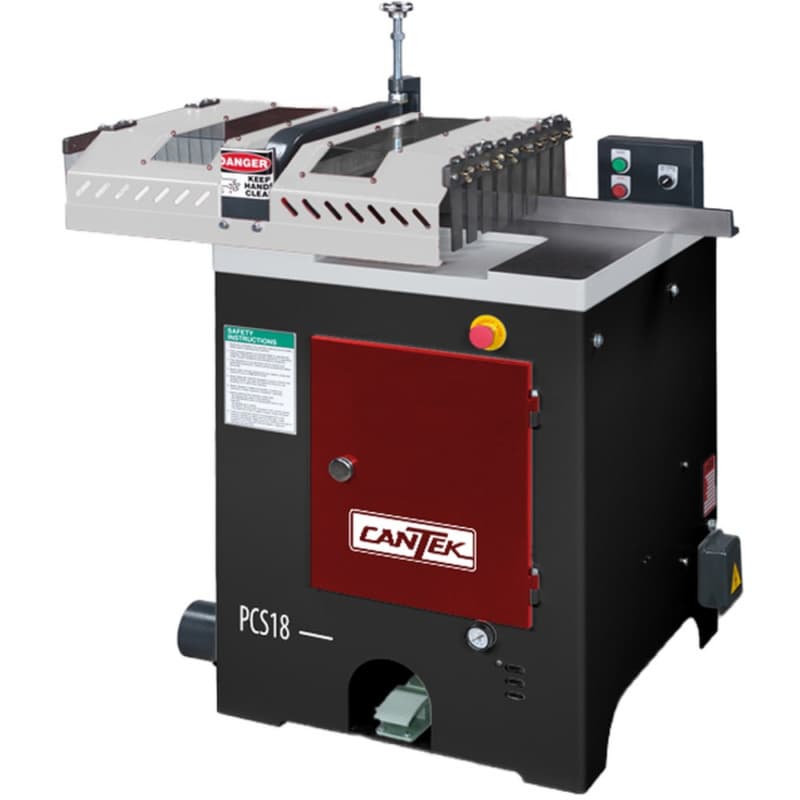

The Cantek PCS18 18" Pneumatic Cut-Off Saw is designed to streamline crosscutting operations while maintaining superior safety and precision. Powered by a robust 10HP motor, this saw delivers consistent, high-speed cutting for a variety of materials and dimensions. Its adjustable cutting stroke allows for optimized speed and accuracy, making it ideal for high-production environments. Equipped with enhanced safety features, including infeed/outfeed safety guards and microswitches on all access doors, the PCS18 ensures a secure and efficient operation. Designed for left-hand operation, this saw is also available in a right-hand configuration to suit different workflow requirements.
Key Features & Benefits
High-Speed Cutting for Efficient Workflows
• Cuts at up to 45 strokes per minute for fast production cycles.
• Adjustable cutting stroke optimizes speed and accuracy for different materials.
• Pneumatic foot pedal operation allows for effortless and controlled cutting.
Robust Versatility for Diverse Material Handling
• Handles materials from 2" x 12" up to 4" x 10" with ease.
• Adjustable material clamp accommodates workpiece thickness variations.
• Precision-ground cast iron table surface ensures consistent accuracy.
Comprehensive Safety Mechanisms for User Protection
• Infeed and outfeed safety guards provide added protection.
• Microswitches on access doors prevent accidental operation.
• Security bolt on the saw access door enhances user safety.
Heavy-Duty Construction for Remarkable Longevity
• Rugged 10HP main motor delivers powerful cutting capability.
• CSA/UL magnetic switch ensures electrical safety and reliability.
• Built for continuous, heavy-duty operation in demanding environments.
- Air Requirements: 9.8 CFM
- Arbor Diameter: 1"
- Blade Size: 18"
- Blade Speed: 3600 RPM
- Cutting Capacity: 2" x 12", 3" x 11", 4" x 10"
- Cycle Operation: Air
- Cycle Speed: 45 Strokes/min
- Dust Exhaust Diameter: Ø4"
- Net Weight: 770 lbs
- Power Requirements: 230/3/60 = 28 Amps 460/3/60 = 14 Amps 575/3/60 = 11 Amps
- Saw Arbor Diameter: 1"
- Saw Blade Speed: 3600 RPM
- Shipping Weight: 902 lbs
