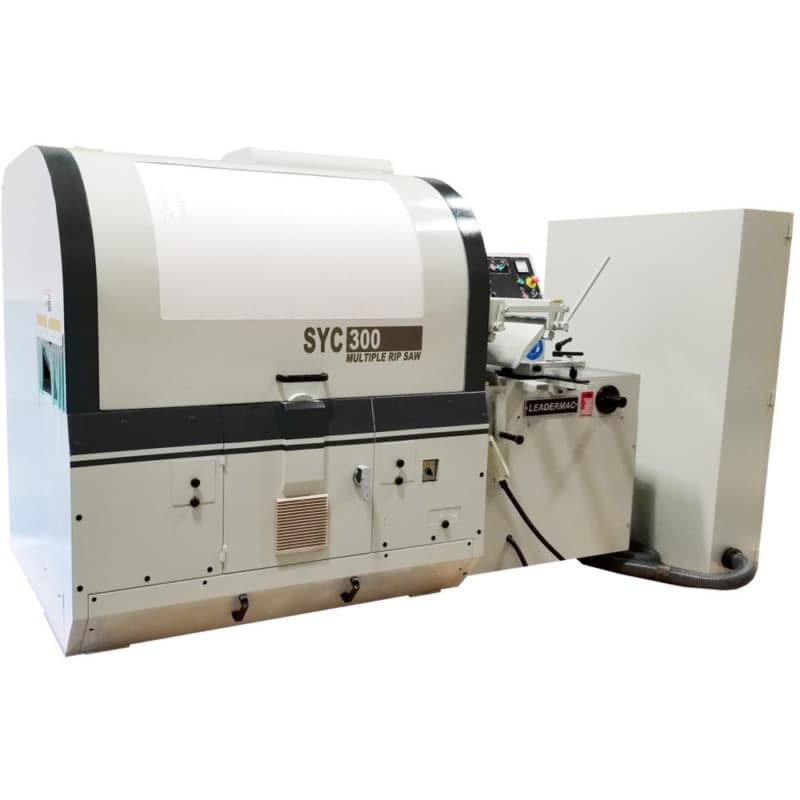

Leadermac SYC Series Roll Feed Ripsaws are created for maximum efficiency and high material yield in processing strip materials. Their innovative roll feed design and heavy-duty frame deliver smooth, precise cuts even with challenging materials.Advanced safety features and an efficient feeding system ensure reliable operation and reduced waste. Customizable to various production needs, these ripsaws provide optimal productivity and cutting accuracy for industrial applications.
Key Features and Benefits
High-Yield Roll Feed Design
• The roll feed mechanism maximizes material yield, reducing waste and improving margins.
• Provides consistent and efficient feeding for strip materials, enhancing productivity.
Heavy-Duty Frame for Stability
• Robust frame construction ensures smooth operation, even when cutting thin materials like lath.
• Reduces vibration for precise and high-quality rip cuts.
Efficient Material Feeding System
• Full-width top and bottom-driven feed rolls enable smooth feeding of various materials.
• (6) top-driven feed roll assemblies provide maximum control over the material.
• (4) bottom-driven feed roll assemblies assist in handling difficult-to-feed materials.
Advanced Safety Features
• Fully enclosed design minimizes risk and ensures operator safety.
• Multiple anti-kickback devices prevent material from moving unpredictably.
• Bottom-cutting design offers additional safety advantages compared to traditional methods.
Precision Cutting and Easy Setup
• Outboard spindle bearing support guarantees accuracy and precision in every cut.
• Blades are mounted on a removable saw sleeve, allowing operators to pre-build setups for fast changeovers.
• Variable frequency spindle drives provide adjustable RPMs and act as an electronic braking system.
Customizable to Fit Your Needs
• Available in various widths and configurations to meet different production demands and budgets.
• Multiple infeed and outfeed options enhance workflow and adaptability.
• Amp meter and zero-sensing system ensure safe and efficient spindle operation.
- Saws: 10" to 16" Diameter
- Spindle RPM: 4000 RPM (VFD control optional)
- Working Thickness: 5.1"
- Working Widths: 12", 16" & 18" (300, 405, & 455 mm) options
- Feed Motor: 5, 7.5, 10, 15, or 20 HP
- Spindle Diameter: 50 mm
- Weight: 7,700.000 lbs
