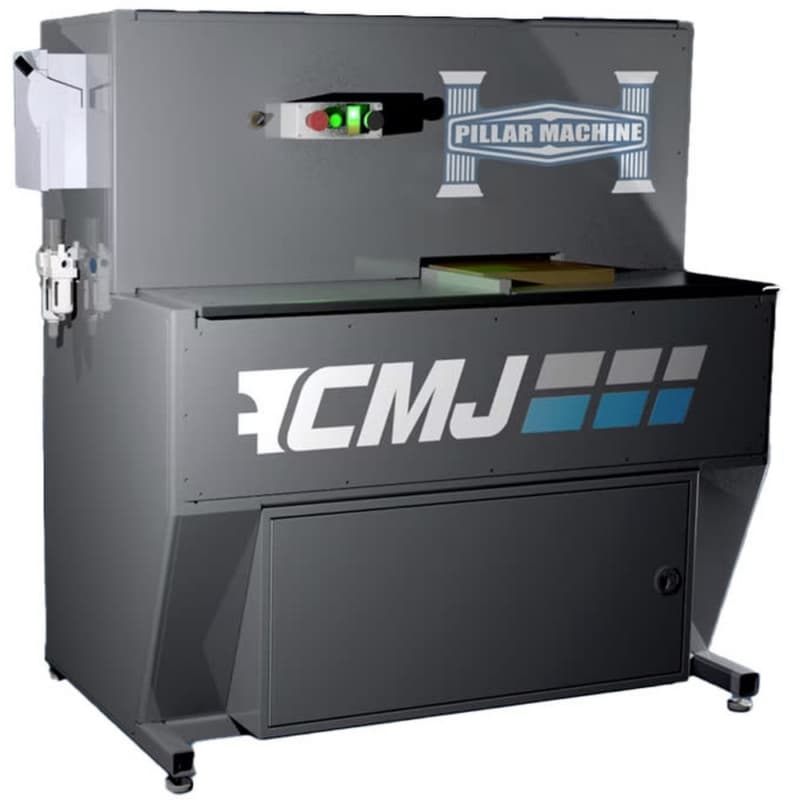

The Pillar Machine CMJ Coping Machine offers precision end coping and tenoning for rail ends without the need for back-up pieces or chip breakers. Built for medium to large shops handling multiple profiles daily, this machine delivers a rapid 6–8 second cycle time with HSK quick-change spindles, ensuring clean, tear-out-free cuts and reduced downtime.
Key Features & Benefits
Dual HSK Spindles for Quick Profile Changes
• Independent vertical spindles eliminate constant tool adjustments
• The HSK quick-release system makes switching between profiles fast and efficient
Chip-Free Finish Without Backer Boards
• No chip breakers neededcounter-rotating spindles ensure tear-out-free results on both square and profiled parts
• Delivers clean, accurate coping for superior joinery quality
Efficient and Accurate Operation
• Manual operation with PLC control ensures user-friendly handling and repeatable results
• The carriage moves while the part stays fixed, ensuring precise stability and alignment
Secure Clamping for Safer Machining
• Side and top clamps keep the workpiece firmly in place for secure operations
• Dual air-locking spindles guarantee vibration-free cutting
- Weight: 1,600.000 lbs
- Dust Port: 2 @ 4"
- Working Thickness: 1"
- Min. Part Length: 3"
- Min. Width: 1.5"
- Max. Width: 12"
- Min. Thickness: 1/2"
- Depth of Cut: 5/8"
- Electrical: 3 Phase, 208 – 230 V, 60 cycles, 30 Amps
- Air Requirements: 90 psi at 5 CFM
- Total CFM: 696
- Width: 52"
- Depth: 30"
- Height: 57"
