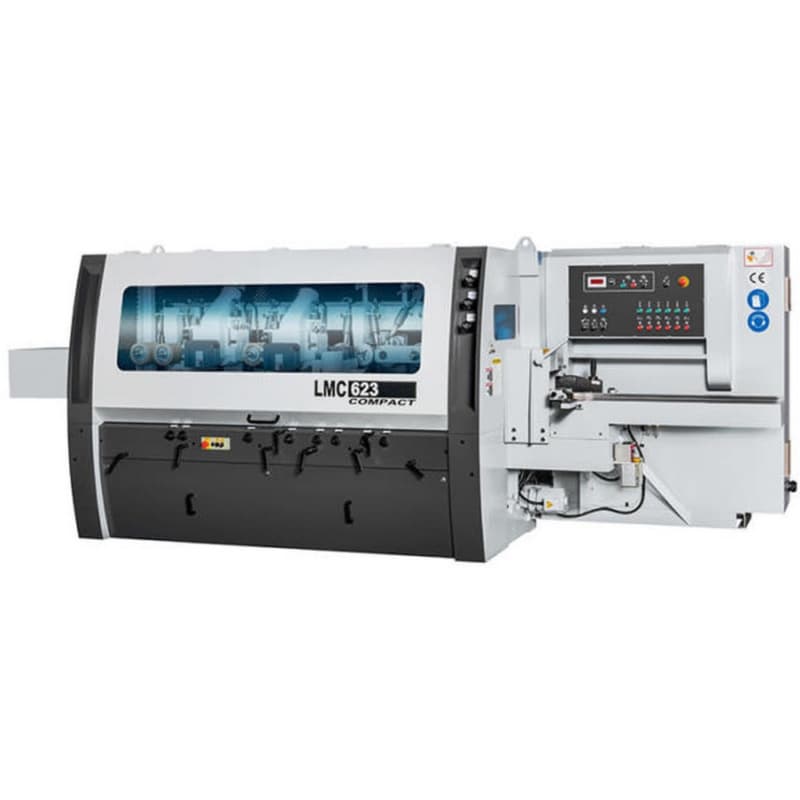

The Leadermac Compact Moulder Series is designed for high-quality production with precision, repeatability, and smooth feeding across complex profiles. Its cast iron construction, advanced spindle technology, and fast setup systems ensure durability and efficiency. User-friendly controls make it suitable for both small workshops and industrial operations. Built to minimise downtime, it delivers consistent finish quality with ease.
Key Features & Benefits
Heavy-Duty Frame for Superior Finish & Long Life
• Solid cast iron frame minimizes vibration, helping produce smoother, high-quality surfaces.
• Enhanced stability extends bearing and machine life, reducing long-term maintenance costs.
• Built for continuous operation, it handles demanding production environments with ease.
Precision Spindles for Flawless Surface Quality
• 6000 RPM spindles with ABEC 6 bearings provide exceptional cutting accuracy and finish.
• Each spindle is independently motor-driven, ensuring consistent power and precision.
• 7200 RPM spindles (optional) allow for even faster feed speeds and finer detail.
Smooth Material Feeding for Consistent Throughput
• Tightly coupled machine design ensures smooth and controlled feed of each workpiece.
• Full-width driven infeed and outfeed bed rolls maintain steady and reliable movement.
• Short stock feed roll station is ideal for feeding smaller parts without jams.
Quick Changeovers to Maximize Productivity
• Dual SIKO quick-set counters make size adjustments fast and highly accurate.
• Smartset 100 or Easy set systems (optional) provide touchscreen controls with memory presets.
• Axial front adjustment of the last bottom head saves time during profile changes.
Reliable Pneumatics for Consistent Results
• Pneumatic hold-down and side pressure systems ensure uniform material contact with the fence.
• Chip breakers and top feed rolls receive controlled air pressure, promoting smoother cuts.
• Programmable lubrication systems keep the machine running clean and efficiently.
Built-In Safety & Maintenance Features
• Standard safety sound enclosure protects operators and reduces noise.
• Centralized grease lubrication system simplifies maintenance routines.
• Anti-kickback and rip bed plate options enhance safety for specialized tasks.
- Weight: 11,650.000 lbs
- No. of Spindles: 46031
- Spindle RPM: 6000 RPM (7200 Opt)
- Working Width: 0.6" to 9", 12" and 13" Optional
- Working Thickness: 0.25"-6"
- Standard Feed Speed: 20 to 80 FPM (Faster Opt)
- Axial Adjustment of Vertical Spindles: 1.6"
- Axial Adjustment of Horizontal Spindles: 0.8"
- Min. Part Length: 8"
- Infeed Bed Length: 78" (2 m) – Standard. 98" (2 m) or 120" (2.5 m)
