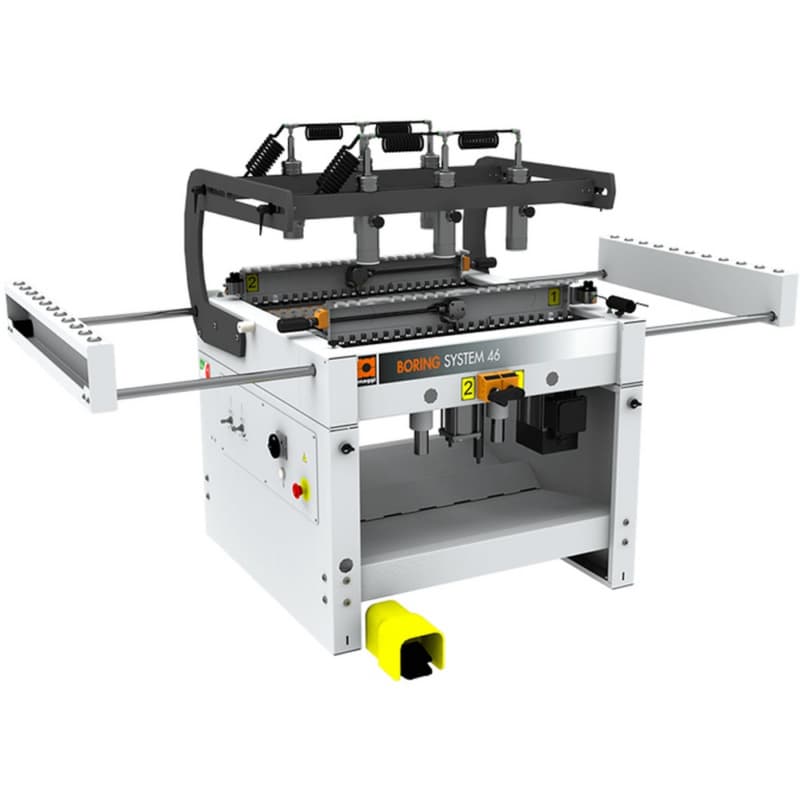

The Maggi Boring System 46, 3 Phase, is a powerful and efficient Mult spindle boring machine designed for high-speed vertical drilling. Ideal for double-row line drilling on furniture sides, it's particularly well-suited for bookcase, bookshelf, and wardrobe manufacturers. With a compact 2 sqm footprint, this system delivers more speed and precision than single-head models, offering a space-efficient, high-performance solution for your drilling needs. Backed by over 30 years of experience and 5,000 machines manufactured, this product is 100% made in Italy under the highest quality standards.
Key Features & Benefits
Compact and Efficient Design
• Small footprint of just 2 sqm, saving valuable workspace
• Faster than single-head boring machines, allowing for improved productivity
• Space-saving design without compromising on performance
High-Performance Dual Boring Heads
• N.2 parallel vertical boring heads with 23 spindles each, ensuring precision and speed
• Distance between heads: Max 650 mm / Min 130 mm, allowing flexibility for various panel sizes
• Quick-change spindles for easy tool replacement, reducing downtime
Superior Drilling Accuracy and Depth Control
• Boring-depth adjustment on numeric counters, providing consistent drilling depth
• Precise inter-axis distance of 32 mm ensures accurate spacing for each hole
• Adjustable to varying material thicknesses, offering versatility across jobs
Ready for Dust Collection
• Dust collector compatibility ensures a clean, safe work environment
• Manufactured to EC standards, ensuring compliance with health and safety regulations
• Minimizes airborne dust, improving the overall quality of the workspace
Durable and Reliable Motor System
• N.2 - 1.5 HP motors (3 Phase) for powerful, consistent performance
• Energy-efficient design to reduce operational costs
• Durable motors designed to withstand heavy-duty use
Enhanced Support and Adjustability
• N.6 patented, safety hold-down clamps to secure materials during drilling
• N.2 extendable panel holders on both sides to handle larger materials
• Boring-height adjustment via numeric counters for ease of operation
- Max. Tool Diameter: 40 mm
- Max. Boring Height: 65 mm
- Max. Panel Thickness: 50 mm
- No. Of Spindles: 23
- Spindle Spacing: 32 mm
- Type: Multi-Head
- Phase: 3 ph
- Left And Right Spindles: N. 11 - N. 12
- Work Table Height: 875 mm
- Min/Max Distance Between Heads: 145 - 625 mm
- Gross Weight: 361 Kg
- Air Consumption: NL 20
- Dust Collection Hood Diameter: 80 mm
- Min/Max Distance Between Front Head: 160 mm – 639 mm
- N-Deg Motors: HP 2 / KW 1,5 - RPM 2800 (x 2)
- Overall Dimensions: 1206 mm x 1180 mm x 1163 mm (2236 x 1180 x 1163 mm) (3000 x 1180 x 1163 mm)
- Standard Pneumatic Pressure: BAR 6/8
- Weight: 940 lbs
- Handling Fee: 349
