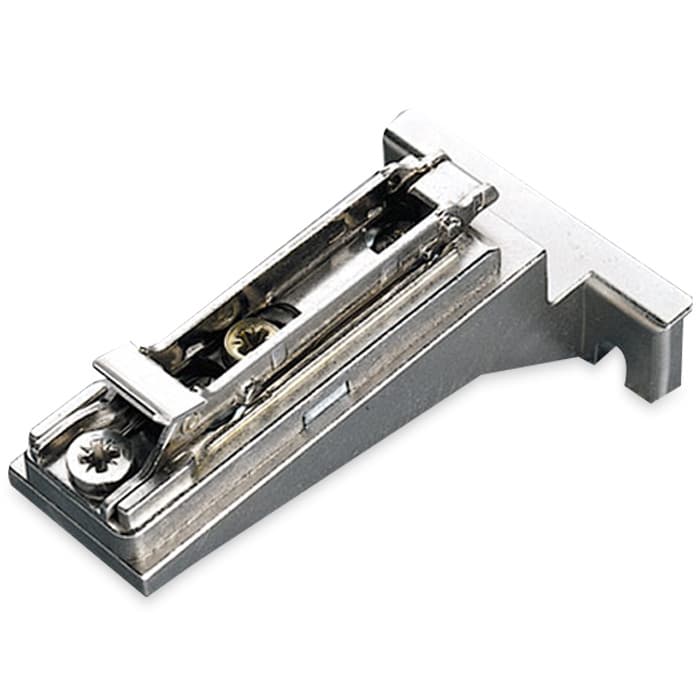

Domi 2-Cam Adjustable Face Frame Mounting Plate, Nickel-Plated, Screw-On, 5mm

Domi 2-Cam Mounting Plate For Inset Hinges

Domi 2-Cam Adjustable Face Frame Mounting Plate gives a 5 mm thick base for inset hinge applications, so doors sit correctly in relation to the face frame without extra shimming during installation. Constructed of die-cast steel, the mounting plate provides a rigid base that helps hinges hold alignment over time on working cabinet doors. The nickel plating resists corrosion, which supports consistent operation in typical shop and jobsite environments where moisture or cleaners are present. Designed as a screw-on style plate, it fastens directly to the face frame, so installers can position it precisely where hinge geometry requires. As a hinge mounting plate in the Salice America line, the BAL3R59 part number clearly identifies this specific configuration when matching to hinge layouts or ordering for repeat work on the same cabinet program.

Key Face Frame Plate Details For Installers

• The die-cast steel construction creates a solid mounting platform that helps keep hinge arms stable on face frame cabinets, which matters when doors are opened and closed repeatedly in daily use.
• Nickel plating on the plate surface resists corrosion, so hinge settings are less affected by humidity or cleaning products over the life of the cabinet installation.
• Two cam plates on the mounting plate allow 0.5 mm to +2.8 mm cam depth adjustment, giving room to fine-tune the door position relative to the face frame after the hinges are installed.
• The same cam system provides plus or minus 2 mm cam height adjustment, which lets installers correct small drilling or layout variances without remaking holes or moving the plate location.
• The 5 mm thickness is suited to inset applications, so the hinge geometry supports doors that sit inside the frame rather than overlaying it, helping maintain consistent reveal lines.

Mounting Plate Fit, Thickness, And Adjustment

This Salice hinge mounting plate is specified as screw-on, so it installs by driving fasteners through the plate into the face frame, which supports straightforward positioning during cabinet assembly or retrofit work. With a 5 mm thickness, it is intended for inset applications where the door lies within the frame opening, giving hinge arms the spacing they need to align the door plane with surrounding frame edges. The two integrated cam plates provide 0.5 mm to +2.8 mm depth adjustment and plus or minus 2 mm height adjustment, allowing the installer to shift the door in and out and up or down without moving the base plate position. As a hinge base plate, BAL3R59 works as the interface between the cabinet structure and the compatible hinge arm within Salice systems.

Using The BAL3R59 Plate In Cabinet Work

Where This Salice Mounting Plate Fits Best

This hinge base plate is part of the Salice America offering in hinge mounting plates, so it fits workflows that standardize on that manufacturer across a cabinet line. As a face frame mounting plate in the hinge base plates class, it suits cabinet construction where the frame defines the opening and the door must sit inset within that frame. The 5 mm thickness aligns the hinge arm with an inset door position, which helps maintain a flush appearance between the door front and the surrounding face frame. Because the web description notes use for inset applications, this configuration supports projects such as built-ins or furniture-style cabinets where the design calls for doors that sit within the frame boundaries rather than overlaying them. The nickel-plated finish on the die-cast steel body maintains a consistent appearance wherever the plate remains visible during door movement.

Why The 2-Cam Adjustment Range Matters

The two cam plates built into this mounting plate supply 0.5 mm to +2.8 mm of depth adjustment, giving a window to set how far the door face sits relative to the frame front after hanging. That adjustment allows the installer to correct for minor drilling tolerances or door thickness variation using the cam instead of relocating the entire hinge layout, which saves time during final fitting. The plus or minus 2 mm cam height adjustment lets the door move up or down relative to the plate, which helps align top and bottom reveals across a run of doors on the same cabinet. Together, these cam adjustments support fine-tuning without altering screw locations, which is important when working in hardwood face frames where extra holes are undesirable. As a die-cast steel component, the mounting plate gives those adjustments a firm mechanical base so the settings stay repeatable from door to door within the same installation.

Common Questions About The BAL3R59 Mounting Plate

Selecting This BAL3R59 Plate For Inset Work

The Domi 2-Cam Adjustable Face Frame Mounting Plate, BAL3R59, combines die-cast steel construction, nickel plating, and a 5 mm thickness tailored for inset applications, so it supports precise alignment on face frame cabinets. With cam plates providing 0.5 mm to +2.8 mm depth and plus or minus 2 mm height adjustment, it gives flexibility for final door fitting without redrilling. For cabinet shops and installers working within Salice America hinge systems, this hinge mounting plate offers a defined part number and adjustment range for repeatable inset door layouts. Use it where a face frame structure and inset doors call for controlled positioning from a dedicated hinge base plate.
