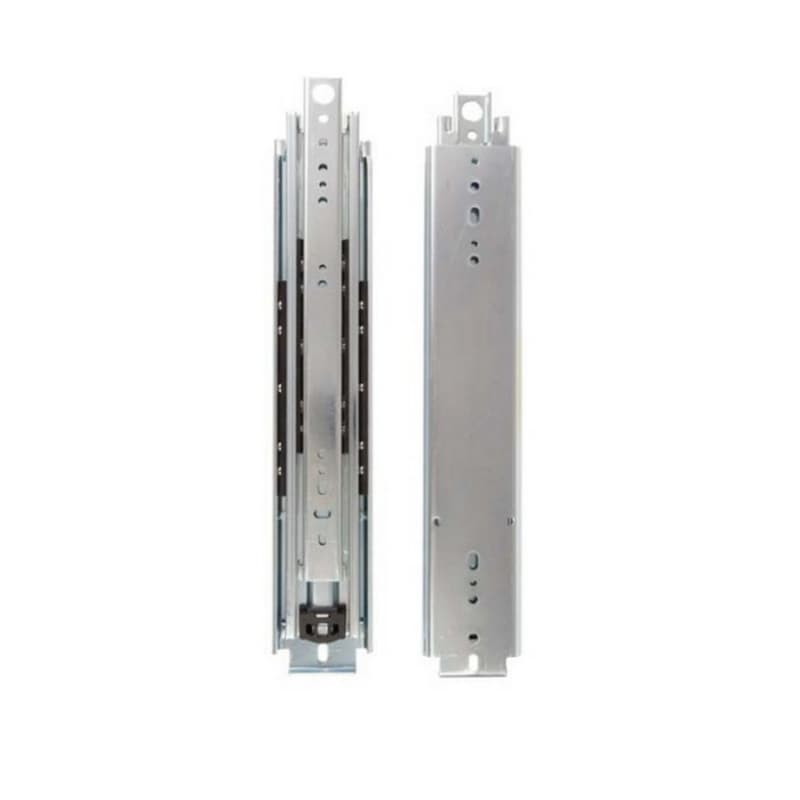

Knape And Vogt 20 Inch Full Extension Drawer Slides

Knape and Vogt 20 inch full extension drawer slides use the 8900 Series side mount design to support extra heavy-duty applications where drawers must open fully for clear access. The full extension travel moves the drawer out to its working position, so tools, parts, or stock are reachable without working over a partial opening. The side mount configuration positions the slides on the cabinet sides, which suits shop and built-in casework using standard carcass construction. A non-handed design means each slide works on either the left or right, which simplifies layout and reduces sorting on the bench. These 8900P 20 slides use heavy duty ball bearings that carry the rated loads while maintaining smooth movement, helping drawers track consistently under weight. The non-disconnect feature keeps the drawer member captive to the cabinet member, which matters where drawers carry heavy contents and must stay engaged during use.

Key 8900P 20 Details That Support Heavy Loads

• The 20 inch length suits cabinets designed around standard-depth drawers, aligning with typical shop and storage carcass dimensions so drawer boxes can be sized efficiently for full access.
• A 3 inch height slide profile provides substantial bearing area along the drawer side, which supports stability when drawers are cycled under heavy contents in daily use.
• Side clearance of 3/4 inch sets a clear target for drawer box sizing between cabinet sides, helping installers cut and assemble boxes to fit the slides without repeated adjustments.
• The non-handed design means each slide can serve either side of the drawer, which streamlines installation and reduces the chance of mixing left and right members during production.
• Heavy duty ball bearings support extra heavy-duty applications without sticking, which helps drawers open and close predictably even when loaded with dense tools, hardware, or parts.
• The non-disconnect configuration keeps the drawer and cabinet members engaged, which is important where drawers are frequently cycled under load and must stay securely guided.

Side Mount Installation And Slide Fit Details

These Knape and Vogt 8900P 20 slides use a side mount layout, so they fasten directly to the cabinet sides and drawer box sides for a straightforward, linear installation path. A specified side clearance of 3/4 inch defines the gap between cabinet sides and drawer box, which guides cutting widths and layout for repeatable fit across a run of cabinets. The slide height of 3 inches affects vertical placement on tall drawer boxes, helping determine where to position the members for balanced support. Recommended fasteners are #10 flat head machine screws on the cabinet member, giving the cabinet-side attachment a robust mechanical connection that suits extra heavy-duty use. The 32mm pattern is noted as no pattern, so hole layout can follow shop standards or jigs without aligning to a fixed 32mm system.

Using Knape And Vogt 8900 Slides In Real Projects

Where These 20 Inch Slides Work Best

The Knape and Vogt 8900P 20 extra heavy-duty slides fit projects where drawers carry substantial weight and still need full extension travel. In shop cabinets or service vehicle casework, the 20 inch length lets drawers reach out far enough for bins, tools, or hardware to be accessed from the front. The side mount configuration matches common cabinet construction, so installers can integrate the slides into plywood or composite carcasses without changing basic joinery. With a 3 inch tall profile and 3/4 inch side clearance, these slides pair well with robust drawer boxes that span wider openings, giving lateral support along the full length of the member. The non-disconnect design keeps the drawer captured on the slide members, which is useful in work environments where drawers are pulled with force and must stay guided on their tracks.

Details That Help Repeatable Mounting And Performance

The 20 inch full extension stroke allows consistent set-out across a bank of drawers, so fronts align when closed and all drawers project to the same working distance when open. Heavy duty ball bearings support this travel under load, helping the slide run smoothly and resist sticking even when drawers are packed with dense material. Using #10 flat head machine screws on the cabinet member gives the fixed side of the slide a strong anchoring point, which supports long-term performance in extra heavy-duty applications. The non-handed design reduces layout decisions, because each slide body can swap between left and right without affecting function, which supports efficient assembly in both small shops and production environments. The non-disconnect configuration means the slide parts stay engaged throughout travel, which supports predictable operation when drawers are operated repeatedly during daily work.

Common Questions About 8900P 20 Drawer Slides

Selecting These Slides For Heavy Duty Drawers

The Knape and Vogt 8900P 20 full extension side mount slides combine a 20 inch length, 3 inch height, and 3/4 inch side clearance to support substantial drawers in extra heavy-duty applications. Their heavy duty ball bearing construction and non-disconnect design keep motion controlled under load, while the non-handed layout simplifies setup. For projects that call for robust hardware and predictable drawer travel, these slides align well with demanding shop and commercial cabinet builds.
