Knape and Vogt 24 Inch Drawer Slides For Heavy Use

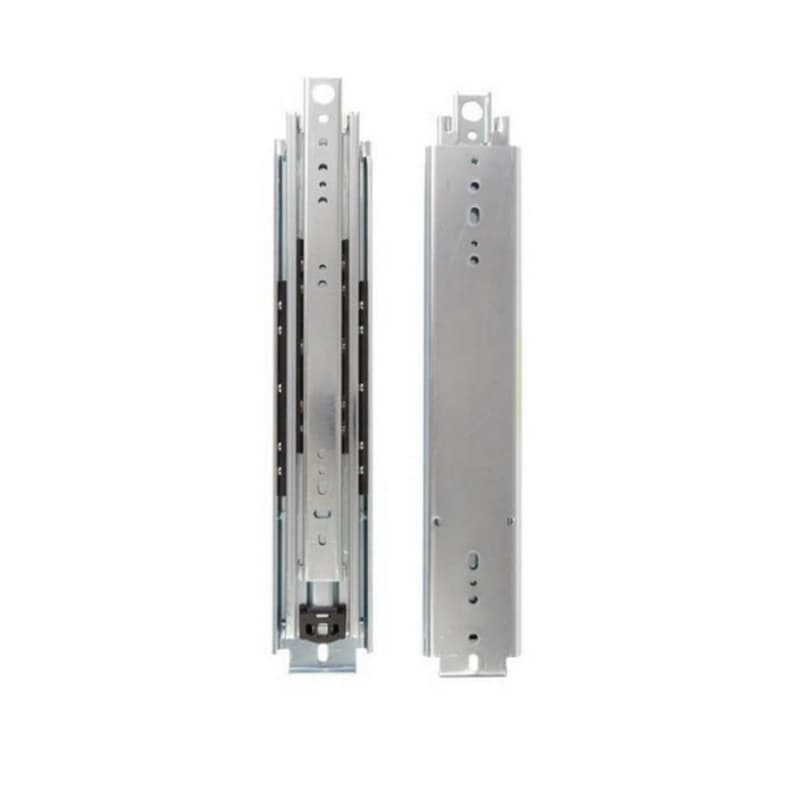

Knape and Vogt 24 inch drawer slides in the 8900 Series are full extension, side mount ball bearing slides, so a 24 inch drawer can travel its full length and expose the contents for direct access. The heavy duty ball bearings are designed to carry the heaviest loads without sticking, which keeps wide or deep drawers moving smoothly when fully loaded. A non-handed design allows either left or right side mounting from the same member set, which simplifies layout and reduces part sorting during install. These slides are listed as extra heavy-duty applications, so they support demanding storage in shops, commercial casework, or utility drawers. A non-disconnect configuration keeps the drawer member captive on the cabinet member, which helps maintain alignment in high-load drawers once everything is fastened.

Key Drawer Slide Details That Support Demanding Jobs

• Full extension travel on these 24 inch slides lets the drawer open completely, which helps installers deliver accessible storage in cabinets where clients need clear visibility to the rear.
• The side mount design places the drawer members along each cabinet wall, which suits standard side clearance construction methods in many casework and shop-built drawer boxes.
• Heavy duty ball bearings are specified to carry the heaviest loads without sticking, which supports drawers loaded with tools, hardware, or dense materials in daily use.
• The non-handed design allows either side installation from the same parts, which streamlines inventory and speeds on-site work because no right- or left-hand selection is required.
• A non-disconnect configuration keeps the drawer and cabinet members engaged, which helps maintain slide alignment in drawers that experience frequent forceful closing or heavy contents.
• The zinc finish provides a uniform metal surface on the slide members, which suits typical indoor cabinet and shop environments where a plated steel slide is standard.

Side Mount Drawer Slide Fit And Fastening Details

These Knape and Vogt 8900P 24 drawer slides are side mount members with a specified side clearance of 3/4 inch, so the cabinet and drawer sizing can be laid out around that clearance dimension. The slide height is listed at 3 inches, which affects how tall the drawer side can be before interfering with the slide profile. The manufacturer recommends a #10 flat head machine screw on the cabinet member, giving installers a specific fastener style and size for anchoring into steel brackets or prepared cabinet structures. The 8900 Series is identified as non-disconnect and full extension, meaning the drawer member rides the full travel distance while remaining engaged on the cabinet member to support high loads throughout the stroke.

Where These 8900P 24 Slides Fit And Why Details Matter

Using Knape And Vogt 8900 Series Slides In Heavy Drawers

The Knape and Vogt 8900 Series 24 inch full extension ball bearing slides are described as designed for extra heavy-duty applications, so they are suited for drawers that carry significant weight in commercial millwork, shop fixtures, or utility cabinetry. With a side clearance of 3/4 inch, these slides work in drawer systems built around that clearance, letting builders size drawer widths and cabinet openings to match the specified gap. The 3 inch height of the slide body means it can sit along taller drawer sides without interfering with bottom clearance in many standard drawer constructions. Full extension travel on a 24 inch member allows deep drawers to pull completely out of the cabinet, which is particularly useful when storing long or bulky items that might otherwise get lost toward the back.

Heavy duty ball bearings in the 8900 Series are specifically noted as carrying the heaviest loads without sticking, which supports smooth operation when drawers are filled with hardware bins or heavy tools. The non-handed design of these slides means each pair can be mounted on either the left or right side, so installers do not need separate SKUs for each side, simplifying planning on large runs of cabinets. The non-disconnect configuration ensures the drawer member stays engaged with the cabinet member during travel, which is significant for heavy drawers because it helps the assembly stay aligned when opened to full extension or when subject to frequent impact during closing. The specified #10 flat head machine screw on the cabinet member gives a defined fastener approach that matches the slide design, supporting secure mounting into the cabinet structure or brackets built for machine-screw attachment.

Common Questions About Knape And Vogt 24 Inch Slides

Select Knape And Vogt 8900P 24 Slides For Heavy Drawers

The Knape and Vogt 8900P 24 full extension side mount slides combine a 24 inch length, 3/4 inch side clearance, and 3 inch height with heavy duty ball bearings for extra heavy-duty applications. The non-handed layout and non-disconnect configuration support high-load drawers that need consistent alignment and full travel. With a recommended #10 flat head machine screw for the cabinet member, these slides give installers a clear fastening approach when building or upgrading demanding drawers.
