Knape And Vogt 8900P 34 Drawer Slides For Heavy Use

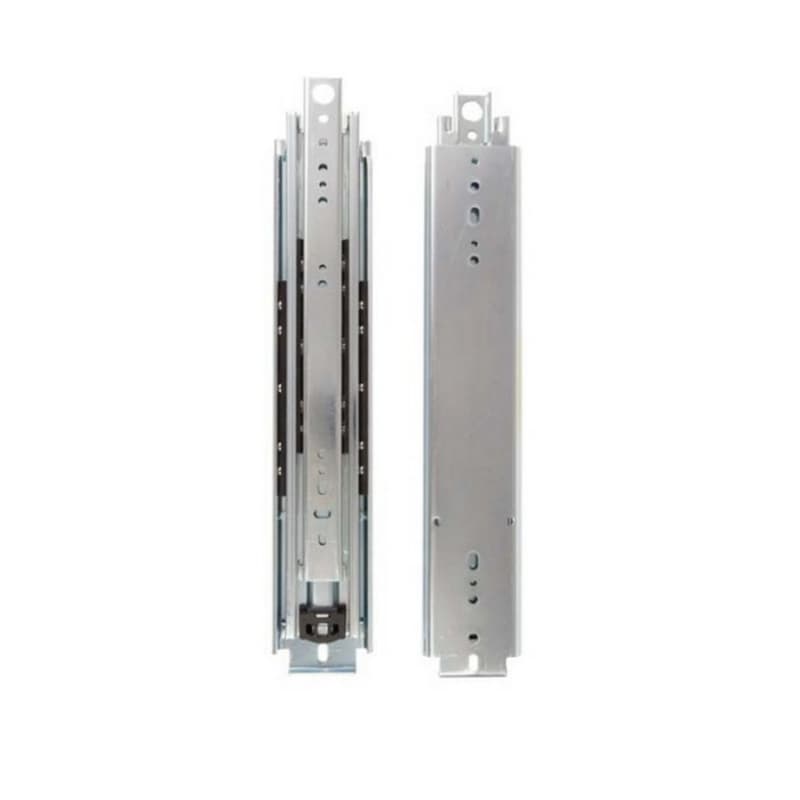

Knape and Vogt 8900P 34 drawer slides are 34 inch full extension side mount ball bearing slides, so drawers travel their full length to expose the entire contents, which helps during installation, adjustment, and daily use in deep cabinets. The slides are part of the 8900 Series and are classified as extra heavy-duty applications, so they are built to handle demanding drawer loads where lighter slides can deform. A 3 inch height on the slide helps distribute weight along the cabinet member, which supports stability on tall or wide drawers under load. Side clearance is 3/4 inch, so cabinet and drawer construction can be laid out to a clear, repeatable dimension across a bank of drawers. The zinc finish gives the steel runners a bright, clean look that fits typical shop and commercial interiors while making measuring and marking easier along the member.

Key Drawer Slide Details That Support Your Build

• The full extension design allows the 34 inch drawer slides to open the drawer to its complete length, which improves access to rear contents and helps when setting clearances around doors or adjacent casework.
• The side mount configuration matches common cabinet construction, so the slides fasten to cabinet sides and drawer sides, helping installers retrofit or standardize across projects using the same mounting approach.
• Heavy duty ball bearings are specified to carry the heaviest loads without sticking, so drawers can move smoothly even when loaded with dense materials that push typical hardware toward its limits.
• The non-handed design for easy installation means each slide pair does not require separate left and right parts, so stocking and layout on the job are simpler and orientation errors are reduced.
• The non-disconnect construction keeps the drawer member captured in the cabinet member, which reduces accidental drawer removal in service and helps keep heavy drawers supported during use.
• The zinc finish on these ball bearing slides provides a consistent surface along the steel members, which aids in smooth bearing travel and offers a neat appearance in open or utility cabinetry.

Side Mount Installation And Fastener Interface

These Knape and Vogt side mount slides use a specified side clearance of 3/4 inch, which sets the gap between drawer and cabinet and gives builders a fixed reference for sizing drawer box widths. The recommended fasteners are #10 flat head machine screw on the cabinet member, so the mounting holes are sized and positioned with that shank and head style in mind for secure seating. A 3 inch height on the slide body offers a tall bearing track for the screws to clamp against, which supports rigidity along the length of the cabinet member under heavy loads. The slides do not use a disconnect feature, so installation and removal routines are based on the assembled drawer and slide staying together, which suits drawers that are not meant to be removed frequently.

How These 8900 Series Slides Work In Practice

Where 34 Inch Side Mount Slides Fit Best

The 34 inch length of the 8900 Series slide suits deep drawer boxes where full-extension travel is needed to reach tools, fixtures, or stock stored at the back of the cabinet. The extra heavy-duty application rating signals that these slides are intended for drawers that see substantial weight, so they align with shop storage, commercial casework, or other cabinetry where dense items are loaded into large drawers. A 3 inch high slide profile creates a substantial engagement footprint on the cabinet side, which is helpful when spanning wide drawer widths that generate leverage on the hardware. The 3/4 inch side clearance spec ties the cabinet opening and drawer box together with a clear dimension, simplifying layout across multiple units in a run of casework where repeatable fit reduces adjustment time.

The non-handed design plays a key role when installing multiple pairs of Knape and Vogt side mount slides on a project, because each member can be used on either side of the cabinet, reducing sorting steps and helping maintain consistent alignment. Heavy duty ball bearings are specified to carry the heaviest loads without sticking, which allows a fully built drawer to be cycled repeatedly without binding at mid-travel. The non-disconnect construction keeps the drawer member engaged with the cabinet member for the life of the installation, which is valuable on heavy drawers where accidental pull-out could damage the slide, cabinet, or contents. Using #10 flat head machine screw on the cabinet member provides a flush-mounted head sitting within the countersunk holes of the slide, helping the bearing members pass cleanly over the fastener heads during operation. The full extension action combines with these details to support a drawer that opens smoothly to its full length and returns to a consistent closed position, which helps in precise face and reveal alignment.

Common Questions About 8900P 34 Drawer Slides

Select Knape And Vogt 8900P Slides For Heavy Drawers

The Knape and Vogt 8900P 34 drawer slides combine full extension, side mount installation, and heavy duty ball bearings, so they handle extra heavy-duty applications where 34 inch travel is required. The 3/4 inch side clearance, 3 inch height, and non-handed design simplify cabinet layout and streamline installation across multiple drawers. With a non-disconnect configuration and recommended #10 flat head machine screw on the cabinet member, these 8900 series slides support stable, long drawers that are built to stay in place under load. Use this model when a 34 inch, zinc-finished, extra heavy-duty side mount ball bearing slide matches your cabinet design and load expectations.
