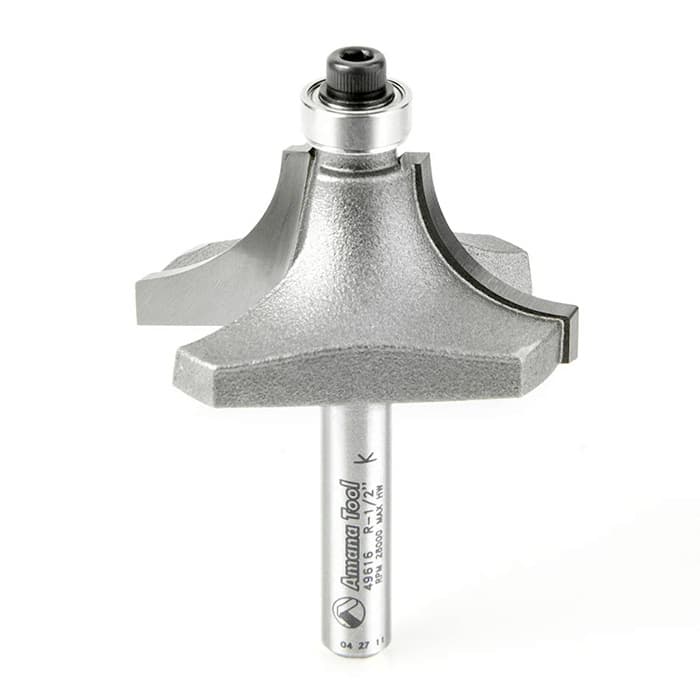

Amana Tool 49616 beading bit 1-1-2 inch diameter

Amana Beading Bit For Clean Edge Forming

Amana Tool 49616 beading bit cuts a quarter-round shape bounded by fillets in a single pass, so you create a clean bead profile without extra setup steps on the router table or handheld router. The edge forming beading carbide tip bit with bottom mount ball bearing guide 2 flute 1/4 inch shank design keeps the profile consistent as the bearing rides the workpiece edge during the cut. The bit diameter of 1-1/2 inch defines a generous bead size that reads well on cabinet parts, trim, and furniture components. A 1/2 inch radius profile shapes a true quarter-round, giving a balanced, repeatable decorative detail. The 3/4 inch cutting height lets you profile common stock thicknesses while keeping the router bit engaged and stable along the full cut length.

Key Beading Bit Details That Speed Your Work

• The carbide tip cutting edges handle the beading cut so the quarter-round profile stays sharp over repeated passes, which helps maintain consistent bead geometry from part to part on a job.
• The bottom mount ball bearing guide sets the width of one fillet at the edge, so the bearing establishes a repeatable reference against the stock for uniform bead placement along long workpieces.
• The 2 flute design provides balanced cutting action, so the bit tracks smoothly through the material and supports a clean surface on the formed bead and fillets.
• The 1/4 inch shank fits routers taking that shank size, so installers and woodworkers can use common routers while still running a 1-1/2 inch diameter profile bit.
• The overall length of 2-1/4 inch keeps the cutting portion compact, which helps control deflection and vibration as you form the bead profile along edges.

Edge Forming And Profile Change In Use

This edge forming beading carbide tip bit with bottom mount ball bearing guide 2 flute 1/4 inch shank is built to cut a bead in one pass, so you move steadily along the edge without multiple depth adjustments. The width of one fillet is set by the pilot bearing size, so that side of the bead automatically tracks from the edge while you focus on feed rate and hold-down. The other fillet is controlled by the depth of cut, letting you fine-tune how the bead blends into the face of the workpiece by adjusting router depth. A beading bit can be transformed into a corner rounding bit by changing the bearing, so the same profile geometry can be used either to leave both fillets or to create a simple quarter-round on the edge.

Where This Beading And Rounding Bit Fits

Quarter-Round Bead Profiles On Edges

The Amana Tool 49616 beading bit is part of the edgeforming router bits class, so it is suited for running decorative edges on cabinet doors, drawer fronts, trim, and furniture parts. The 1-1/2 inch diameter combined with the 1/2 inch radius builds a noticeable quarter-round shape, giving visual depth to face-frame edges or table aprons in a single pass. Because the cutting height is 3/4 inch, the bead can fully form along the edge of many typical boards without leaving a partial radius, which keeps the profile looking intentional across a run of parts. As the bottom mount ball bearing guide follows the edge, the bit maintains a steady relationship to the workpiece, which supports smoother motion whether you are routing on a table or with a handheld router.

Profile Control For Repeatable Results

The bottom mount ball bearing guide sets the width of one fillet, so every pass with the same bearing size produces the same outer land at the edge, which matters when matching profiles across multiple doors or rails. Because the other fillet is controlled by the depth of cut, small router depth changes let you decide how deeply the quarter-round blends into the face, helping align the look of the bead with surrounding profiles. The ability to transform a beading bit into a corner rounding bit by changing the bearing means you can use the same cutting geometry for either a detailed bead or a simple roundover, which helps keep profiles consistent across different edge treatments on a project. The 2 flute layout and 1/4 inch shank work together to balance cutting forces, supporting smoother passes that reduce rework on the shaped edges.

Common Questions About This Beading Router Bit

Select This Beading Bit For Defined Edge Profiles

The Amana Tool 49616 beading bit combines a 1-1/2 inch diameter, 1/2 inch radius, and 3/4 inch cutting height to form a complete quarter-round bead in a single pass, which supports efficient edgeforming on cabinet and furniture components. The edge forming beading carbide tip bit with bottom mount ball bearing guide 2 flute 1/4 inch shank design gives you a guided profile that can also shift to a corner rounding role by changing the bearing, so one router bit geometry can serve multiple edge treatments across a project.
