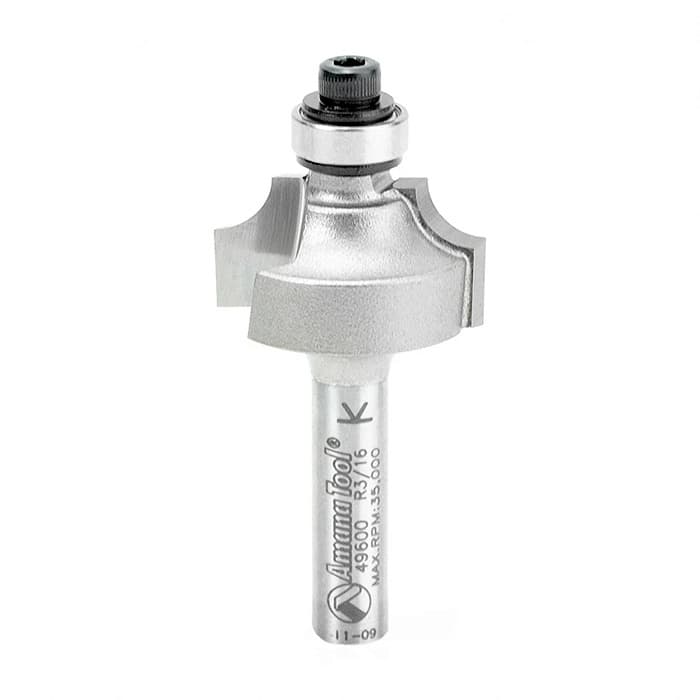

Amana Tool 49600 beading bit 7/8 in dia

Amana Tool 49600 Beading Bit For Clean Profiles

Amana Tool 49600 beading bit is a carbide tip router bit designed to cut a quarter-round shape bounded by fillets, creating a precise bead in a single pass. This edge forming beading bit uses a bottom mount ball bearing guide to follow the workpiece edge, so the profile tracks the edge rather than a fence during routing. The 2 flute design provides a balanced cutting action that shapes the bead while helping maintain a smooth feel along the edge. With its 1/4 inch shank, this router bit fits common router collets used in shop and jobsite routers. The carbide tip cutting edges are sized to match the specified diameter and radius, so the finished bead dimension can be planned into cabinet, trim, or furniture layouts.

Key Edge Forming Details That Support Your Work

• The bit produces a quarter-round bead profile in one pass, so the edge shape is formed without multiple setups or separate profile steps.
• The bottom mount ball bearing guide sets the path along the stock edge, which helps maintain a consistent bead location relative to the workpiece face.
• The pilot bearing size fixes the width of one fillet, giving a repeatable shoulder on that side of the bead for matching parts.
• The depth of cut controls the other fillet width, allowing adjustment of that shoulder to match surrounding profiles or design details.
• The beading bit can be transformed into a corner rounding bit by changing the bearing, so the same cutter body serves both bead and corner round profiles.
• The 2 flute layout provides two cutting edges around the diameter, giving a more continuous cutting action along the routed edge.

Edge Forming Beading Router Bit Setup And Fit

This edgeforming router bit has a diameter of 7/8 inch, so the cutter sweeps a substantial arc while still working on typical cabinet and furniture stock widths. The 3/16 inch radius defines the quarter-round curvature of the bead, which sets how pronounced the rounded edge appears on the workpiece. A 1/2 inch cutting height lets the bit form the bead profile over a half-inch vertical span, matching many common stock thicknesses used in woodworking projects. The 1/4 inch shank fits routers and collets designed for this shank size, tying the bit directly to a widespread router interface for shop or onsite use. With a 2 inch overall length, the bit remains compact in the collet while providing the necessary reach for edge forming. Together, these dimensions support planning router setups around known, repeatable cutter geometry.

Using This Beading Bit In Woodworking Projects

Where This Amana Beading Bit Works Best

This Amana Tool edge forming beading carbide tip bit is part of the router bits product class, placing it in the tooling used for shaping wood and similar materials. As an edgeforming category cutter, it is intended for working along workpiece edges rather than broad surface routing. The 7/8 inch diameter and 3/16 inch radius bead shape lend themselves to applications where a defined yet moderate quarter-round is desired on cabinet doors, face frames, trim, or furniture edges. Because the bead is produced in one pass, the bit suits runs where repeatability across many parts matters, such as production of multiple rails, stiles, or shelf edges. The router bit form with a 1/4 inch shank allows use in routers commonly found in woodworking shops, aligning this cutter with typical joinery and decorative edge workflows. Its classification under bits, blades and cutters reinforces its role as a cutting tool within the broader woodworking tool set.

How The Geometry Supports Repeatable Bead Results

The quarter-round bead produced by this bit is specifically described as being bounded by fillets, which means the curved portion transitions into flat shoulders on both sides, helping parts register neatly against adjacent components. The width of one fillet is set by the pilot bearing size, so once the bearing is chosen, that shoulder dimension repeats from part to part without further adjustment. The other fillet width is controlled by the depth of cut, giving the operator a single variable to change when fine-tuning how far the bead extends into the stock. This design lets the same bit body support both a beading function and a corner rounding function by changing the bearing, making the profile versatility dependent on bearing choice rather than replacing the cutting geometry. The 2 flute configuration spaces two cutting edges evenly around the 7/8 inch diameter, which distributes the cutting action as the bit rotates and helps maintain a consistent feel along the routed edge. With a 1/2 inch cutting height, the bit engages enough vertical area to carry the full bead and fillets while still matching many common edge thicknesses, so the routed profile aligns predictably with stock dimensions used in cabinets and furniture. These combined geometry details support repeatable routing results when the same setup is run across multiple workpieces.

Common Questions About Amana 49600 Beading Bit

Select This Bit For Planned Bead And Corner Rounds

The Amana Tool 49600 beading bit provides a defined quarter-round bead with fillets in one pass, using a bottom mount ball bearing guide to reference the workpiece edge. With its 7/8 inch diameter, 3/16 inch radius, and 1/2 inch cutting height, the profile dimensions are fixed for predictable results. The 1/4 inch shank and 2 flute design place this router bit solidly in everyday woodworking tooling. When a project calls for repeatable beads or the option to switch to a corner rounding profile by changing the bearing, this cutter geometry supports that planning.
