Nickel Finish and Half Overlay Fit, Ready for Two-Door Cabinets

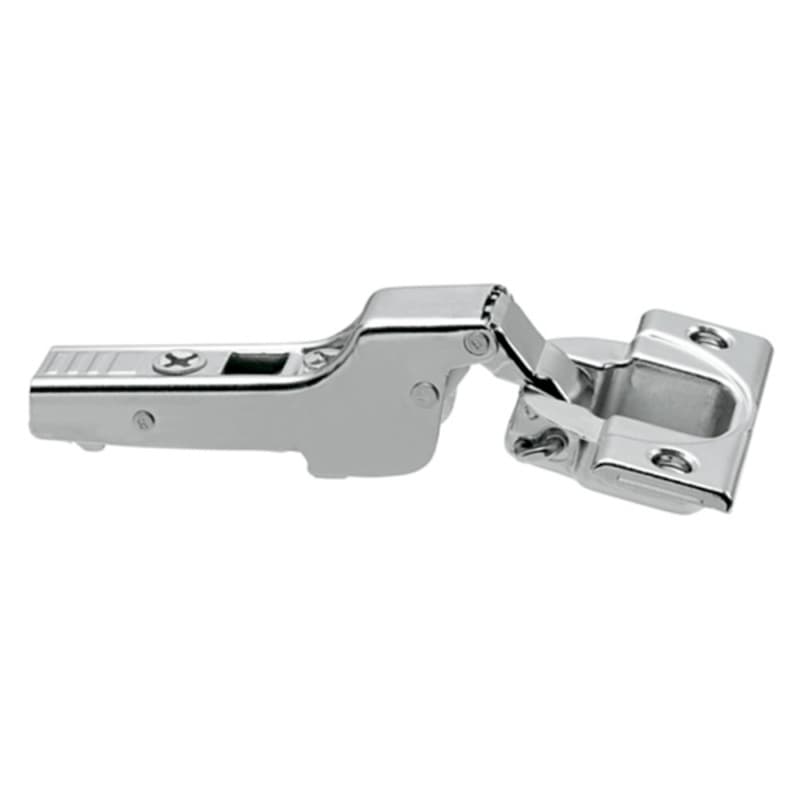

This Blum CLIP top hinge is built for half overlay doors on frameless and face-frame cabinets, with INSERTA tool-free plate mounting and a self-closing spring, finished in Nickel.

Key Features

• Half overlay, half crank arm positions the door to cover part of the cabinet side, the geometry shared-partition two-door cabinets require.
• Self-close spring pulls the door shut over the last few degrees of travel so it does not hang open.
• 110 degree opening provides the standard swing for everyday cabinet access.
• INSERTA tool-free mounting presses the base plate into pre-drilled 5mm system holes without screws or a screwdriver.
• Three-way adjustment dials height, side, and depth independently after the door is hung.
• Nickel finish on plated steel holds up to daily use and coordinates with other Nickel hardware across the build.

Built for Shared-Partition Two-Door Cabinets

Half overlay is the geometry for two doors meeting on one center partition, where each door covers roughly half the panel. A full overlay hinge would push the arms into each other on that shared wall; the half crank on this hinge steps the door back so both doors hang without conflict. It is also the right choice for any partial-overlay door that sits back from the cabinet edge by design. The 35mm cup bores into the back of the door, and the arm clips to a Blum base plate on the cabinet, ordered separately. INSERTA makes plate mounting fast on production runs: the plate presses straight into the cabinet's pre-drilled 5mm system holes with no screw required.

Nickel Steel That Wears Well

The hinge is plated steel with a Nickel finish. Nickel reads as a warm, slightly lustrous neutral that pairs with stainless pulls, brushed hardware, and traditional or transitional kitchen palettes. The finish is consistent across the Blum Nickel line, so it matches plates, cover caps, and other accessories sourced from the same family. Three-way adjustment keeps doors aligned as the cabinet settles over time, which is what preserves the look of a tight, even reveal without pulling the doors back off the wall.

Where This Hinge Belongs

This is the right hinge for cabinet shops and contractors running half overlay layouts on frameless Euro boxes or face-frame cabinets. It suits production environments where INSERTA's no-screw plate drop-in keeps each install moving. Homeowners replacing worn self-close hinges on a partial-overlay kitchen will find it a familiar format. INSERTA requires 5mm system holes in the cabinet side; if those holes are not present, the screw-on plate version of this hinge is the correct substitute. For doors thicker than 22mm, a thick-door hinge is the right call. And if a quiet, cushioned close matters more than a spring pull, the BLUMOTION soft-close version of this series is worth specifying instead.

Common Questions

The Right Geometry, the Right Finish, Hung Fast

Specify this hinge when the layout calls for half overlay doors that close on their own, mount without tools, and carry a Nickel finish that holds its look across the run.
