Salice Series CU 3 Cam Soft-Close Silentia 1-3/8" Overlay Face-Frame Hinges Nickel, 106° Screw-On - CUP3CD9R

Salice Series CU Silentia Hinge For Face-Frame

Salice Series CU Silentia hinge is a concealed cabinet hinge designed for face-frame applications where 1-3/8 inch overlay is required, so it supports standard overlay layouts while keeping hardware out of sight for a cleaner cabinet look. As a soft-close hinge with an integrated decelerating mechanism on the hinge, it slows the door near the end of travel, which helps prevent slamming and reduces impact on the cabinet over time. The hinge is part of the Salice America concealed face frame hinges family, so it fits projects already built around this product class. A 106 degree opening lets the door swing wide enough for everyday access without over-rotation, which helps cabinet doors clear adjacent fronts in typical runs. Nickel plated steel construction provides a hard-wearing surface, so the hinge stands up to repeated cycles in busy kitchen or shop environments.

Key Salice Hinge Details That Support The Job

• This 3 cam adjustment hinge provides three independent adjustment points, so installers can fine-tune door position to correct reveals after mounting and reduce time spent rehanging doors.
• The concealed cabinet hinge design keeps the hardware hidden when the door is closed, which gives finished cabinets a clean, professional appearance that matches modern face-frame expectations.
• The integrated soft close mechanism can be deactivated by an activation switch on the front of the unit, so hinge behavior can be tuned on site for doors that need less resistance or for mixed soft-close layouts in the same run.
• A 106 degree opening angle allows wide door access while limiting over-travel, which helps doors clear neighboring fronts while still protecting corners from hitting adjacent cabinetry in typical installations.
• The 11 mm (7/16 inch) cup depth matches all hinges in the line, so boring depth can stay consistent across doors and reduce setup changes on the drill press or line boring machine.

Face-Frame Hinge Mounting And Adjustment Setup

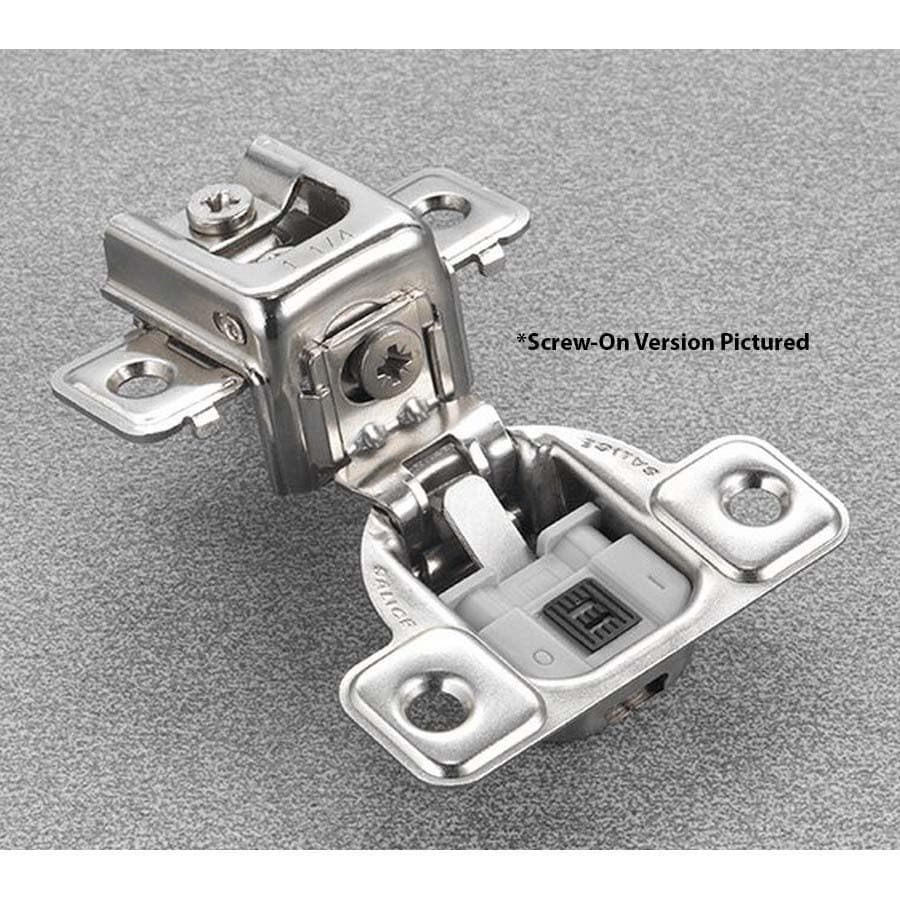

This screw-on face-frame hinge mounts using a screw-on system, so it installs with standard cabinet fasteners into the frame and door without specialized press-in hardware. Possible drilling distance on the door ranges from 2.5 mm to 6.0 mm, or 3/32 inch to 1/4 inch, which lets fabricators choose a boring distance that suits their overlay and edge profile while staying within the hinge operating range. The hinge cup depth of 11 mm supports consistent boring across the door run, so setups stay the same regardless of which hinge in the line is used. Because the soft-close function is built into the hinge and can be deactivated with the front activation switch, installers can mount all hinges the same way and then set closing strength door by door after alignment.

Using This CUP3CD9R Soft-Close Hinge In Cabinet Work

Where This Screw-On Face-Frame Hinge Fits Best

This Salice 1-3/8 overlay hinge is intended for face-frame cabinets that call for a 1-3/8 inch overlay, matching many full-overlay or wide-overlay layouts in kitchen and bath projects. As part of the Salice Series CU Silentia line, it shares the same 11 mm cup depth as all hinges in the line, so it fits door programs already bored for this series without changing tooling. The 106 degree concealed hinge opening works well on wall and base cabinets where doors need good access but are still close to adjacent doors or appliances. Because the hinge is a concealed cabinet hinge in nickel plated steel, it suits residential and shop environments where hidden hardware and a consistent metallic finish are preferred. The hinge belongs to the concealed face frame hinges category, so it is oriented toward projects using frames rather than frameless box construction.

Why 3 Cam Adjustment And Soft Close Matter

This 3 cam adjustment hinge offers three independent cams, which lets installers move the door in small, controlled steps to dial in gaps without ovalizing holes or loosening mounting points. Fine-tuning with cams preserves the screw-on face-frame hinge mounting, so alignment stays stable after setup. The integrated soft close mechanism on the hinge uses a decelerating mechanism near the end of the swing, which reduces closing speed and limits shock on the frame and door joints. Because the soft-close feature can be deactivated using the activation switch clearly visible on the front of the unit, the same CUP3CD9R soft-close hinge can serve both soft-closing and free-swing door positions within a project, simplifying planning. The nickel plated steel build supports repeated cam adjustments and switch use, so doors can be re-tuned during later service visits without replacing the hinge body. Together, the 3 cam adjustment hinge design and controllable soft closing strength streamline installation, reduce rework, and support consistent reveals across large cabinet runs.

Common Questions About This Salice Face-Frame Hinge

Choose This Hinge For Adjustable Soft-Close Face-Frames

The Salice Series CU Silentia hinge with 1-3/8 inch overlay, 3 cam adjustment, and screw-on face-frame mounting gives cabinet builders a concealed hinge that supports precise alignment and controllable soft-closing behavior. With its 106 degree opening, 11 mm cup depth shared across the line, and nickel plated steel construction, it fits face-frame runs where consistent boring setups and long-term function matter. Select the CUP3CD9R soft-close hinge for projects that need concealed hardware, adjustable closing strength, and repeatable cam alignment across multiple cabinet doors.
