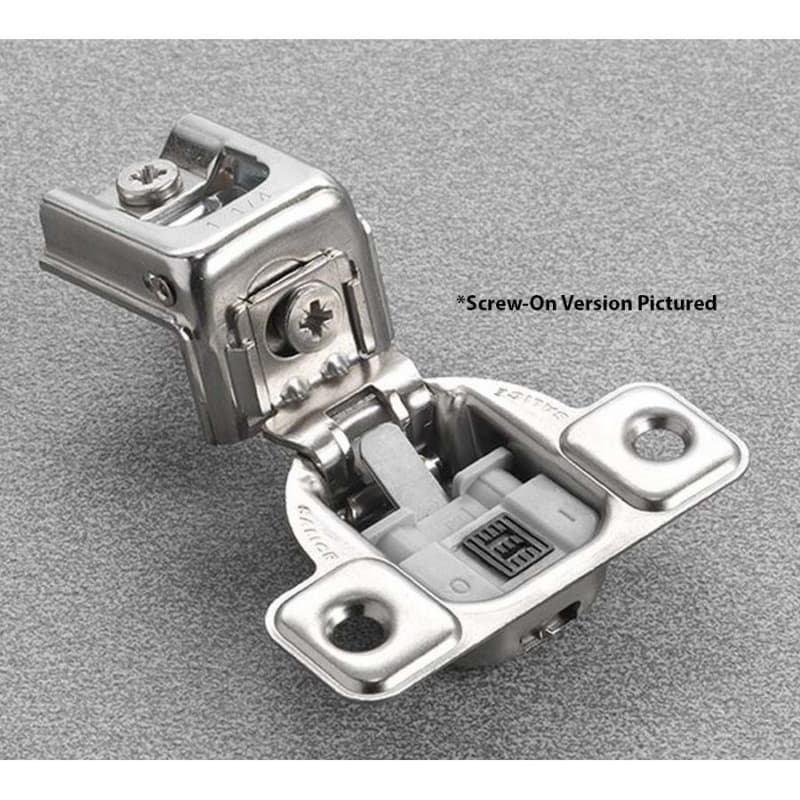

Salice Series CU soft close hinge is a concealed cabinet hinge designed for 1 inch overlay face-frame doors, so it supports clean, modern cabinet lines while keeping hardware hidden from view. As a Salice America Silentia hinge in the concealed cabinet hinges class, it uses an integrated soft closing mechanism to slow the door swing, which helps doors land quietly against the frame in everyday use. The hinge is nickel plated steel, giving a durable finish that matches common cabinet hardware finishes and stands up well in typical shop and kitchen environments. Its 106 degree opening angle lets doors open wide enough for comfortable access, which is important where drawer boxes or rollout trays sit behind the door. This hinge is identified by manufacturer part CUP32D9, which helps match it with existing layouts or documentation when specifying jobs or reordering parts.
This hinge is designed as a 1 inch overlay face-frame hinge, so it suits cabinets where the door overlays the frame by that amount and needs reliable coverage of the opening. The screw-on mounting style lets installers fasten the hinge cup and arm directly, which works well in shop or on-site settings that rely on drills and drivers instead of press-in tools. The 11 mm (7/16 inch) cup depth means standard 35 mm boring bits can be set to one depth across multiple doors, helping streamline production runs. With a drilling distance range from 2.5 mm to 6.0 mm (3/32 inch to 1/4 inch), the hinge gives room to adapt to different door edge conditions while still keeping consistent reveal and overlay targets.
This Salice Series CU 1 inch overlay hinge is suited to face-frame cabinetry that needs a concealed hinge layout, so it fits well in kitchen, bath, or built-in projects using overlay doors. As part of the concealed cabinet hinges category, it keeps the hinge hardware inside the cabinet, which supports a cleaner exterior door presentation. The 106 degree opening angle works well wherever doors must open past 90 degrees, such as near corner cabinets or when allowing trays and organizers to clear the door edge. Because the hinge cup depth is 11 mm (7/16 inch) across all hinges in the line, shops can standardize drilling jigs and machine settings for this hinge family, which helps reduce setup time when moving between different carcasses or door sizes.
The hinge features a Silentia integrated soft close mechanism, so it controls door deceleration without adding separate devices, which simplifies planning around interior clearances. That soft close function can be deactivated using the clearly visible front activation switch, giving installers a quick way to balance closing force across light and heavy doors or across doors in tight banks. Described as a 2 cam adjustable hinge, it provides multiple adjustment points, helping fine-tune door gap and alignment after mounting for a more uniform reveal line. The possible drilling distance range from 2.5 mm to 6.0 mm (3/32 inch to 1/4 inch) offers some flexibility in offsetting the cup from the door edge, which helps adapt to stile widths or design details while keeping the overlay specification. The nickel plated steel construction supports long-term hinge function in typical cabinet environments, so once adjusted, doors can continue to operate smoothly in normal household or light commercial use.
The hinge is a 1 inch overlay face-frame design, so it suits cabinets where the door overlays the face frame by that amount and needs a concealed hinge solution.
The CUP32D9 hinge opens to 106 degrees, giving doors a wide swing that improves access to the cabinet interior around trays or organizers.
The hinge uses an integrated soft close mechanism that can be deactivated with an activation switch on the front, allowing control over closing strength per door.
The hinge allows a drilling distance from 2.5 mm to 6.0 mm (3/32 inch to 1/4 inch), so boring layout can be adjusted while staying within the designed working range.
The hinge cup depth is 11 mm, or 7/16 inch, which lets boring equipment run a consistent depth across all hinges in the same Salice line.
This hinge is identified as Salice Series CU Silentia with manufacturer part number CUP32D9 and appears in SAP as a 1 inch overlay softclose 2 cam screw-on hinge.
This Salice Series CU soft close hinge brings a 1 inch overlay face-frame layout together with a Silentia soft closing mechanism, giving a concealed hinge option that suits many cabinet runs. With 106 degree opening, an 11 mm (7/16 inch) cup depth, and a 2.5 mm to 6.0 mm (3/32 inch to 1/4 inch) drilling distance range, it supports consistent boring and alignment on repetitive jobs. Selecting the CUP32D9 hinge keeps cabinet doors operating smoothly and quietly while matching the overlay and face-frame design specified for the project.
Sold In: 1 Each
