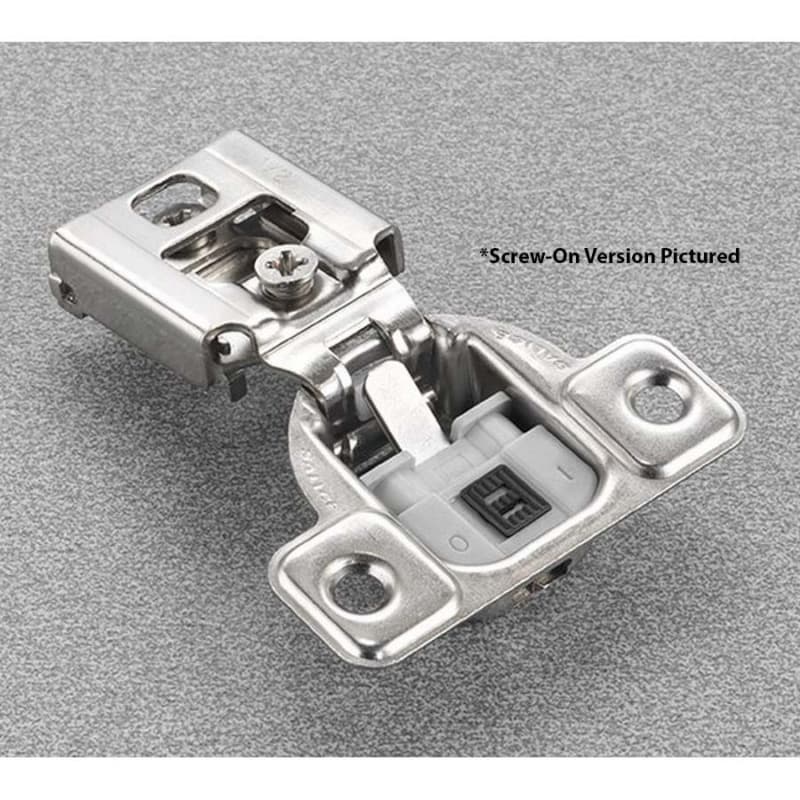

Salice Series CU soft-close hinge gives a 9/16 inch overlay face-frame cabinet door a controlled close, which helps protect the door and frame during everyday use. This concealed cabinet hinge belongs to the Salice Series CU Silentia Excentra line, so it combines a hidden mount with an integrated soft-close mechanism for a clean look on finished installations. The hinge is designed as a concealed face frame hinge, which keeps the hardware out of sight while the door is closed, supporting higher-end cabinet builds. A 106 degree opening angle allows the door to swing wide enough for comfortable access while still controlling the door movement at the end of the swing. The hinge uses a screw-on mounting style, giving installers a direct mechanical fastening method that suits typical cabinet construction.
This Salice Series CU 9/16 inch overlay hinge uses a screw-on mounting style, so the hinge fastens directly to the face frame and door with screws, creating a secure connection suited to standard wood cabinet construction. The product is described as a 2 cam adjustment hinge, so there are two cam points used to fine-tune the hinge position, which helps dial in overlay and alignment after the door is hung. Because the integrated soft close mechanism can be deactivated with an activation switch clearly visible on the front of the unit, installers can reach the control point without removing the door, which supports on-site adjustments after install. The 11 mm cup depth and specified drilling distance range work together to define a predictable interface between the door and hinge, which is important when doors are being machined in batches.
This concealed cabinet hinge is classified under concealed face frame hinges, so it is meant for cabinets with a face frame construction where the hinge mounts to that frame. The SAP description identifies the product as a 9/16 inch overlay soft-close hinge, so it is intended for doors that overlay the face frame by that amount, which matters when planning reveals and door spacing. The 2 cam design in the Salice Series CU Silentia Excentra hinges provides adjustment points that support fine-tuning the door position relative to the frame, which is useful when aligning multiple doors along a run. Because the opening angle is 106 degrees, the hinge allows the door to clear the opening sufficiently for most cabinet interior tasks while still respecting nearby walls or cabinet components.
The hinge is described as a Salice Series CU Silentia Excentra 2 cam adjustment hinge, so it combines the Silentia soft-close system with dual cam adjustments, which helps installers correct small deviations in drilling or door sizing without re-machining the door. The integrated soft close mechanism that can be deactivated by the activation switch on the front of the unit provides control over closing behavior at each hinge, which helps standardize how a bank of cabinet doors moves in the finished space. The possible drilling distance on the door from 2.5 mm to 6.0 mm (3/32 inch to 1/4 inch) gives a workable window that supports using existing boring patterns or jigs while staying inside the hinge design envelope. The consistent 11 mm (7/16 inch) cup depth across all hinges in this line means doors can be bored on a single depth setting, which saves setup time on drill presses or line borers. The nickel plated steel finish means the hinge body provides a metallic surface that coordinates visually with other nickel finished cabinet components, which supports a unified hardware appearance when the door is open.
The hinge is identified as a 9/16 inch overlay soft-close hinge, so it is used when the cabinet door overlays the face frame by 9/16 inch in the design.
The hinge provides a 106 degree opening, which lets doors swing past a right angle to improve access to the cabinet interior during regular use.
The hinge is a 2 cam adjustment hinge, so the two cam points allow fine-tuning of door position, which supports better alignment with the face frame after installation.
The hinge has an integrated soft close mechanism that can be deactivated using the activation switch on the front, allowing different soft closing strengths where needed.
The possible drilling distance on the door is 2.5 mm to 6.0 mm (3/32 inch to 1/4 inch), which defines the setback range for the cup hole relative to the door edge.
The hinge uses an 11 mm (7/16 inch) cup depth, so door boring must match that depth to seat the hinge cup correctly in the door.
The Salice Series CU soft-close hinge with 9/16 inch overlay, 2 cam adjustment, and screw-on mounting offers a concealed face frame solution that matches doors bored at 11 mm cup depth within the stated drilling distance range. The 106 degree opening angle and integrated soft close mechanism that can be deactivated provide both access and control over door motion, which supports smooth cabinet operation in daily use. For cabinet work that specifies nickel plated concealed hardware and relies on adjustable hinge positioning, this CUP36D9 hinge aligns the overlay requirement with practical adjustment features.
Sold In: 1 Each
