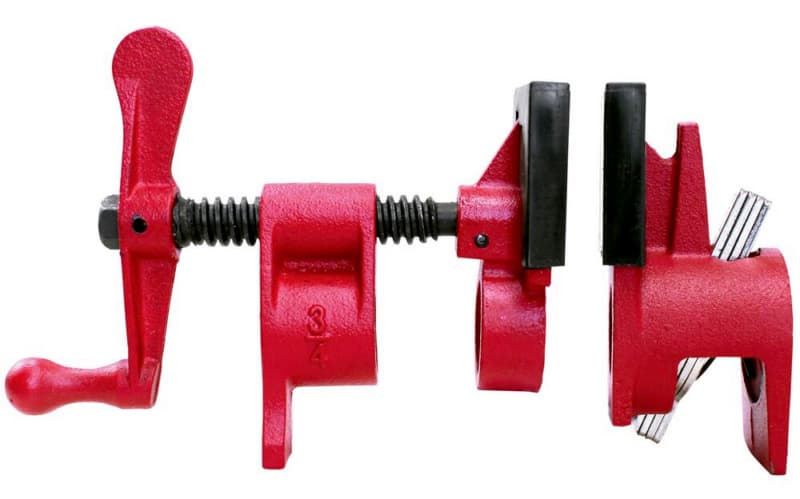

3/4" Diameter Traditional Pipe Clamp, 2-3/8" Throat Depth
Description
3/4 Inch Traditional Pipe Clamp For Woodworking Tasks
3/4 inch traditional pipe clamp describes a Bessey Tools clamp designed to work on 3/4 inch pipe so you can set clamping capacity by the pipe length for different project sizes. The large clamping surface spreads force over a wider area, helping hold workpieces steady while reducing concentrated pressure on the contact points. An ACME threaded screw drives the pressure smoothly, so each turn advances predictably when pulling parts together. The hex head on the spindle accepts a wrench, giving added leverage when you need higher clamping force. A 2-3/8 inch throat depth lets the clamp reach in from the pipe to grip material away from the edge. The high base lifts the pipe off the bench, improving clearance from the work surface and giving room to position and adjust stock under the clamp body.
Key Pipe Clamp Details That Support Daily Work
- Large clamping surface spreads load across more material, helping stabilize panels or glue-ups under pressure and supporting even contact during tightening.
- ACME threaded screw advances smoothly under torque, giving consistent, repeatable movement that supports controlled closing of joints and seams.
- Hex head on spindle allows wrench engagement, letting you apply extra torque when needed to secure heavier assemblies without relying only on hand grip.
- High base raises the pipe above the bench, creating working clearance under the clamp body for parts, shims, or glue squeeze-out.
- Economical alternative to the bar clamp offers a cost-conscious option by using standard 3/4 inch pipe to set overall clamping length.
Clamp Setup, Throat Reach, And Work Surface Clearance
The 3/4 inch pipe interface turns any suitable length of pipe into the clamp backbone, so overall span adjusts to the job size simply by changing pipe length. The 2-3/8 inch throat depth reaches from the pipe centerline to the clamping face, allowing the jaws to grip workpieces set in from an edge. A high base supports the pipe above the bench, leaving space beneath for material and tools while the clamp is under load. The ACME threaded screw moves the jaw forward in a controlled way, which helps bring pieces together gradually without sudden jumps in pressure. With a hex head on the spindle, a wrench can drive the screw when additional tightening force is needed on thicker or denser stock.
Using This Bessey Pipe Clamp In Woodworking Projects
Where This 3/4 Inch Pipe Clamp Performs Best
This Bessey Tools clamp sits in the woodworking tools and equipment category, so it is suited to joinery, panel work, and general shop assembly where controlled linear pressure is needed. The large clamping surface contacts more of the workpiece face, which helps keep boards from shifting while glue sets. Because clamping capacity is determined by the length of 3/4 inch pipe used, the same PC34-2 unit can work on small frames or long assemblies by swapping pipes. The 2-3/8 inch throat depth gives room to pull pieces together slightly away from the outer edge, valuable on frames, rails, or panel edges that should remain aligned across their width. The high base improves clearance from the work surface, helping the pipe sit level while still leaving space for placing cauls or blocks under the work.
Details That Support Repeatable Clamping Results
The ACME threaded screw is built to convert turning force into steady linear movement, which supports repeatable tightening across multiple clamps on the same glue-up. Because each rotation moves the jaw predictably, it is easier to balance pressure along a run of clamps. The hex head on the spindle accepts wrench input, providing additional mechanical advantage when seating joints on thicker or harder materials. This can help pull edges together firmly without overstraining hand strength. The clamp design is described as an economical alternative to the bar clamp, which lets shops use lengths of 3/4 inch pipe they already stock to create longer clamps without dedicated bars. The high base keeps the pipe up from the bench, improving access around the workpiece when adjusting position, wiping glue, or aligning edges while the jaws are under tension.
Common Questions About The Bessey PC34-2 Pipe Clamp
What pipe size does the PC34-2 clamp use?
The 3/4 inch diameter traditional pipe clamp is designed for 3/4 inch pipe, so the pipe length determines how wide a workpiece you can clamp.
How does the ACME threaded screw help in use?
The ACME threaded screw advances smoothly under load, so the jaw closes in a controlled way and helps apply even pressure across the workpiece.
Why is the large clamping surface important?
The large clamping surface spreads force over more area, helping reduce localized marking and improving stability on panels and assemblies.
What does the 2-3/8 inch throat depth allow?
The 2-3/8 inch throat depth lets the clamp reach from the pipe to grip material farther in from an edge, useful for frames and panel edges.
How does the hex head on the spindle help?
The hex head on the spindle allows use of a wrench, giving extra leverage when tightening joints that need higher clamping force.
Why is this clamp an economical alternative to a bar clamp?
This clamp is described as an economical alternative to the bar clamp because it uses standard 3/4 inch pipe, so clamping length depends on pipe already selected.
Select This Pipe Clamp For Flexible Clamping Capacity
The Bessey Tools 3/4 inch diameter traditional pipe clamp, PC34-2, delivers large clamping surface, ACME threaded screw, and hex head spindle for controlled tightening. Its 2-3/8 inch throat depth and high base support varied woodworking setups. Choosing this clamp lets you use 3/4 inch pipe lengths to set virtually limitless clamping capacity, aligning the tool with the size and style of assemblies handled in your shop.
