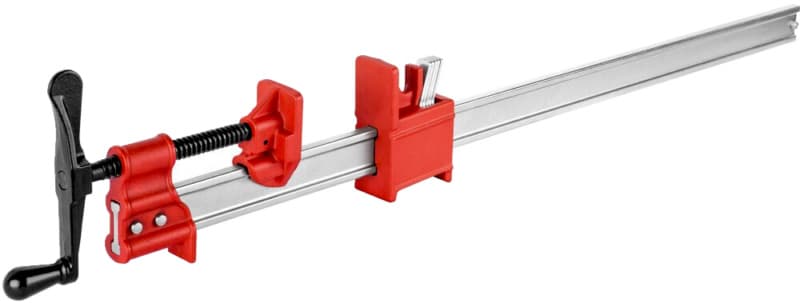

30 inch heavy duty I beam bar clamp from Bessey Tools is built to meet demanding industrial workloads, so it supports serious panel glue-ups and assembly tasks where consistent pressure and alignment matter across the full 30 inch length. The IBeam design is very stiff and does not bend or twist over a long distance, which holds workpieces straight when you are clamping long boards or frames. A 2 inch throat depth lets the jaws reach in from the edge, so you can pull joints tight slightly away from the outer edge of the stock. Tough ductile castings form the core clamping components, giving the clamp strength when you apply heavy pressure on stubborn glue joints. The powder coated nickel plated rail resists corrosion, which helps the clamp stay smooth in shop environments where moisture and glue squeeze-out are common.
A 2 inch throat depth defines how far the jaws reach from the bar, which positions pressure slightly inboard from an edge to help draw joints tight without overhanging the clamp. The jaw width of 1-3/4 inch spreads load across the work surface, helping reduce marking by distributing pressure over a broader area. A 1-3/8 inch bar width and 7/16 inch bar thickness give the IBeam rail its stiffness, which helps it resist deflection when you draw long assemblies together. The 30 inch length works well where powerful clamping of small spots along a longer run is needed, because the bar maintains alignment while you concentrate pressure exactly where a joint needs it.
This I beam bar clamp is designed to meet the demanding needs of industrial workloads, so it fits into production and serious hobby shops that handle frequent glue-ups. The clamp is best for powerful clamping of small spots where strength and straightness over a distance are crucial to hold wood in alignment. The very stiff IBeam rail does not bend or twist like other clamps over a long distance, so edge joints, face laminations, and frame assemblies stay truer while the glue cures. A 2 inch throat depth combines with the 1-3/4 inch jaw width to position pressure in a controlled band from the edge, which supports consistent clamping across panel seams. The 30 inch capacity allows you to work on medium-length components, such as cabinet doors or small tabletops, while relying on the bar to maintain line and flatness across the span. Together, these characteristics help keep assemblies square and reduce the need for heavy corrective sanding after curing.
Four strong, hardened steel clutch plates aid with gripping the bar stock, so the sliding head stays where you set it as you take up pressure, which supports repeatable setups from part to part. The crank handle is built for tremendous strength and long term durability, giving you leverage to generate high clamping force without sacrificing smooth control as pressure increases. ACME threaded screws with a 9/16 inch spindle diameter provide a robust mechanical drive, so each turn of the handle advances the jaw predictably and holds under load during longer cure times. The powder coated nickel plated rail resists corrosion, which helps keep the jaw travel smooth and predictable even after exposure to glue and shop humidity. Tough ductile castings tie these elements together structurally, so the clamp body maintains its shape while you work it hard on dense hardwoods and multi-layer laminations. These design choices support consistent workflow when you need the same clamping behavior across repeated production runs.
The 30 inch heavy duty I beam bar clamp provides a 30 inch clamping span, which suits medium-length panels and assemblies where straightness along that distance is important.
The IBeam design is very stiff and does not bend or twist like other clamps over a long distance, so panels and joints stay aligned while adhesive cures.
The 2 inch throat depth defines how far the jaws reach from the bar, positioning clamping pressure slightly inboard from an edge for better joint draw.
Four strong, hardened steel clutch plates grip the bar stock, so the sliding jaw locks securely and resists drifting as you tighten the clamp.
The ACME threaded screw with 9/16 inch spindle diameter provides smooth, powerful travel, turning handle force into consistent clamping pressure.
A 1-3/8 inch bar width and 7/16 inch thickness give the rail rigidity, helping it resist deflection under high load along the 30 inch span.
The Bessey Tools 30 inch heavy duty I beam bar clamp, part number IBEAM30, combines a very stiff rail, ductile castings, and ACME threaded screws to handle industrial workloads. When strength, straightness over distance, and focused clamping of small spots are crucial to hold wood in alignment, its 2 inch throat depth, 1-3/4 inch jaw width, and hardened steel clutch plates support accurate, repeatable glue-ups. Choose this clamp when your cabinet, furniture, or general woodworking projects demand strong, controlled pressure along a 30 inch span.
Sold In: 1 Each
