12 inch soft close drawer slides from US Futaba provide full extension performance, so a 12 inch drawer can be pulled out to access the full drawer length, which helps installers deliver storage that uses every reachable inch. These side mount slides use a ball bearing design, which supports consistent movement along the length of the slide for drawers that open and close with predictable resistance. The soft-close function is supported by a 5.5 - 6.5 lb pull force per drawer, which controls the closing speed so drawers travel into the cabinet at a managed pace. An electro zinc finish protects the metal surfaces, which helps the slides maintain function in typical cabinet environments. The slide height of 1-13/16 inch, or 45.7mm, defines the vertical space the slide occupies, which matters when planning drawer box height and clearances along the cabinet side.
US Futaba soft close drawer slides are designed as side mount hardware, which places each member against the cabinet side and drawer side for straightforward alignment. The slide height of 1-13/16 inch sets the vertical footprint, which informs where to position the slide relative to the drawer bottom so the drawer clears cabinet openings. Side spacing of 1/2 inch, with a tolerance of plus 1/32 inch, defines the lateral gap, which lets installers size drawer boxes to maintain a running clearance that is tight enough for support yet free enough for movement. The slides are marked for use with flat head screws, which seat flush in the mounting holes so screw heads do not interfere with the ball bearing members as the drawer opens and closes.
These US Futaba full extension slides fit projects where a 12 inch slide length is appropriate, which suits smaller cabinet drawers that still benefit from full access to stored items. The load rating of 100 lb is specified at the 22 inch length, which indicates the slide family is built for residential or light commercial drawers when sized within the stated range from 12 inch to 28 inch. Side mounting places the slides on the drawer sides, which matches standard face-frame or frameless cabinet layouts that allocate space beside the drawer box. The 1-13/16 inch height works with many common drawer side dimensions, which helps the slide nest within typical drawer constructions without demanding unusual side heights. The electro zinc finish aligns with indoor cabinet environments, which matches kitchen, bath, or shop storage where metal components are routinely exposed to normal interior humidity.
The full extension action lets the drawer travel the entire 12 inch slide length, which keeps the rear of the drawer visible and reduces the tendency for forgotten items to remain hidden. Ball bearing construction supports linear motion along the slide raceways, which helps drawers track straight without binding when loads remain within the rated expectations of the slide series. The specified side spacing of 1/2 inch with a plus 1/32 inch tolerance narrows the acceptable gap range, which supports a repeatable fit when cutting drawer widths for multiple cabinets in the same project. The required use of flat head screws means their conical heads sit below the metal surface, which keeps the moving members from catching on fasteners during travel. The 5.5 - 6.5 lb pull force per drawer is part of the soft-close function, which provides controlled resistance as the drawer is drawn shut so fronts land against cabinet faces in a managed way. The electro zinc finish provides a consistent surface on the steel, which supports ongoing movement along the bearings under everyday cabinet use. The manufacturer part number 12415 04 116 identifies this specific 12 inch soft-close model, which helps match slides across new installations and future replacements within the same series.

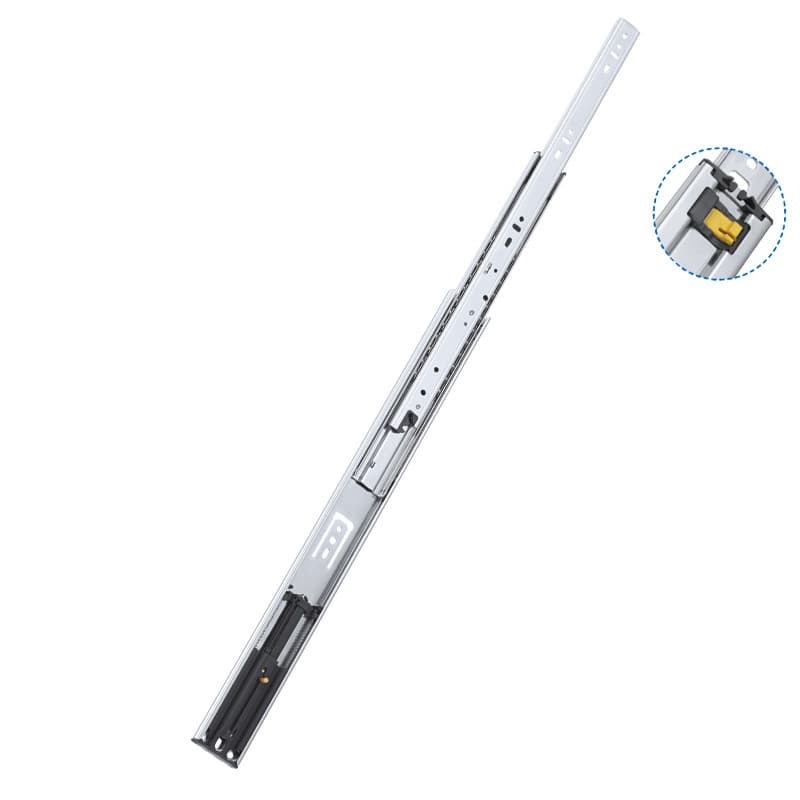

The US Futaba 12415 04 116 is a side mount, full extension, soft-close ball bearing drawer slide, which supports smooth travel and controlled closing for 12 inch length drawer applications.
These drawer slides use 1/2 inch, or 12.7mm, side spacing with a tolerance of plus 1/32 inch, which guides the drawer box width so the drawer runs freely without excessive play.
The slide height is 1-13/16 inch, or 45.7mm, which defines the vertical space needed on the drawer side and helps position the slide relative to the drawer bottom and cabinet opening.
The slide family has a 100 lb load rating at the 22 inch length, which indicates capacity for typical residential or light commercial drawers when used within the series length range.
These US Futaba slides have an electro zinc finish, which coats the steel components and supports consistent performance in standard indoor cabinet environments.
The soft-close action is associated with a 5.5 - 6.5 lb pull force per drawer, which provides the resistance needed for controlled closing as the drawer is drawn into the cabinet.
The US Futaba 12 inch full extension soft-close ball bearing drawer slides combine side mount installation, defined 1/2 inch side spacing, and a 1-13/16 inch height, which supports straightforward planning of drawer box dimensions. The electro zinc finish and ball bearing design support smooth movement under typical drawer loads, while the specified pull force underpins the soft-close behavior. When a project calls for 12 inch slide length within the 12 inch to 28 inch series range, these slides give installers a clear set of dimensions and performance details to work from. Use the manufacturer part number 12415 04 116 to align project takeoffs and ordering so each drawer position uses the same soft-close slide model.
Sold In: 10 Set
