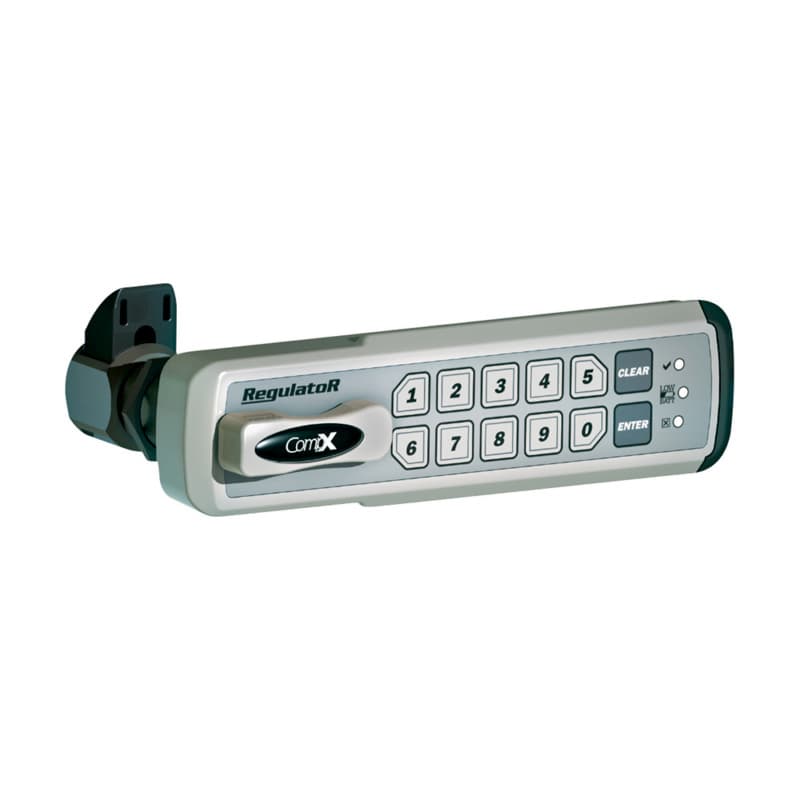

CompX National Electronic Push Button Cabinet Lock, 7/16" Cylinder Length with Horizontal Right Hand Position- REG-S-R-1

CompX National Electronic Cabinet Lock For Doors

CompX National electronic push button cabinet lock is a keyless electronic push button lock designed for cabinet doors, drawers, lockers, and similar enclosures, so it secures these applications without mechanical keys in daily use. The CompX RegulatoR electronic push button cabinet lock uses a keypad interface, which allows users to enter access codes instead of cutting and tracking physical keys on jobs. A 7/16 inch cylinder length positions the locking mechanism for cabinets built around that dimension, supporting consistent fit where this length matches the door or drawer design. The horizontal right hand mount orientation is built for openings where the door hinges are on the right when facing the door, giving installers a defined hand for layout. This self-locking version uses Slamcam, a spring-loaded latching mechanism that lets users push the door closed without returning the knob to locked position, saving steps in high-use areas.

Keyless Cabinet Lock Details That Support Workflow

• The CompX RegulatoR electronic push button cabinet lock provides a keyless locking method, which reduces dependence on physical keys in installations that require frequent access changes.
• A 7/16 inch cylinder length sets the depth for the locking cylinder, helping align the lock with cabinet door or drawer thickness built around that measurement.
• The horizontal right hand mount configuration matches applications where the door hinges are on the right side when facing the door, so hand selection can follow hinge placement during layout.
• The self-locking version with Slamcam uses a spring-loaded latching mechanism, allowing the user to push the door shut and have the lock engage without extra knob positioning.
• A satin nickel finish on the right hand RegulatoR presents a consistent appearance for projects specifying that finish across visible cabinet hardware components.

Right Hand Electronic Lock Mounting And Fit

The CompX RegulatoR electronic push button cabinet lock uses a horizontal right hand mount, so it aligns to doors where hinges sit on the right side when viewed from the outside. This orientation guides installers when laying out lock positions in relation to hinge placement. A 3/4 inch diameter mounting hole is specified for this lock, giving a clear boring dimension when preparing doors, drawers, or locker fronts. The 7/16 inch cylinder length coordinates with that bore, so the cylinder projects through at a depth suited to that cabinet construction. With the AAA battery compartment accessible from the outside of the cabinet, batteries can be changed without opening the enclosure by other means during maintenance. A low battery indicator provides a signal before battery life is exhausted, helping schedule service before operation is interrupted.

How This Electronic Cabinet Lock Works On Site

Where The CompX RegulatoR Lock Is Applied

The CompX RegulatoR, right hand mount, is specified as a keyless electronic push button lock for cabinet doors and drawers, lockers, and other similar enclosures, so it fits a range of small to medium access points in woodworking and casework projects. Its magnetic key and keyless lock classification places it within a group used where electronic or non-keyed access is preferred, keeping the lock aligned with modern cabinet and locker systems. The satin nickel finish on the right hand RegulatoR coordinates with projects calling for that finish on visible hardware, so installations in commercial or residential spaces can match surrounding pulls and hinges. The 3/4 inch diameter mounting hole requirement means doors, drawers, and locker faces can be bored with a single standard-size hole, simplifying shop prep when multiple openings on the same run use this lock.

Details That Support Reliable Mounting And Use

The self-locking version features Slamcam, a spring-loaded latching mechanism that lets the user push the door closed and have the lock engage automatically, which supports quick closure on frequently used compartments. Twenty codes per lock are supported, so multiple user or administrative codes can be assigned to one opening where controlled shared access is required. The battery life rating of 75,000 cycles indicates the lock is designed to operate through a high number of open-and-close actions on a single set of batteries, which reduces service frequency in busy locations. The AAA battery compartment sits on the outside of the cabinet, so battery changes happen from the front side of the door or drawer, keeping maintenance on the accessible face. A low battery indicator built into the electronic push button system gives early notice that cycle capacity is being approached, helping plan battery replacement around facility schedules.

Common Questions About This CompX RegulatoR Lock

Selecting This Lock For Your Next Cabinet Run

The CompX National electronic push button cabinet lock with 7/16 inch cylinder length combines a horizontal right hand mount, self-locking Slamcam function, and a 3/4 inch mounting hole requirement, giving a defined spec for cabinet, drawer, and locker projects. With twenty codes per lock, a satin nickel finish, accessible external AAA battery compartment, and a low battery indicator, this CompX RegulatoR electronic cabinet lock supports controlled access and straightforward service on woodworking and casework installations. Use these verified details to align hinge handing, bore size, and electronic access requirements on your next run.
