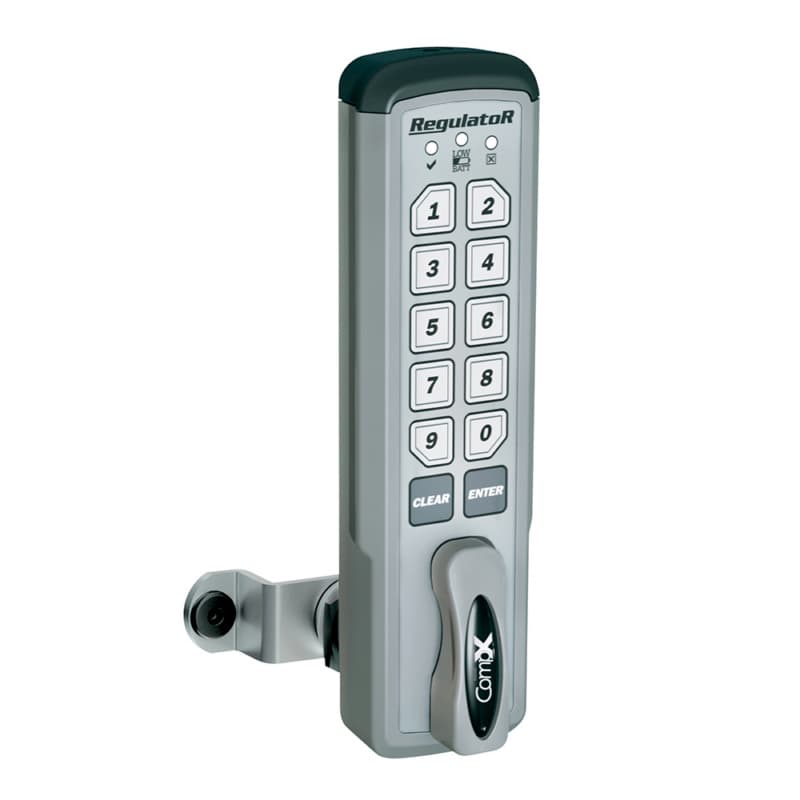

CompX National Electronic Push Button Cabinet Lock, 15/64" Maximum Material Thickness with Vertical Mount, Manual Version - REG-M-V-1
Description
Electronic Push Button Cabinet Lock For Secure Access
Electronic push button cabinet lock describes the CompX RegulatoR unit, which uses a keypad instead of a traditional key, so access is controlled through user codes on cabinet doors, drawers, lockers, and similar enclosures where keyed control is not desired. The lock is a keyless, electronic push button design, so users enter a code to operate the mechanism, which supports controlled entry in shared or restricted areas. This CompX National manual version requires the knob to be rotated to open and locked positions after code entry, which gives a clear physical confirmation that the lock has been moved to the desired state. The product uses a vertical mount with the knob at the bottom, so the keypad layout and handle position suit tall cabinet doors and vertical panel applications. A satin nickel finish is used on the RegulatoR, providing a clean, neutral appearance that coordinates with many commercial and residential cabinet styles.
Keyless Lock Details That Support Daily Use
- The CompX RegulatoR is an electronic push button lock for cabinet doors, drawers, lockers, and similar enclosures, so it handles a wide range of storage applications where key control is impractical.
- The lock offers up to 20 codes per lock, so multiple users or tiers of access can be managed without issuing physical keys for each person.
- The manual version requires the knob to be rotated to open and locked positions, giving users a tactile action that confirms when the cabinet is secured or released.
- The RegulatoR is specified with a 7/16 inch cylinder length, which sets the lock body reach through the door or drawer front for proper engagement with the cam.
- The design uses a 3/4 inch diameter mounting hole, so installers can match the required bore size when preparing doors or drawer fronts for the cylinder.
- The unit is described as vertical with knob at bottom mount, aligning the keypad and knob orientation with typical vertical cabinet layouts for consistent operation.
Vertical Mount And Cylinder Details For Installation
The RegulatoR vertical mount with knob at the bottom places the keypad above the knob, which positions the user interface at a comfortable reach when fitted on standard-height cabinet doors. A specified 3/4 inch diameter mounting hole defines the bore size required in the cabinet panel, which guides drilling operations for a precise fit of the cylinder. The 7/16 inch cylinder length sets how far the lock barrel extends through the material, which affects cam engagement on the back side of the door or drawer. The lock is rated for 15/64 inch maximum material thickness in this configuration, so the stated front thickness keeps the threaded portion and cylinder length within the range needed for secure mounting and cam function. A satin nickel finish on visible components maintains a consistent appearance around the mounting area once installation is complete.
Using This CompX RegulatoR Lock In Cabinet Projects
Where This Vertical Mount Cabinet Lock Fits Best
The CompX RegulatoR is an electronic push button cabinet lock designed specifically for cabinet doors and drawers, so it fits casework where controlled access to contents is required. The description also cites lockers and similar enclosures, indicating suitability for storage units built with comparable door constructions that can accept the 3/4 inch mounting hole. Its vertical mount configuration with the knob at the bottom matches tall cabinet doors or vertical panels, placing the keypad above the knob for straightforward code entry and handle operation. A 15/64 inch maximum material thickness rating defines front thickness for this version, aligning it with doors and drawer fronts within that range so the cylinder length and cams can function as intended behind the panel. The 7/16 inch cylinder length works in combination with the specified thickness to position the straight cam or offset cam for proper latch engagement.
Why Manual Version And Battery Features Matter
The RegulatoR manual version requires rotating the knob to both open and locked positions after the correct code is entered, which lets users positively set the lock state rather than relying only on electronic actuation. This manual rotation provides a visible and tactile indication that the cabinet has been secured, which can be helpful in environments where multiple users access the same compartment. The lock supports 20 codes per lock, giving flexibility to assign or change user codes while retaining electronic control over cabinet access. Battery operation uses (2) AAA batteries, and the AAA battery compartment is easily accessible from the outside of the cabinet, so batteries can be replaced from the front without disturbing the interior hardware or contents. A stated battery life of 75,000 cycles means the batteries are intended to support many opening and closing operations, which reduces the frequency of battery changes in busy installations. The RegulatoR also provides a low battery indicator, alerting users that the AAA cells are nearing depletion so battery changes can be scheduled before operation is interrupted. A satin nickel finish on the external components maintains a neutral, professional appearance through repeated handling during daily use.
Common Questions About This CompX Cabinet Lock
What type of enclosures can this CompX RegulatoR lock secure?
The CompX RegulatoR is described for cabinet doors and drawers, lockers, and similar enclosures, so it suits casework and storage units built to accept its mounting hole and cylinder length.
How does the manual version of this cabinet lock operate?
The manual version of the CompX RegulatoR requires entering a valid code, then rotating the knob to both open and locked positions, giving a clear physical action to secure or release the cabinet.
What material thickness and cylinder length does this lock support?
This CompX RegulatoR is rated for a 15/64 inch maximum material thickness and uses a 7/16 inch cylinder length, pairing panel thickness and barrel reach for proper cam engagement.
What mounting hole size is required for this electronic push button lock?
The CompX RegulatoR requires a 3/4 inch diameter mounting hole, so cabinet doors or drawer fronts are bored to that size for the cylinder to seat correctly.
How many user codes can be programmed on this cabinet lock?
The CompX RegulatoR supports 20 codes per lock, allowing multiple users or code levels to operate the same cabinet without physical keys.
How is the lock powered and serviced in normal use?
The CompX RegulatoR uses (2) AAA batteries with a battery life of 75,000 cycles and a low battery indicator, and its AAA battery compartment is accessible from the outside of the cabinet.
Choose This Lock For Keyless Cabinet Control
The CompX RegulatoR electronic push button cabinet lock, manual vertical version REG-M-V-1, provides keyless code entry for cabinet doors, drawers, lockers, and similar enclosures, so access is controlled without traditional keys. Its 7/16 inch cylinder length, 15/64 inch maximum material thickness rating, and 3/4 inch diameter mounting hole specification define the physical interface to the cabinet, guiding hole preparation and panel selection. The vertical mount with knob at the bottom, combined with satin nickel finish, suits many cabinet layouts where appearance and keypad ergonomics matter. With 20 codes per lock, 75,000 cycles battery life from (2) AAA batteries, an externally accessible AAA battery compartment, and low battery indicator, the lock supports ongoing use in busy storage areas. Select this CompX National electronic cabinet lock when a keyless, manual-rotation solution is needed for controlled cabinet access.
