This Schwinn Z078 recessed pull sits set into the door or drawer front rather than projecting from it, keeping the hardware plane-flush with the cabinetry for a clean, handle-free look that reads as contemporary millwork rather than applied hardware.
Unlike a surface-mounted bar pull that fastens through two drilled holes, a recessed pull requires a machined pocket routed into the door or drawer front. The pull drops into that opening, and two mounting screws secure it from the back. The result is a grip that sits within the face of the front rather than standing away from it. On this pull the routed pocket needs to accommodate the 4-3/16 inch overall length and allow the 11/16 inch depth of the pull body to seat fully. The two mounting holes land on 3-3/4 inch centers, the same standard spacing found across a wide range of cabinet programs, which simplifies integration into an existing layout when the pocket is cut to match.
The pull is cast in zamak, a zinc-aluminum alloy common in quality hardware for its dimensional consistency and ability to hold a crisp edge on a rectangular form. The Matte Black finish is a low-sheen surface that diffuses light evenly across the flat face of the pull rather than picking up a reflection. In a routed pocket where the pull is partly shadowed by the surrounding front, a matte surface reads more evenly than a polished one, which is a practical match for this mounting method as much as a style choice.
This pull is suited to contemporary kitchens, baths, and built-ins where the design intent is a flat, uninterrupted cabinet face. It is the hardware of choice on full-overlay slab doors and flat-panel fronts where a projecting pull would break the surface geometry the rest of the design is built on. It also works in tight clearance situations, such as a drawer stack where a projecting pull on a lower drawer would interfere with the front above it. Because the Z078 series carries a straightforward rectangular form, it integrates into both high-gloss lacquered cabinetry and matte-finish painted fronts without competing with the surface.

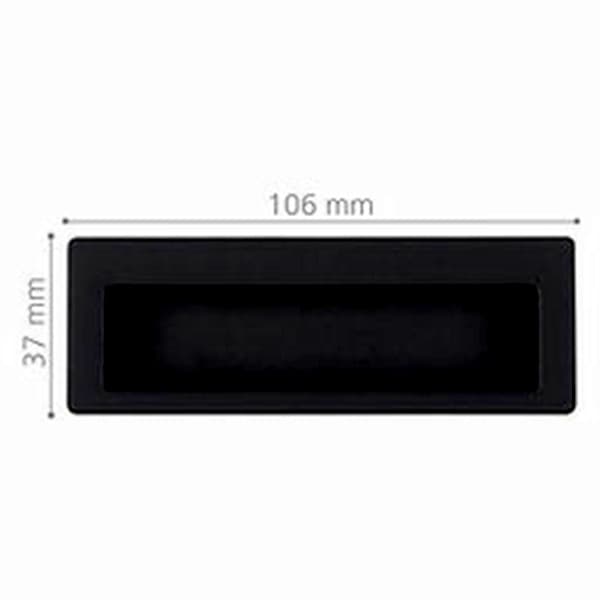

The pull body is 4-3/16 inches long, and the pocket depth needs to accommodate the 11/16 inch projection of the pull within the front's thickness. Confirm the pocket width and depth against the pull's full dimensions before routing.
Yes. The 3-3/4 inch spacing is a single standard and appears in catalog data as both 95 mm and 96 mm depending on how the manufacturer rounded the conversion. Both refer to the same hole pattern.
Yes. A recessed pull works on both doors and drawers as long as the front is thick enough to accept the routed pocket without breaking through the back face.
A matte surface diffuses light and is generally more forgiving of fingerprints and smudges than a polished finish of the same color.
Choose this pull when the cabinetry design calls for a grip that integrates into the front rather than one that stands away from it, and when a matte black finish is the right match for the room's existing hardware palette.
