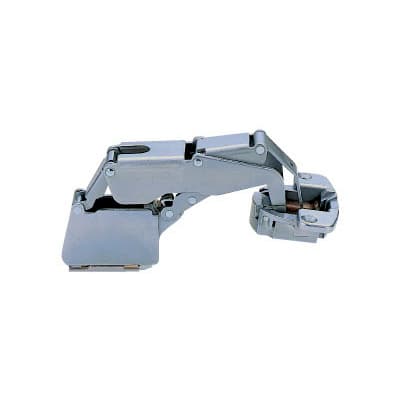

Sugatsune Free Swinging Inset Overlay Face-Frame;Frameless Thick Door Hinge Satin Chrome, 90° Screw-On - H160-34/0

Inset Concealed Hinge For Thick Cabinet Doors

Inset concealed hinge for thick doors is the role of the Sugatsune H160-34/0 hinge, providing an inset mounting solution for cabinet doors that fall within a specific heavy door range. The hinge is designed as a concealed cabinet hinge, so the hardware sits out of sight when the door is closed, helping projects maintain a clean cabinet look while still using a thick door construction. As a European concealed long arm hinge, it supports the type of hardware layout installers expect on higher-end cabinetry that uses modern cup-and-arm geometry. The hinge is specified for use as a free swinging inset overlay hinge on both face-frame and frameless thick doors, letting the same model serve across different carcass styles while keeping the concealed function consistent on a run of cabinets.

Key Hinge Details That Support Cabinet Work

• The H160 EUROPEAN HINGE INSET FS designation identifies this hinge as a European style inset hinge, so it fits projects that call for concealed hardware on inset cabinet doors while keeping a familiar European adjustment layout.
• A max. opening of 90 degree defines the swing range of the hinge, so doors stop at a right-angle opening that works well where adjacent cabinetry, walls, or equipment limit wider door arcs.
• The hinge supports door thickness from 33 to 40 mm, or 1-5/16 to 1-9/16 inches, so it can carry thicker door constructions without changing to an entirely different hinge family.
• The satin chrome finish on the hinge creates a neutral metallic appearance inside the cabinet, which blends with common hardware finishes while staying low profile behind the door.
• The H160-34/0 hinge belongs to the European thick door hinges category, aligning it with jobs that specifically specify thick door hardware in concealed applications.

Mounting And Screw-On Installation Details

This hinge is described as a 90 degree screw-on hinge, so the cup and arm fasten with screws in standard drill patterns instead of press-in components, simplifying installation on solid or composite thick doors. Its use as an inset concealed hinge aligns with inset door layouts, where the door edge sits flush with the cabinet frame or side, so cup boring and screw placement are planned around an inset reveal. The mounting plate specified for this hinge is SL100-04A-W-32, so the arm geometry is matched to that plate style to achieve the intended inset position on the cabinet. The hinge is identified for both face-frame and frameless thick door applications, allowing installers to use the same hardware line whether they are working on framed cabinetry or frameless carcasses.

How The H160-34/0 Hinge Fits Real Projects

Using This Hinge On Thick Inset Cabinet Doors

The H160-34/0 hinge is a concealed cabinet hinge designed for inset doors, so it supports door designs where the front sits level with the surrounding cabinet structure rather than overlaying it. Its classification under European concealed long arm hinges means it uses a recognizable arm style and motion path, which helps maintain consistent door action on runs that already rely on European hinge layouts. The door thickness window of 33 to 40 mm, or 1-5/16 to 1-9/16 inches, suits cabinet doors built from thicker stock or laminated assemblies, so the hinge geometry keeps those heavier edges aligned within the cabinet opening. Being part of the European thick door hinges category also signals that its clearances and cup depth are tuned for heavier sections, so boring depth and hinge positioning relate directly to that thicker door build.

Details That Support Consistent Swing And Alignment

The max. opening of 90 degree defines the door movement, so every door on a bank fitted with this hinge stops at the same right-angle position, supporting predictable interaction with adjacent cabinets and appliances. The hinge is specified as free swinging, so once set, the door moves smoothly through its range without built-in latching mechanisms in the hinge body, which suits layouts that rely on separate catches or magnetic closure hardware. Its satin chrome finish keeps the hinge visually neutral inside the cabinet, so service work or later adjustments remain straightforward without drawing attention to the hinge when doors are opened. The paired mounting plate model SL100-04A-W-32 aligns the hinge arm to the cabinet side or frame, so when installers use that plate, the inset position and door reveal match the design intent of the H160 EUROPEAN HINGE INSET FS configuration.

Common Questions About The Sugatsune H160-34/0 Hinge

Selecting This Hinge For Thick Inset Door Jobs

The Sugatsune H160-34/0 offers an inset concealed hinge for thick doors, so it fits projects that call for 33 to 40 mm thick inset cabinet doors with European hinge function. Its 90 degree screw-on configuration, satin chrome finish, and pairing with mounting plate SL100-04A-W-32 align it with both face-frame and frameless thick door cabinetry. For cabinet runs where concealed hardware, a defined 90 degree swing, and a thick door range are part of the design, this hinge provides a focused option built around those requirements.
